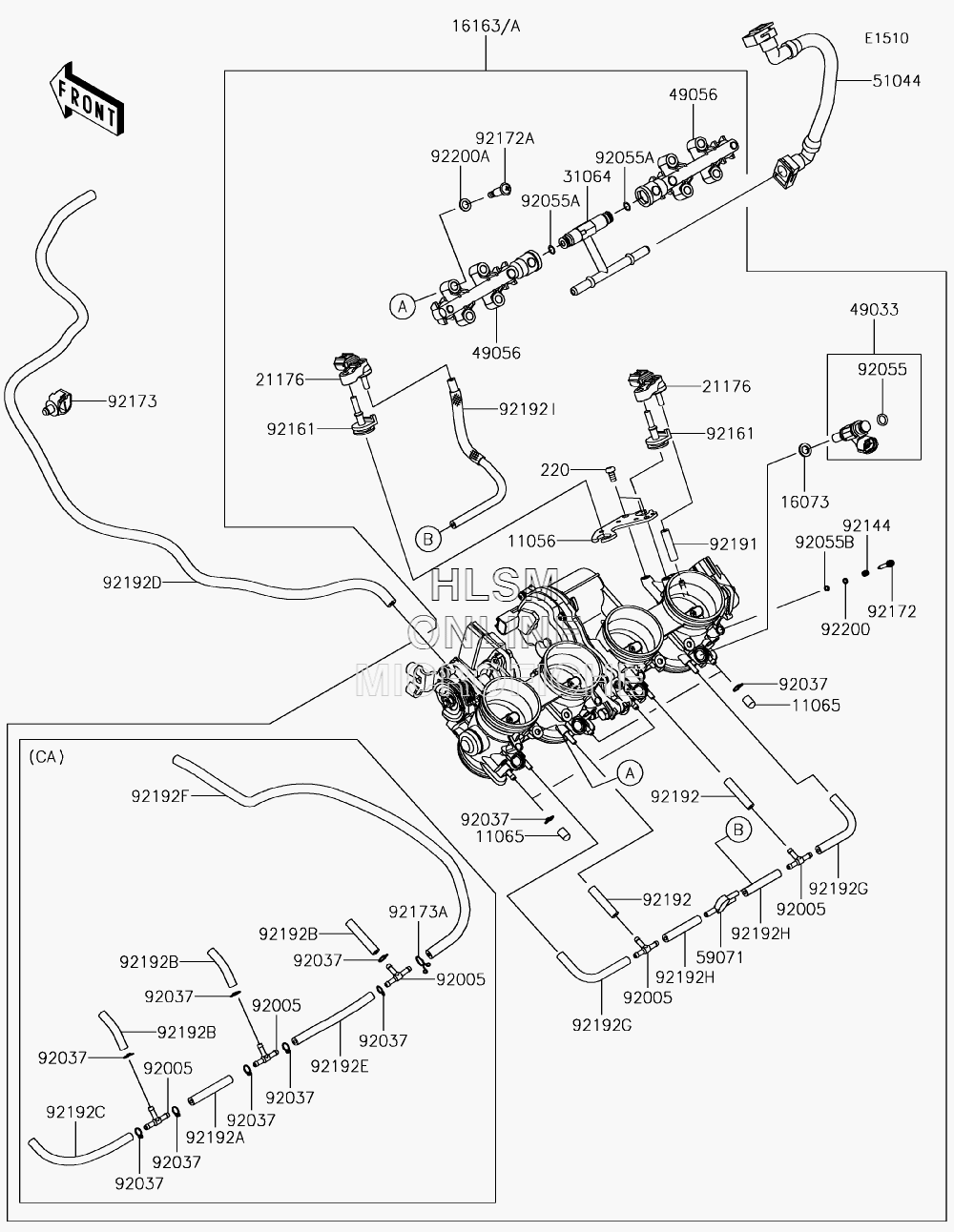

THROTTLE для Kawasaki NINJA ZX-10RR (ZX1000ZHF) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-7844 BRACKETBRACKET
-
1106511065-0072 CAP (CANADA ONLY)CAP (CANADA ONLY)
-
1607316073-0848 INSULATORINSULATOR
-
1616316163-0863 THROTTLE-ASSY (CALIF. ONLY)THROTTLE-ASSY (CALIF. ONLY)
-
16163A16163-0867 THROTTLE-ASSY (CANADA ONLY)THROTTLE-ASSY (CANADA ONLY)
-
2117621176-0111 SENSOR, PRESSURESENSOR, PRESSURE
-
220220AA0510 SCREW-PAN-CROS, 5X10SCREW-PAN-CROS, 5X10
-
3106431064-0686 PIPE-COMPPIPE-COMP
-
4903349033-0027 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0046 PIPE-INJECTIONPIPE-INJECTION
-
5104451044-0859 TUBE-ASSY, FUELTUBE-ASSY, FUEL
-
5907159071-0022 JOINTJOINT
-
9200592005-1380 FITTING (CANADA ONLY)FITTING (CANADA ONLY)
-
9200592005-1380 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9203792037-1124 CLAMP, TUBE (CANADA ONLY)CLAMP, TUBE (CANADA ONLY)
-
9203792037-1124 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9205592055-0124 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
92055A92055-0761 RING-ORING-O
-
92055B92055-0840 RING-ORING-O
-
9214492144-1674 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
9216192161-0673 DAMPERDAMPER
-
9217292172-0156 SCREWSCREW
-
92172A92172-0828 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
9217392173-0736 CLAMP, 12MM DIA.CLAMP, 12MM DIA.
-
92173A92173-1568 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9219192191-1550 TUBE, 3.2X7.4X30TUBE, 3.2X7.4X30
-
9219292192-1234 TUBE, 3.2X7.4X35TUBE, 3.2X7.4X35
-
92192A92192-1349 TUBE, 3.5X7.5X55 (CALIF. ONLY)TUBE, 3.5X7.5X55 (CALIF. ONLY)
-
92192B92192-1494 TUBE, 3.5X7.5X40 (CALIF. ONLY)TUBE, 3.5X7.5X40 (CALIF. ONLY)
-
92192C92192-1497 TUBE, 3.5X7.5X125 (CALIF. ONLY)TUBE, 3.5X7.5X125 (CALIF. ONLY)
-
92192D92192-1499 TUBETUBE
-
92192E92192-1521 TUBE, 3.5X7.5X100 (CALIF. ONLY)TUBE, 3.5X7.5X100 (CALIF. ONLY)
-
92192F92192-1612 TUBE, L=450 (CALIF. ONLY)TUBE, L=450 (CALIF. ONLY)
-
92192G92192-1616 TUBE, 3.2X7.4X85TUBE, 3.2X7.4X85
-
92192H92192-1617 TUBE, 3.2X7.4X45TUBE, 3.2X7.4X45
-
92192I92192-1618 TUBE, 3.2X7.4X200TUBE, 3.2X7.4X200
-
9220092200-1564 WASHER, PILOT AIR SCREWWASHER, PILOT AIR SCREW
-
92200A92200-3807 WASHERWASHER
