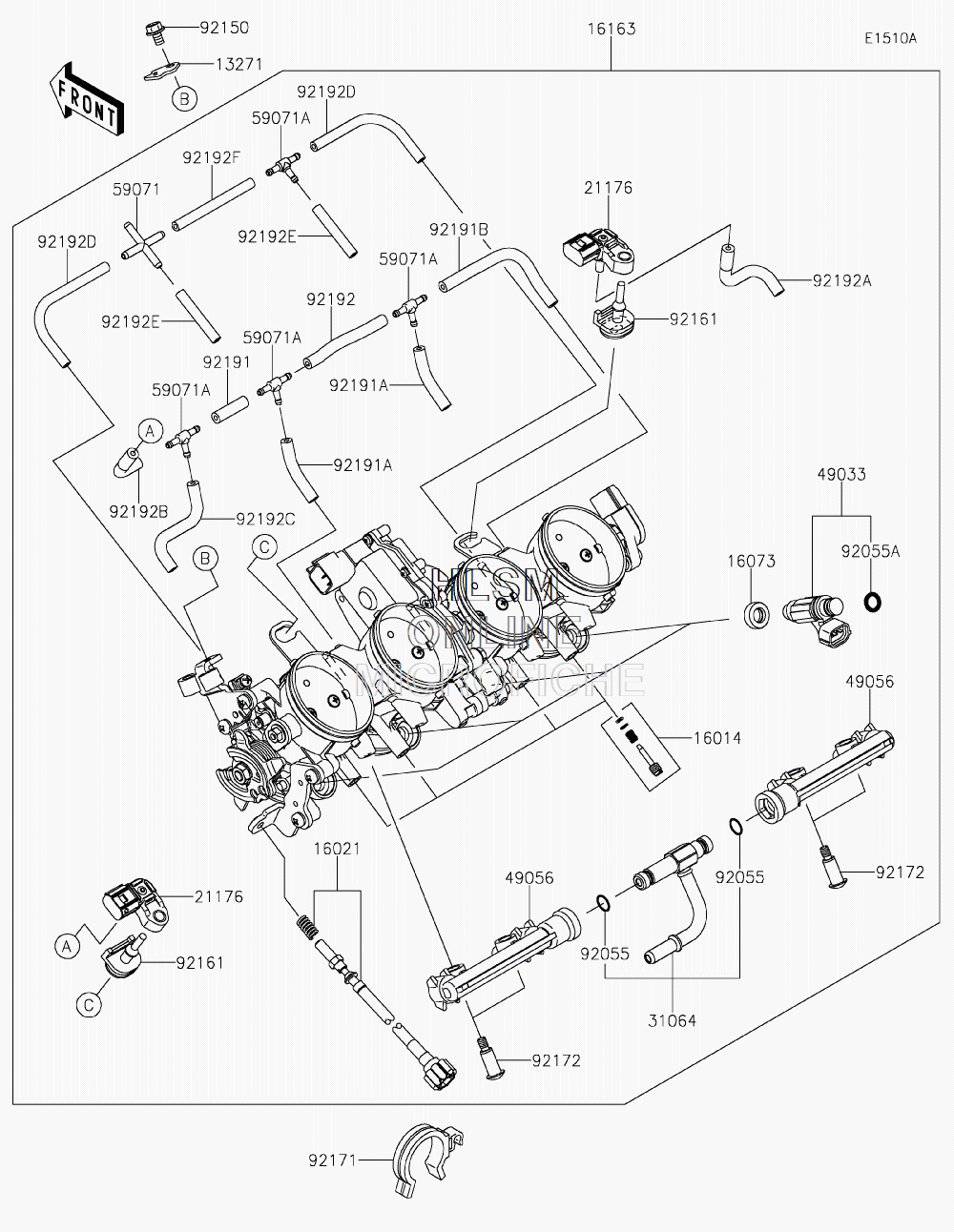

THROTTLE BODY ASSY (CAILF. ONLY) для Kawasaki NINJA ZX-6R ABS KRT EDITION (ZX636FHFA) - 2017 года выпуска
-
№АртикулНазвание
-
1327113271-0559 PLATEPLATE
-
1601416014-0002 SCREW-PILOT AIRSCREW-PILOT AIR
-
1602116021-0028 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-0773 THROTTLE-ASSYTHROTTLE-ASSY
-
2117621176-0111 SENSOR, PRESSURESENSOR, PRESSURE
-
3106431064-0622 PIPE-COMPPIPE-COMP
-
4903349033-0012 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0014 PIPE-INJECTIONPIPE-INJECTION
-
5907159071-0014 JOINT, 4WAYJOINT, 4WAY
-
59071A59071-3752 JOINT, 3WAY, TJOINT, 3WAY, T
-
9205592055-0064 RING-ORING-O
-
92055A92055-1622 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
9215092150-1406 BOLT, 5X8BOLT, 5X8
-
9216192161-0673 DAMPERDAMPER
-
9217192171-0359 CLAMPCLAMP
-
9217292172-0064 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
9219192191-0020 TUBE, 3X7X25TUBE, 3X7X25
-
92191A92191-0022 TUBE, 3X7X40TUBE, 3X7X40
-
92191B92191-0023 TUBE, 3X7X100TUBE, 3X7X100
-
9219292192-0739 TUBE, 3X7X72TUBE, 3X7X72
-
92192A92192-0840 TUBE, THROBO RIGHT HAND-SENSORTUBE, THROBO RIGHT HAND-SENSOR
-
92192B92192-0841 TUBE, THROBO LEFT HAND-JOINTTUBE, THROBO LEFT HAND-JOINT
-
92192C92192-0842 TUBE, SENSOR-JOINTTUBE, SENSOR-JOINT
-
92192D92192-1258 TUBE, 3X6X100TUBE, 3X6X100
-
92192E92192-1259 TUBE, 3X6X40TUBE, 3X6X40
-
92192F92192-1260 TUBE, 3X6X70TUBE, 3X6X70
