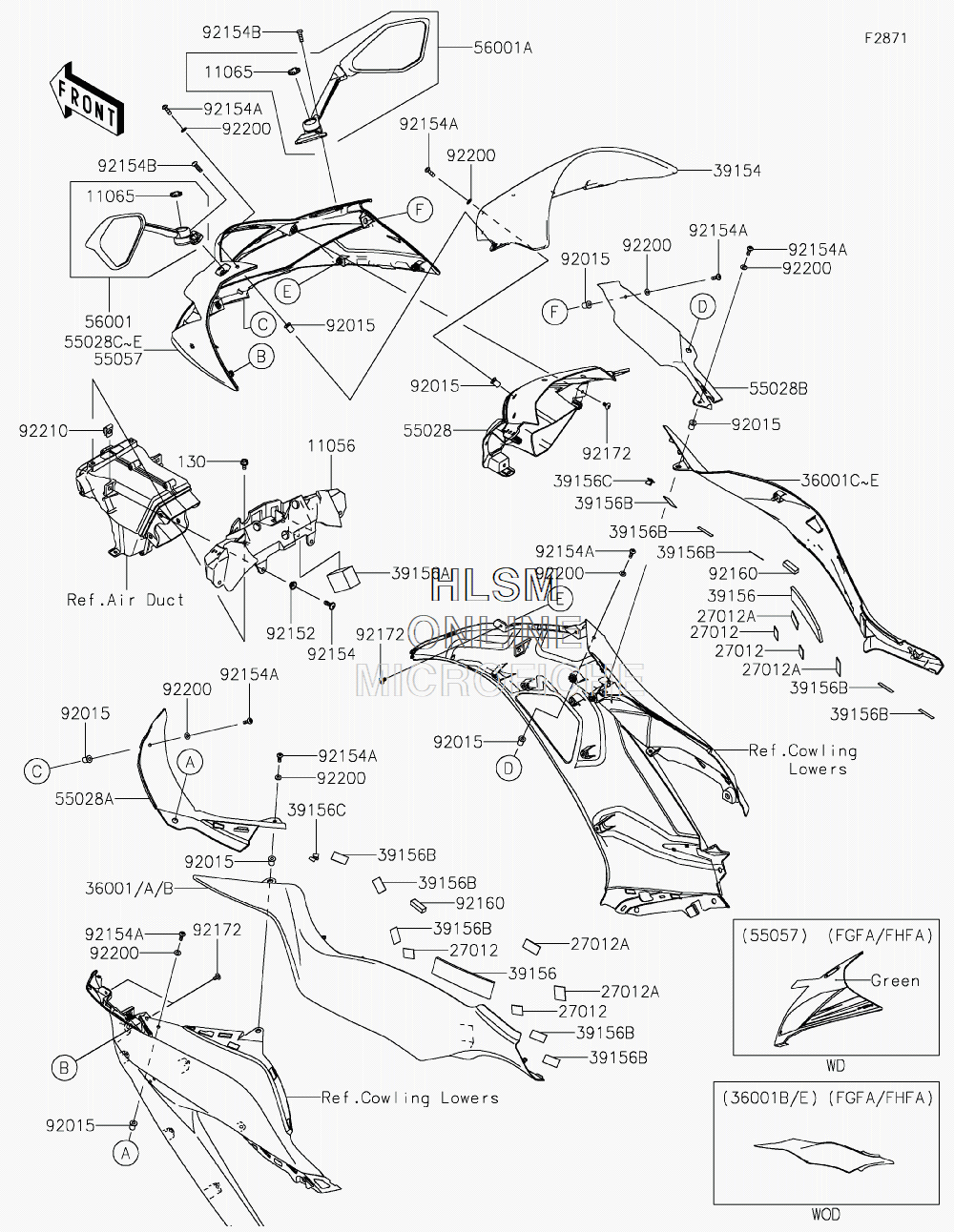

COWLING для Kawasaki NINJA ZX-6R ABS (ZX636FHF) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-1959 BRACKET, METERBRACKET, METER
-
1106511065-0945 CAP, MIRRORCAP, MIRROR
-
130130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
2701227012-0742 HOOK, 20X20X3.0HOOK, 20X20X3.0
-
27012A27012-0751 HOOKHOOK
-
36001A36001-0594-54X COVER-SIDE, LEFT HAND, (P.B.WHITE)COVER-SIDE, LEFT HAND, (P.B.WHITE)
-
36001D36001-0595-54X COVER-SIDE, RIGHT HAND, (P.B.WHITE)COVER-SIDE, RIGHT HAND, (P.B.WHITE)
-
3915439154-0030 WINDSHIELDWINDSHIELD
-
3915639156-0536 PADPAD
-
39156A39156-0976 PAD, 35X25X50PAD, 35X25X50
-
39156B39156-0979 PAD, 15X30X0.2PAD, 15X30X0.2
-
39156C39156-0980 PAD, 10X30X0.2PAD, 10X30X0.2
-
5502855028-0443 COWLING, UPPER, CENTERCOWLING, UPPER, CENTER
-
55028A55028-0454 COWLING, INNER, LEFT HANDCOWLING, INNER, LEFT HAND
-
55028B55028-0455 COWLING, INNER, RIGHT HANDCOWLING, INNER, RIGHT HAND
-
55028D55028-0506-54X COWLING, UPPER, (P.B.WHITE)COWLING, UPPER, (P.B.WHITE)
-
5600156001-0245 MIRROR-ASSY, LEFT HANDMIRROR-ASSY, LEFT HAND
-
56001A56001-0246 MIRROR-ASSY, RIGHT HANDMIRROR-ASSY, RIGHT HAND
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9215292152-0224 COLLARCOLLAR
-
9215492154-0139 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92154A92154-0209 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154B92154-0402 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
9216092160-1183 DAMPERDAMPER
-
9217292172-0262 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
-
9221092210-0130 NUTNUT
