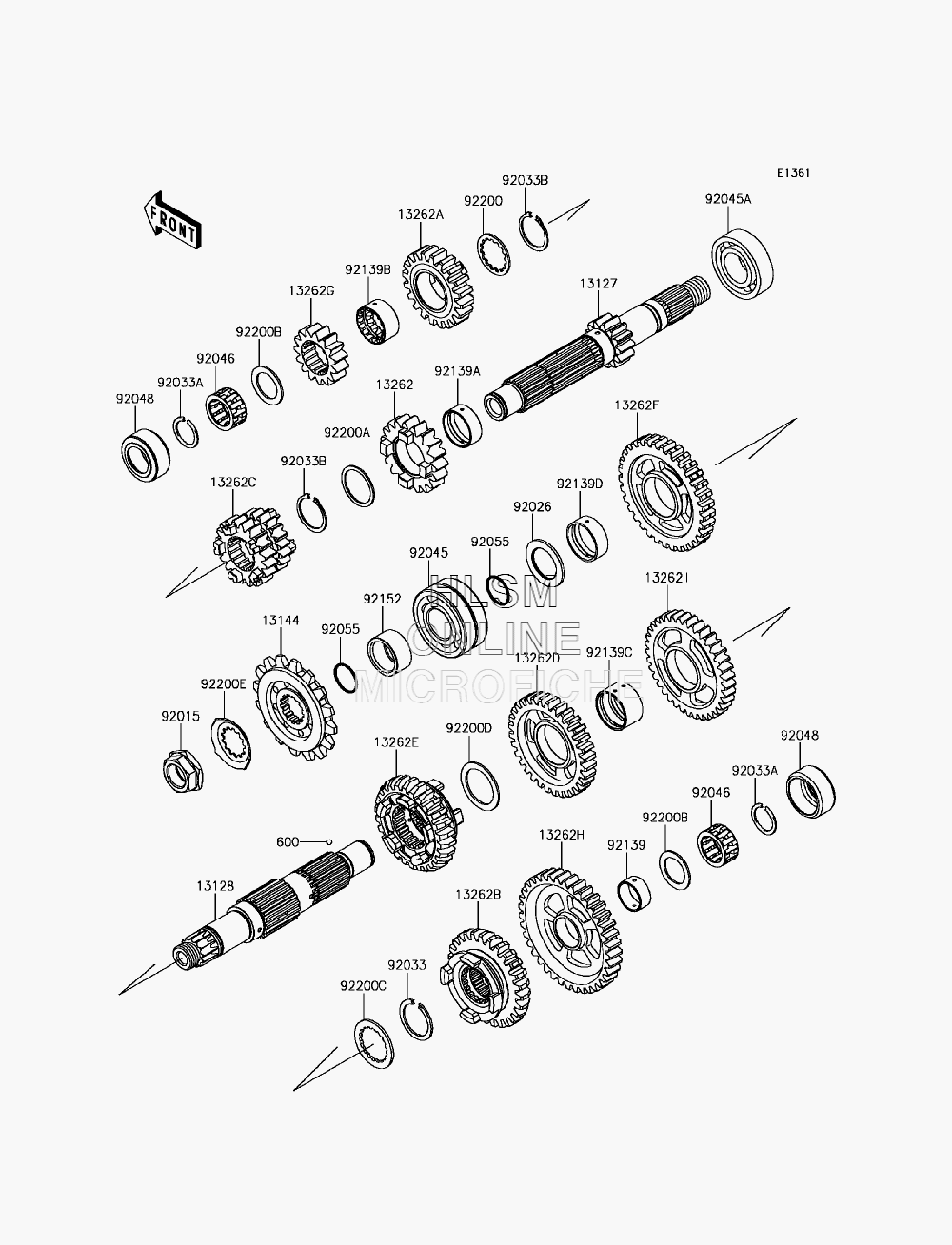

TRANSMISSION для Kawasaki NINJA ZX-6R KRT EDITION (ZX636EHFA) - 2017 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL-STEEL, 5/32BALL-STEEL, 5/32
-
1312713127-0647 SHAFT-TRANSMISSION INPUT, 13TSHAFT-TRANSMISSION INPUT, 13T
-
1312813128-0031 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0038 SPROCKET-OUTPUT, 16T, #520SPROCKET-OUTPUT, 16T, #520
-
1326213262-0374 GEAR, INPUT 5TH, 19TGEAR, INPUT 5TH, 19T
-
13262A13262-0375 GEAR, INPUT 6TH, 20TGEAR, INPUT 6TH, 20T
-
13262B13262-0380 GEAR, OUTPUT 5TH, 27TGEAR, OUTPUT 5TH, 27T
-
13262C13262-0506 GEAR, INPUT 3RD & 4TH, 20T & 20TGEAR, INPUT 3RD & 4TH, 20T & 20T
-
13262D13262-0510 GEAR, OUTPUT 4TH, 32TGEAR, OUTPUT 4TH, 32T
-
13262E13262-0582 GEAR, OUTPUT 6TH, 26TGEAR, OUTPUT 6TH, 26T
-
13262F13262-0743 GEAR, OUTPUT 2ND, 33TGEAR, OUTPUT 2ND, 33T
-
13262G13262-0950 GEAR, INPUT 2ND, 15TGEAR, INPUT 2ND, 15T
-
13262H13262-0951 GEAR, OUTPUT LOW, 37TGEAR, OUTPUT LOW, 37T
-
13262I13262-0963 GEAR, OUTPUT 3RD, 37TGEAR, OUTPUT 3RD, 37T
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202692026-1529 SPACER, 25.3X39X2.0SPACER, 25.3X39X2.0
-
9203392033-0047 RING-SNAP, 26.9X34X1.5RING-SNAP, 26.9X34X1.5
-
92033A92033-025 RING-SNAP, 20X25.5X1.2RING-SNAP, 20X25.5X1.2
-
92033B92033-1037 RING-SNAP, 25.9X30.6X1.2RING-SNAP, 25.9X30.6X1.2
-
9204592045-0003 BEARING-BALL, DAC2557NSSHBEARING-BALL, DAC2557NSSH
-
92045A92045-0058 BEARING-BALL, 25X52X15BEARING-BALL, 25X52X15
-
9204692046-1291 BEARING-NEEDLEBEARING-NEEDLE
-
9204892048-0007 RACE, 30X38X17.3RACE, 30X38X17.3
-
9205592055-1293 RING-O, 21.5X1.5RING-O, 21.5X1.5
-
9213992139-0038 BUSHING, GEAR, LOW OUTBUSHING, GEAR, LOW OUT
-
92139A92139-0161 BUSHING, GEAR, 5TH INBUSHING, GEAR, 5TH IN
-
92139B92139-0162 BUSHING, GEAR, 6TH INBUSHING, GEAR, 6TH IN
-
92139C92139-0163 BUSHING, GEAR, 3RD/4TH OUTBUSHING, GEAR, 3RD/4TH OUT
-
92139D92139-0164 BUSHING, GEAR, 2ND OUTBUSHING, GEAR, 2ND OUT
-
9215292152-0444 COLLAR, 25X32X15.7COLLAR, 25X32X15.7
-
9220092200-0050 WASHER, 28.3X34.0X1.6WASHER, 28.3X34.0X1.6
-
92200A92200-0051 WASHER, 28.1X34.0X1.2WASHER, 28.1X34.0X1.2
-
92200B92200-0138 WASHER, 22.1X32.0X1.4WASHER, 22.1X32.0X1.4
-
92200C92200-1277 WASHER, TOOTHED, 28X40X2WASHER, TOOTHED, 28X40X2
-
92200D92200-1278 WASHER, 29.9X40X1.5WASHER, 29.9X40X1.5
-
92200E92200-1720 WASHERWASHER
