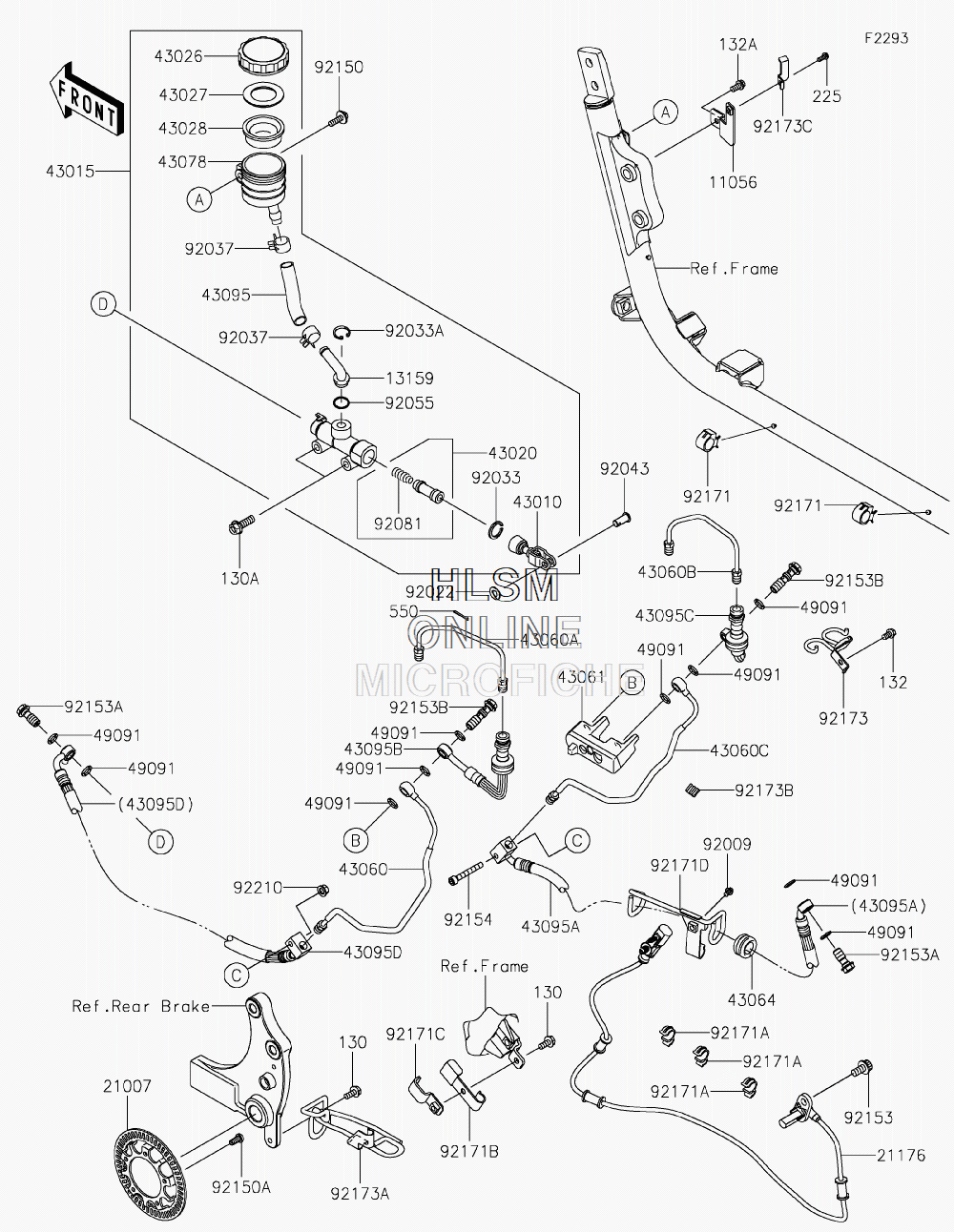

BRAKE - MASTER CYLINDER - REAR для Kawasaki VULCAN 1700 VAQUERO ABS (VN1700KHF) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-1051 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BB0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
132132BA0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
132A132BB0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
2100721007-0115 ROTOR, SPEED SENSORROTOR, SPEED SENSOR
-
2117621176-0104 SENSOR, SPEED, REARSENSOR, SPEED, REAR
-
225225AB0412 SCREW-PAN-WSP-CROS, 4X12SCREW-PAN-WSP-CROS, 4X12
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0081 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4306043060-0078 PIPE-BRAKE, (REAR M/CYLINDER)-(HU)PIPE-BRAKE, (REAR M/CYLINDER)-(HU)
-
43060A43060-0079 PIPE-BRAKE, (REAR M/CYLINDER)-(HU)PIPE-BRAKE, (REAR M/CYLINDER)-(HU)
-
43060B43060-0080 PIPE-BRAKE, (HU)-(REAR CALIPER)PIPE-BRAKE, (HU)-(REAR CALIPER)
-
43060C43060-0081 PIPE-BRAKE, (HU)-(REAR CALIPER)PIPE-BRAKE, (HU)-(REAR CALIPER)
-
4306143061-0006 JOINT-BRAKEJOINT-BRAKE
-
4306443064-007 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4307843078-1178 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0306 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0391 HOSE-BRAKE, (HU)-(REAR CALIPER)HOSE-BRAKE, (HU)-(REAR CALIPER)
-
43095B43095-0520 HOSE-BRAKE, (REAR M/CYLINDER)-(HU)HOSE-BRAKE, (REAR M/CYLINDER)-(HU)
-
43095C43095-0521 HOSE-BRAKE, (HU)-(REAR CALIPER)HOSE-BRAKE, (HU)-(REAR CALIPER)
-
43095D43095-0524 HOSE-BRAKE, (REAR M/CYLINDER)-(HU)HOSE-BRAKE, (REAR M/CYLINDER)-(HU)
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9200992009-1661 SCREW, 6X10SCREW, 6X10
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215092150-1339 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
92150A92150-1836 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215392153-0327 BOLT, SOCKET, 8X16BOLT, SOCKET, 8X16
-
92153A92153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153B92153-1438 BOLT, OIL, L=37BOLT, OIL, L=37
-
9215492154-0134 BOLT, SOCKET, 6X45BOLT, SOCKET, 6X45
-
9217192171-1424 CLAMP, 15MM DIA.CLAMP, 15MM DIA.
-
92171A92171-1819 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171B92171-1826 CLAMPCLAMP
-
92171C92171-1827 CLAMPCLAMP
-
92171D92171-1828 CLAMPCLAMP
-
9217392173-0099 CLAMP, REAR BRAKE HOSECLAMP, REAR BRAKE HOSE
-
92173A92173-0138 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92173B92173-0181 CLAMPCLAMP
-
92173C92173-0743 CLAMPCLAMP
-
9221092210-0630 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
