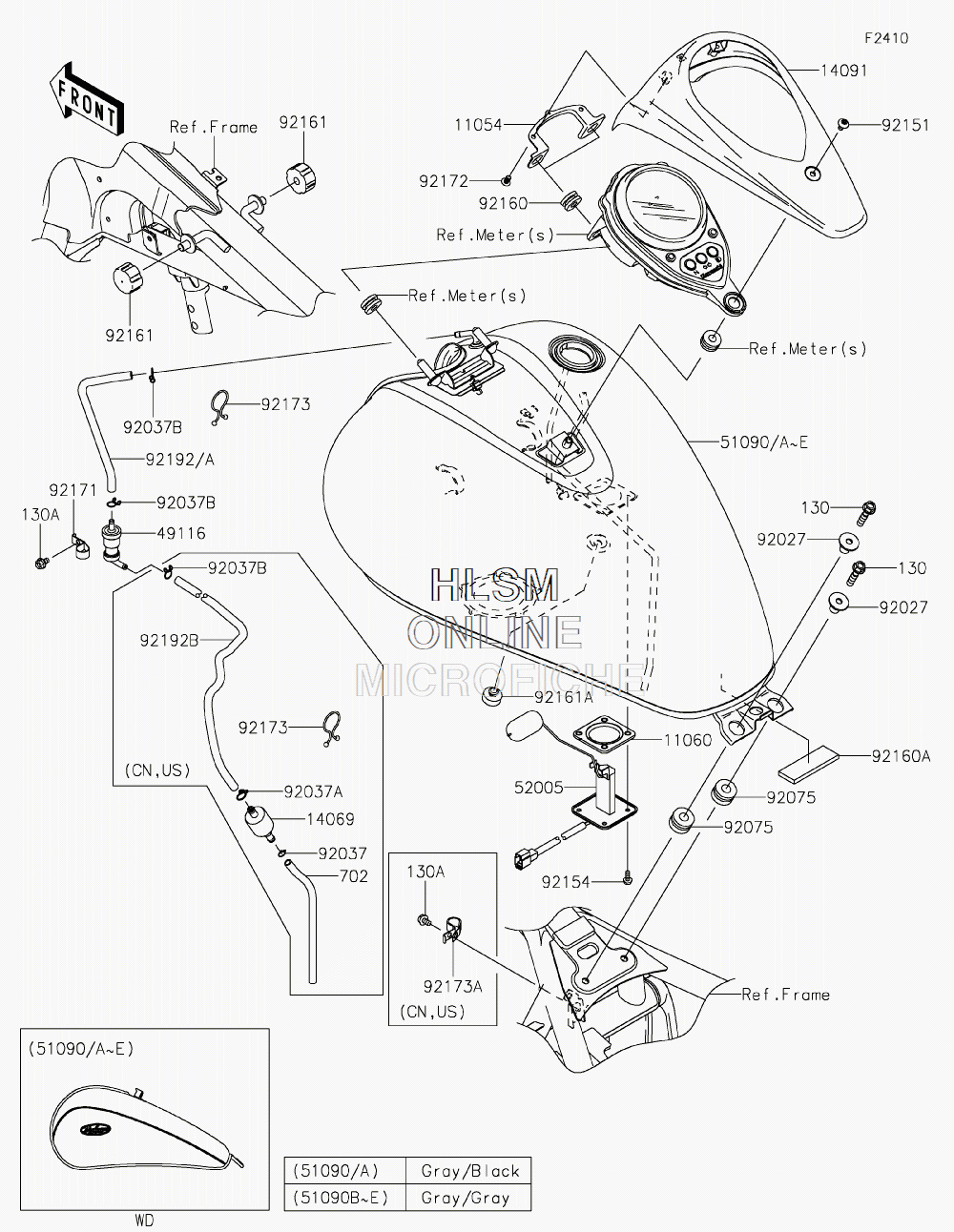

FUEL TANK для Kawasaki VULCAN 900 CLASSIC (VN900BHF) - 2017 года выпуска
-
№АртикулНазвание
-
1105411054-0034 BRACKET, METER, FRONTBRACKET, METER, FRONT
-
1106011060-1952 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
130130BA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130A130BB0610 BOLT-FLANGED, 6X10 (EXCEPT CALIF.)BOLT-FLANGED, 6X10 (EXCEPT CALIF.)
-
130A130BB0610 BOLT-FLANGED, 6X10 (CALIF. ONLY)BOLT-FLANGED, 6X10 (CALIF. ONLY)
-
1406914069-1004 BREATHER, FUEL TANK (EXCEPT CALIF.)BREATHER, FUEL TANK (EXCEPT CALIF.)
-
1409114091-1730-H8 COVER, METER, (EBONY)COVER, METER, (EBONY)
-
4911649116-0014 VALVE-ASSY, CHECKVALVE-ASSY, CHECK
-
5109051090-5028-46B TANK-COMP-FUEL, (M.G.GRAY+BLACK) (EXCEPT CALIF.)TANK-COMP-FUEL, (M.G.GRAY+BLACK) (EXCEPT CALIF.)
-
51090A51090-5049-46B TANK-COMP-FUEL, (M.G.GRAY+BLACK) (CALIF. ONLY)TANK-COMP-FUEL, (M.G.GRAY+BLACK) (CALIF. ONLY)
-
5200552005-0718 GAUGE, FUELGAUGE, FUEL
-
702702A06200 TUBE-RUBBER, 6X200 (EXCEPT CALIF.)TUBE-RUBBER, 6X200 (EXCEPT CALIF.)
-
9202792027-1780 COLLAR, L=19.3COLLAR, L=19.3
-
9203792037-010 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92037A92037-1104 CLAMP, HOSE (EXCEPT CALIF.)CLAMP, HOSE (EXCEPT CALIF.)
-
92037B92037-147 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92037B92037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9207592075-1736 DAMPERDAMPER
-
9215192151-1940 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9215492154-1856 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
9216092160-1162 DAMPERDAMPER
-
92160A92160-1323 DAMPERDAMPER
-
9216192161-0293 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161A92161-1065 DAMPERDAMPER
-
9217192171-0595 CLAMPCLAMP
-
9217292172-0006 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
9217392173-0848 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217392173-0848 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
92173A92173-0925 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
9219292192-1107 TUBE, BREATHER, L=220 (EXCEPT CALIF.)TUBE, BREATHER, L=220 (EXCEPT CALIF.)
-
92192A92192-1108 TUBE, BREATHER, BLUE, L=220 (CALIF. ONLY)TUBE, BREATHER, BLUE, L=220 (CALIF. ONLY)
-
92192B92192-1129 TUBE, 5X10X500/350 (EXCEPT CALIF.)TUBE, 5X10X500/350 (EXCEPT CALIF.)
