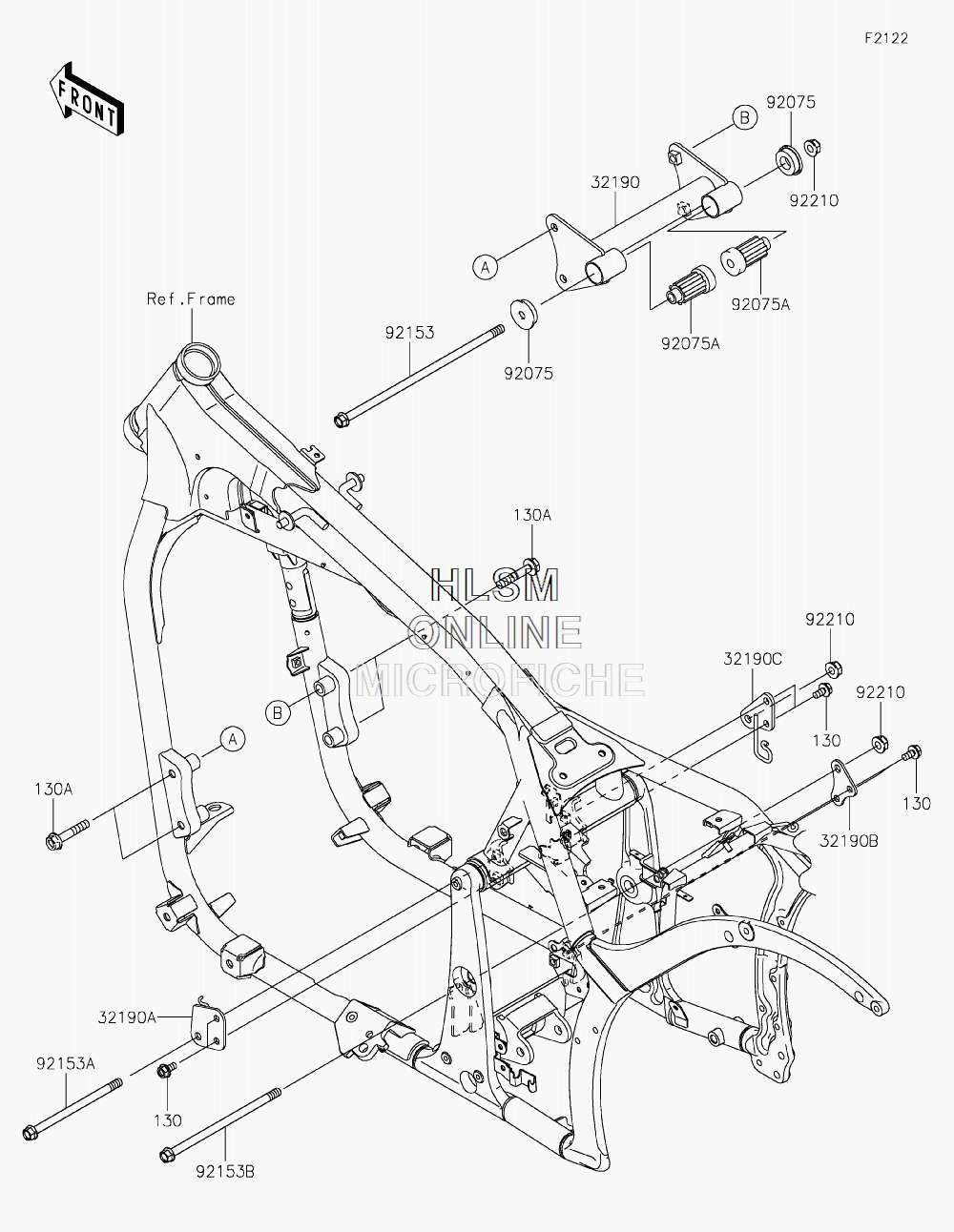

ENGINE MOUNT для Kawasaki VULCAN 900 CUSTOM (VN900CHF) - 2017 года выпуска
-
№АртикулНазвание
-
130130BB0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130A130BB1055 BOLT-FLANGED, 10X55BOLT-FLANGED, 10X55
-
3219032190-0229-18R BRACKET-ENGINE, FRONT, (F.S.BLACK)BRACKET-ENGINE, FRONT, (F.S.BLACK)
-
32190A32190-0274 BRACKET-ENGINE, REAR, LEFT HAND, UPPERBRACKET-ENGINE, REAR, LEFT HAND, UPPER
-
32190B32190-0275 BRACKET-ENGINE, REAR, RIGHT HAND, LOWERBRACKET-ENGINE, REAR, RIGHT HAND, LOWER
-
32190C32190-0276 BRACKET-ENGINE, REAR, RIGHT HAND, UPPERBRACKET-ENGINE, REAR, RIGHT HAND, UPPER
-
9207592075-1738 DAMPER, ENGINE MOUNTDAMPER, ENGINE MOUNT
-
92075A92075-1739 DAMPER, ENGINE MOUNT, MAINDAMPER, ENGINE MOUNT, MAIN
-
9215392153-1909 BOLT, FLANGED, 10X285BOLT, FLANGED, 10X285
-
92153A92153-1910 BOLT, FLANGED, 10X158BOLT, FLANGED, 10X158
-
92153B92153-1911 BOLT, FLANGED, 10X198BOLT, FLANGED, 10X198
-
9221092210-1081 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
