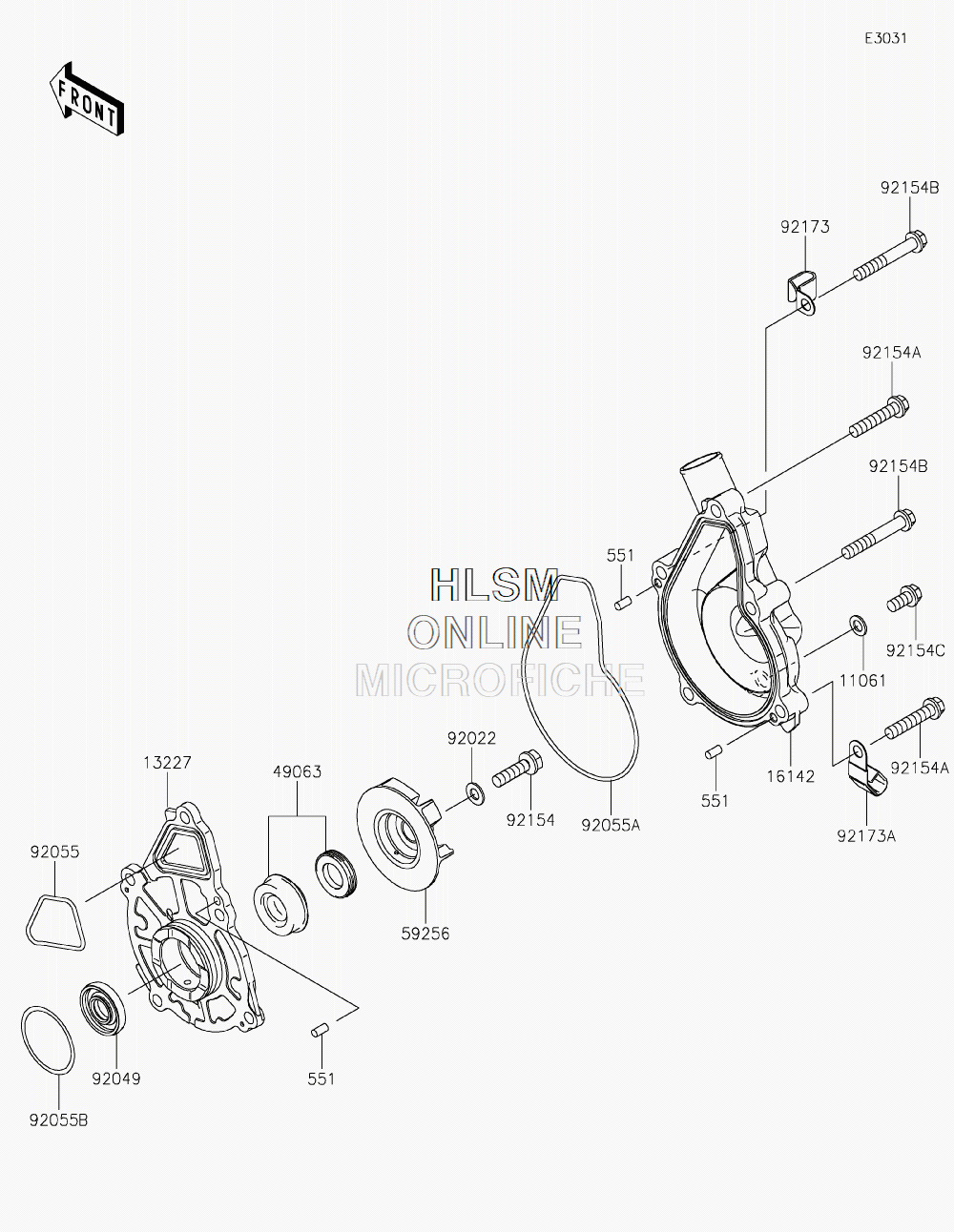

WATER PUMP для Kawasaki VULCAN S ABS CAFE (EN650EHF) - 2017 года выпуска
-
№АртикулНазвание
-
1106111061-0107 GASKETGASKET
-
1322713227-0038 HOUSINGHOUSING
-
1614216142-0741 COVER-PUMPCOVER-PUMP
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
5925659256-0009 IMPELLERIMPELLER
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9204992049-0791 SEAL-OIL, 12X28.55X5SEAL-OIL, 12X28.55X5
-
9205592055-0082 RING-O, CASE-HOUSINGRING-O, CASE-HOUSING
-
92055A92055-0083 RING-O, HOUSING-PUMP COVERRING-O, HOUSING-PUMP COVER
-
92055B92055-1155 RING-O, 33.2MMRING-O, 33.2MM
-
9215492154-1069 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
92154A92154-1773 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154B92154-1774 BOLT, FLANGED, 6X40BOLT, FLANGED, 6X40
-
92154C92154-1777 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9217392173-0082 CLAMPCLAMP
-
92173A92173-1368 CLAMP, HARNESSCLAMP, HARNESS
