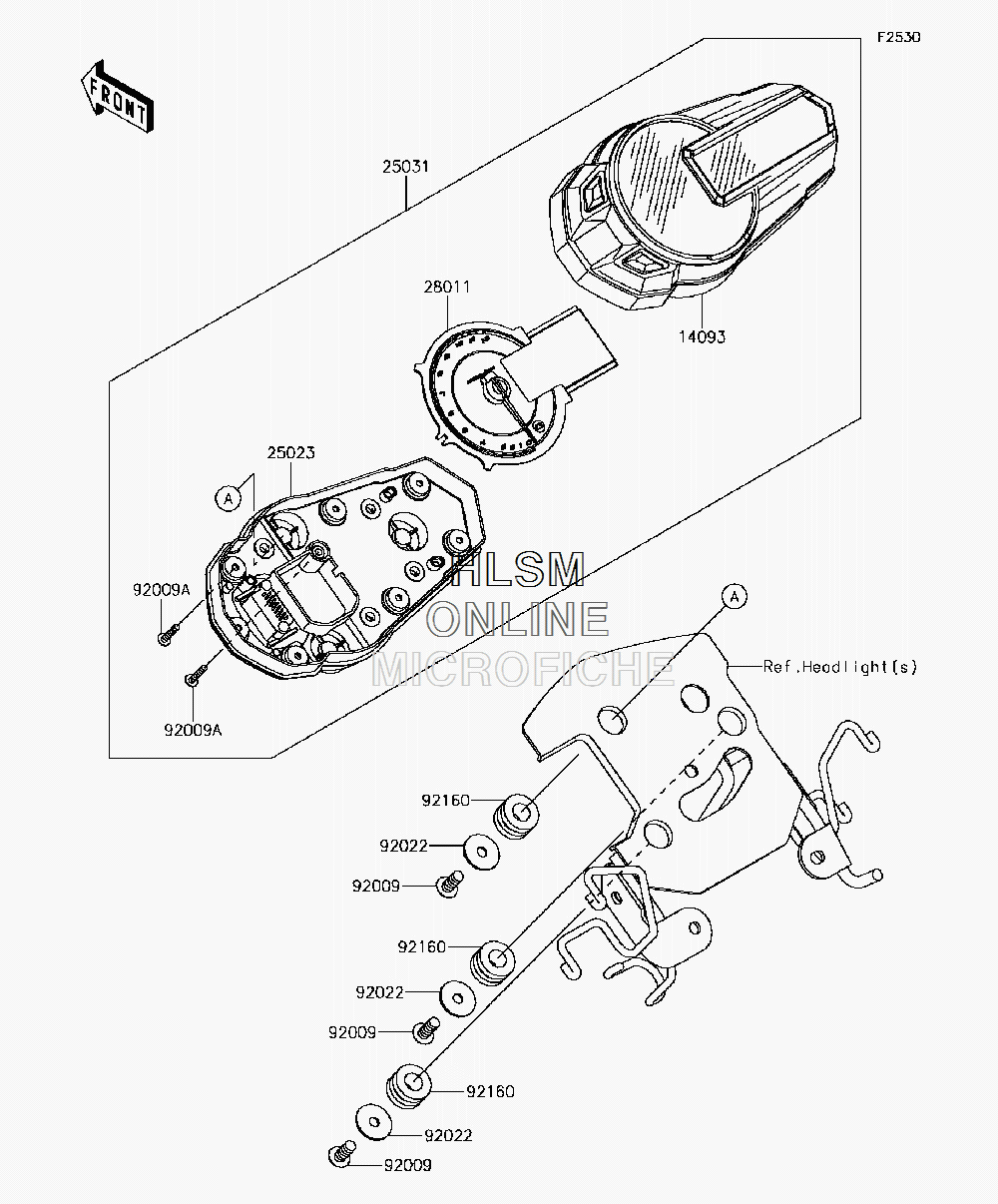

METER(S) для Kawasaki Z125 PRO (BR125JHF) - 2017 года выпуска
-
№АртикулНазвание
-
1409314093-0470 COVERCOVER
-
2502325023-0122 COVER-METER CASECOVER-METER CASE
-
2503125031-0650 METER-ASSY, COMBINATIONMETER-ASSY, COMBINATION
-
2801128011-0656 METER, TA & LCDMETER, TA & LCD
-
9200992009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
92009A92009-1391 SCREW, TAPPING, 3X16SCREW, TAPPING, 3X16
-
9202292022-1405 WASHER, 5.5X20X1.2WASHER, 5.5X20X1.2
-
9216092160-1167 DAMPER, 10X20X12DAMPER, 10X20X12
