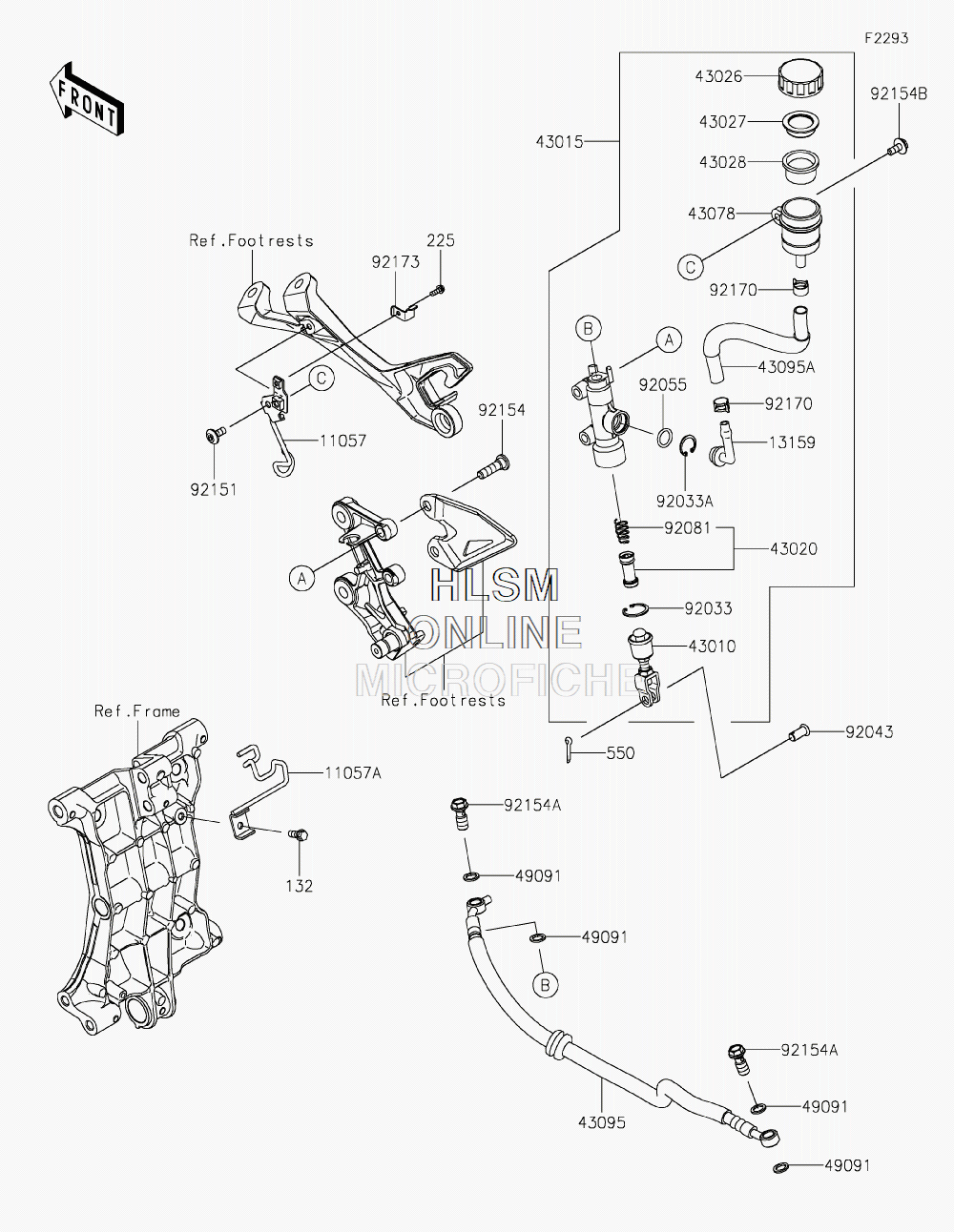

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA 400 (EX400HJFA) - 2018 года выпуска
-
№АртикулНазвание
-
1105711057-1101 BRACKET, REAR RESERVOIRBRACKET, REAR RESERVOIR
-
11057A11057-1105 BRACKET, PIVOT BRACKETBRACKET, PIVOT BRACKET
-
1315913159-1056 CONNECTORCONNECTOR
-
132132BC0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
225225AB0412 SCREW-PAN-WSP-CROS, 4X12SCREW-PAN-WSP-CROS, 4X12
-
4301043010-0022 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0667 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-0023 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4307843078-0040 RESERVOIRRESERVOIR
-
4309543095-1492 HOSE-BRAKE, REAR M/CYL.-REAR CAL.HOSE-BRAKE, REAR M/CYL.-REAR CAL.
-
43095A43095-1495 HOSE-BRAKE, REAR RESERVOIRHOSE-BRAKE, REAR RESERVOIR
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0904 PINPIN
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215492154-0843 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92154A92154-1712 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
92154B92154-2244 BOLT, UPSET-WP, 6X16BOLT, UPSET-WP, 6X16
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217392173-0028 CLAMP, RESERVOIR TANK CAPCLAMP, RESERVOIR TANK CAP
