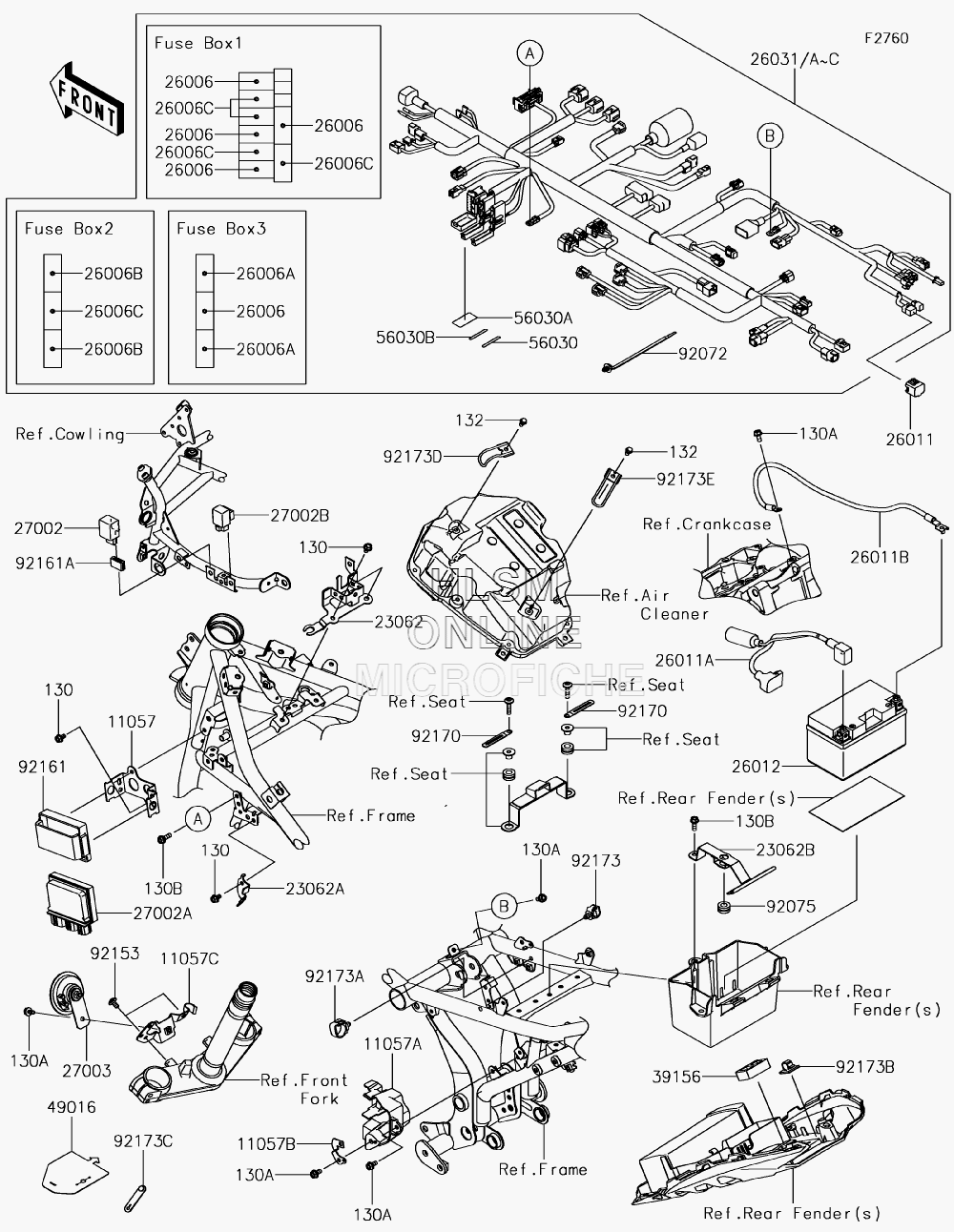

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 650 ABS KRT EDITION (EX650KJFA) - 2018 года выпуска
-
№АртикулНазвание
-
1105711057-0122 BRACKET, RELAY BOXBRACKET, RELAY BOX
-
11057A11057-0137 BRACKET, MAGNETIC SW.BRACKET, MAGNETIC SW.
-
11057B11057-0138 BRACKET, COUPLERBRACKET, COUPLER
-
11057C11057-0184 BRACKET, HORNBRACKET, HORN
-
130130BA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130B130BA0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
132132BA0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
2306223062-0875 BRACKET-COMP, VD SENSORBRACKET-COMP, VD SENSOR
-
23062A23062-0882 BRACKET-COMP, FUSE BOXBRACKET-COMP, FUSE BOX
-
23062B23062-0899 BRACKET-COMP, BATTERYBRACKET-COMP, BATTERY
-
2600626006-0001 FUSE, MINI BLADE, 15A, (BLUE)FUSE, MINI BLADE, 15A, (BLUE)
-
26006A26006-0020 FUSE, MINI BLADE, 25A, (NATURAL)FUSE, MINI BLADE, 25A, (NATURAL)
-
26006B26006-1077 FUSE, MINI BLADE, 5A, (TAN)FUSE, MINI BLADE, 5A, (TAN)
-
26006C26006-1078 FUSE, MINI BLADE, 10A, (RED)FUSE, MINI BLADE, 10A, (RED)
-
2601126011-0275 WIRE-LEAD, CONNECTOR COVERWIRE-LEAD, CONNECTOR COVER
-
26011A26011-0980 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011B26011-0981 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
2601226012-0564 BATTERY, YTZ10S, 12V 8.6AHBATTERY, YTZ10S, 12V 8.6AH
-
26031B26031-2330 HARNESS, MAIN (CALIF. ONLY)HARNESS, MAIN (CALIF. ONLY)
-
26031C26031-2331 HARNESS, MAIN (EXCEPT CALIF.)HARNESS, MAIN (EXCEPT CALIF.)
-
2700227002-0006 RELAY-ASSY, SIGNAL LAMPRELAY-ASSY, SIGNAL LAMP
-
27002A27002-0025 RELAY-ASSY, BOXRELAY-ASSY, BOX
-
27002B27002-1062 RELAY-ASSYRELAY-ASSY
-
2700327003-0065 HORNHORN
-
3915639156-2136 PAD, CONNECTORPAD, CONNECTOR
-
4901649016-0645 COVER-SEALCOVER-SEAL
-
5603056030-0400 LABEL, FUSE BOX3LABEL, FUSE BOX3
-
56030A56030-0705 LABEL, FUSE BOX1LABEL, FUSE BOX1
-
56030B56030-0879 LABEL, FUSE BOX2LABEL, FUSE BOX2
-
9207292072-1414 BAND, OS170-FT7 (BLACK)BAND, OS170-FT7 (BLACK)
-
9207592075-1880 DAMPERDAMPER
-
9215392153-1948 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9216192161-0203 DAMPER, RELAY BOXDAMPER, RELAY BOX
-
92161A92161-1443 DAMPER, 15X25X8.5DAMPER, 15X25X8.5
-
9217092170-1514 CLAMPCLAMP
-
9217392173-0736 CLAMP, 12MM DIA.CLAMP, 12MM DIA.
-
92173A92173-0861 CLAMPCLAMP
-
92173B92173-1055 CLAMP, DRAINCLAMP, DRAIN
-
92173C92173-1229 CLAMP, RUBBER PLATECLAMP, RUBBER PLATE
-
92173D92173-1586 CLAMP, A/C CASE, FRONTCLAMP, A/C CASE, FRONT
-
92173E92173-1587 CLAMP, A/C CASE, REARCLAMP, A/C CASE, REAR
