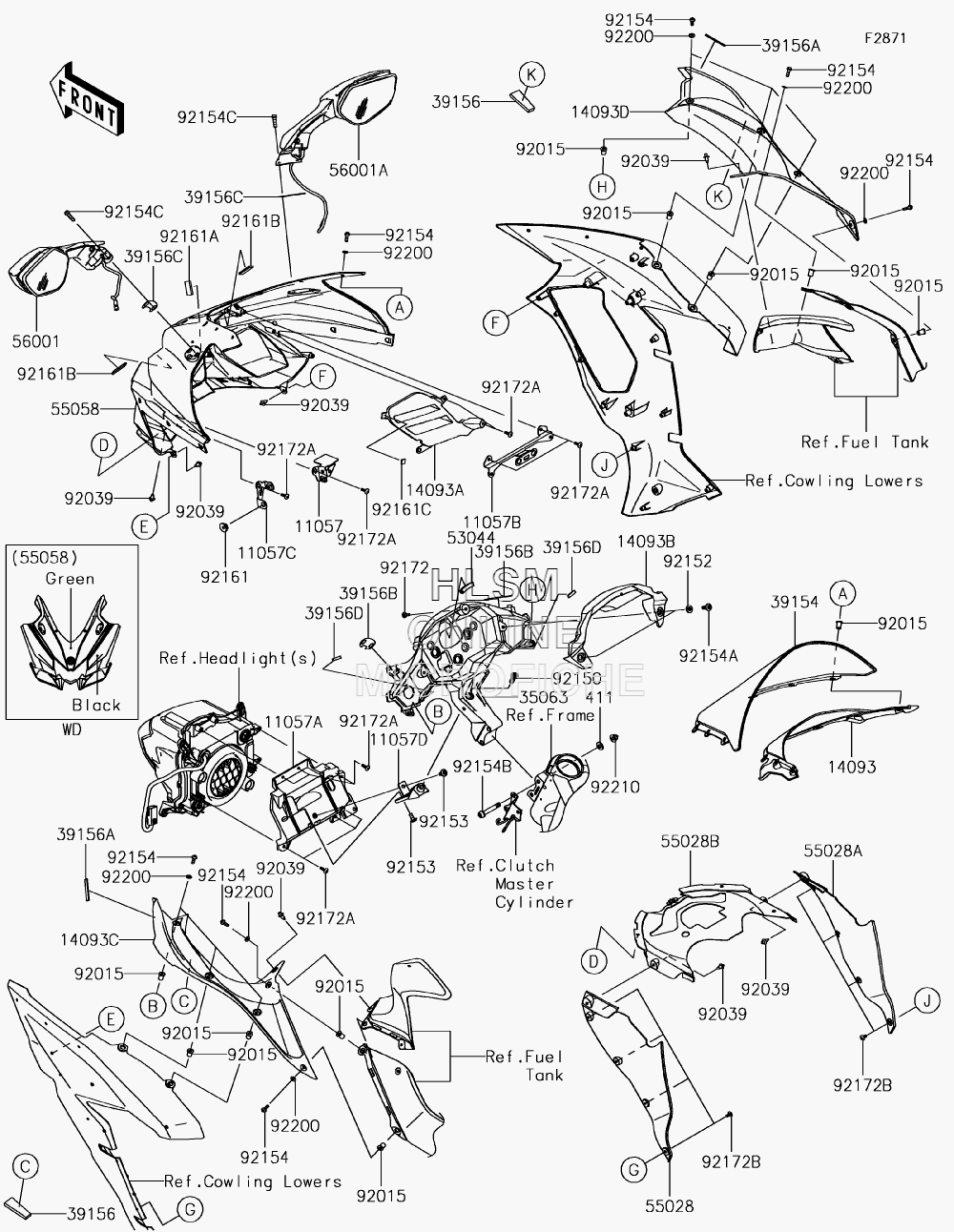

COWLING для Kawasaki NINJA H2 SX SE (ZX1002BJF) - 2018 года выпуска
-
№АртикулНазвание
-
1105711057-1288 BRACKET, UPPER COWL., LEFT HANDBRACKET, UPPER COWL., LEFT HAND
-
11057A11057-1289 BRACKET, HEAD LAMPBRACKET, HEAD LAMP
-
11057B11057-1294 BRACKET, HEAD LAMPBRACKET, HEAD LAMP
-
11057C11057-1295 BRACKET, SIDE COWL., LEFT HAND, UPPERBRACKET, SIDE COWL., LEFT HAND, UPPER
-
11057D11057-1448 BRACKET, STAY CONNECTBRACKET, STAY CONNECT
-
1409314093-0664 COVER, METER VISORCOVER, METER VISOR
-
14093A14093-0665 COVER, DUCTCOVER, DUCT
-
14093B14093-0722 COVER, METER, SECOVER, METER, SE
-
14093C14093-0765 COVER, INNER FAIRING, LEFT HANDCOVER, INNER FAIRING, LEFT HAND
-
14093D14093-0766 COVER, INNER FAIRING, RIGHT HANDCOVER, INNER FAIRING, RIGHT HAND
-
3506335063-1417 STAY, METERSTAY, METER
-
3915439154-0372 WINDSHIELD, LARGEWINDSHIELD, LARGE
-
3915639156-2318 PAD, 25X60X8PAD, 25X60X8
-
39156A39156-2319 PAD, 6X50X2PAD, 6X50X2
-
39156B39156-2320 PAD, MIRROR MOUNT, LEFT HANDPAD, MIRROR MOUNT, LEFT HAND
-
39156C39156-2321 PAD, MIRROR MOUNTPAD, MIRROR MOUNT
-
39156D39156-2322 PAD, 5X22X2PAD, 5X22X2
-
411411AA0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
5304453044-0634 TRIM, L=34MMTRIM, L=34MM
-
5502855028-0653 COWLING, SIDE COWL., INNER, LEFT HANDCOWLING, SIDE COWL., INNER, LEFT HAND
-
55028A55028-0654 COWLING, SIDE COWL., INNER, RIGHT HANDCOWLING, SIDE COWL., INNER, RIGHT HAND
-
55028B55028-0655 COWLING, UPPER COWL., INNERCOWLING, UPPER COWL., INNER
-
5505855058-5067-62F COWLING, UPPER, (M.D.BLACK+GREEN)COWLING, UPPER, (M.D.BLACK+GREEN)
-
5600156001-0382 MIRROR-ASSY, LEFT HAND, SIGNALMIRROR-ASSY, LEFT HAND, SIGNAL
-
56001A56001-0383 MIRROR-ASSY, RIGHT HAND, SIGNALMIRROR-ASSY, RIGHT HAND, SIGNAL
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-0068 RIVETRIVET
-
9215092150-1837 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9215292152-2495 COLLAR, 6.5X16X4.6COLLAR, 6.5X16X4.6
-
9215392153-1021 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215492154-0209 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154A92154-1694 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92154B92154-1710 BOLT, SOCKET, 8X52BOLT, SOCKET, 8X52
-
92154C92154-2736 BOLT, SOCKET, 6X22, MECBOLT, SOCKET, 6X22, MEC
-
9216192161-1531 DAMPERDAMPER
-
92161A92161-1835 DAMPER, 10X30X10DAMPER, 10X30X10
-
92161B92161-2119 DAMPER, 10X50X3DAMPER, 10X50X3
-
92161C92161-2121 DAMPER, 10X10X2DAMPER, 10X10X2
-
9217292172-0175 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92172A92172-0238 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92172B92172-0335 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
-
9221092210-1132 NUT, CAP, 8MMNUT, CAP, 8MM
