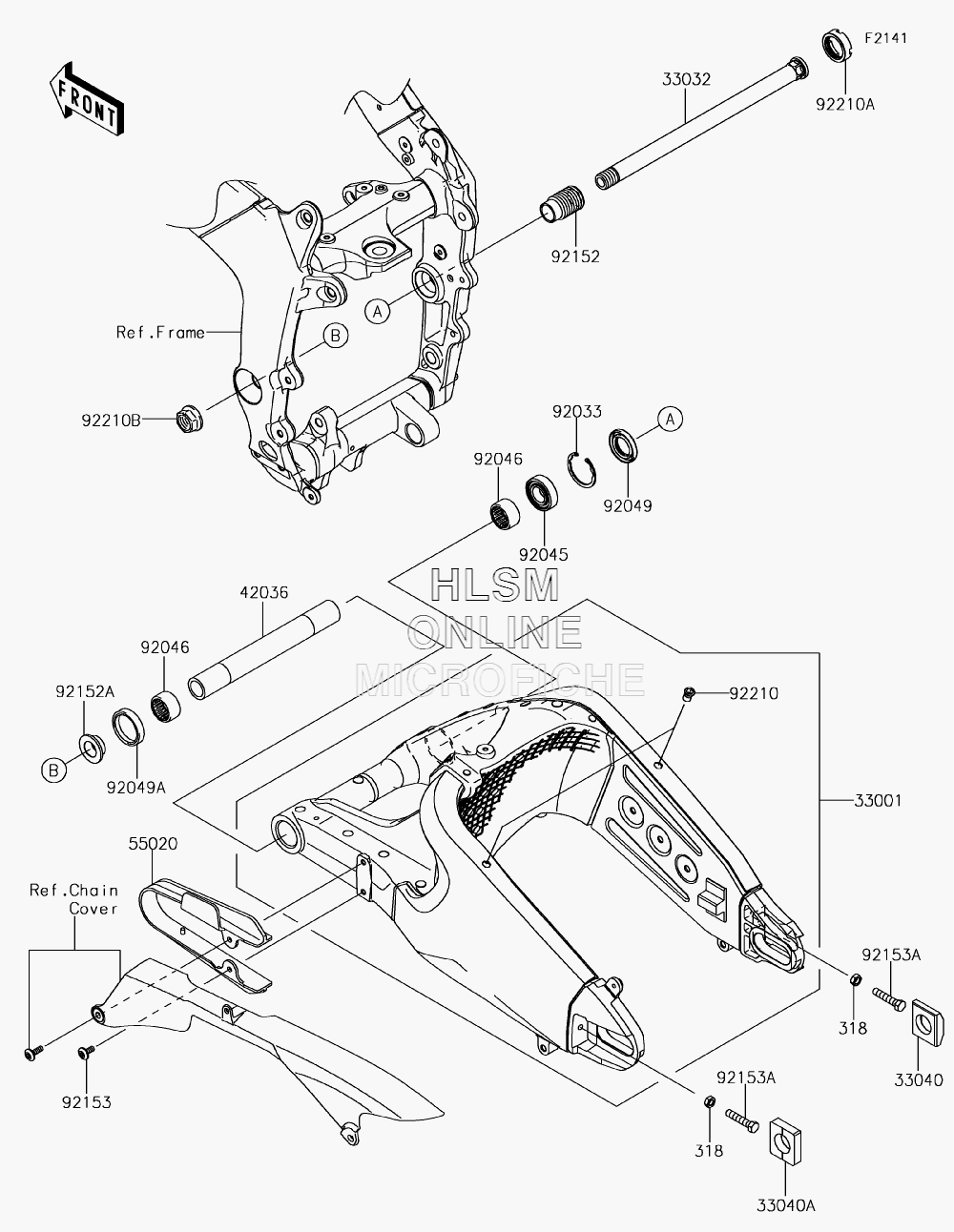

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-6R ABS KRT EDITION (ZX636FJFA) - 2018 года выпуска
-
№АртикулНазвание
-
318318BB0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
3300133001-0584 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-0044 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0027 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
33040A33040-1114 ADJUSTER-CHAIN, LEFT HANDADJUSTER-CHAIN, LEFT HAND
-
4203642036-1341 SLEEVE, SWING ARM PIVOT, L=226SLEEVE, SWING ARM PIVOT, L=226
-
5502055020-0384 GUARD, CHAINGUARD, CHAIN
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204592045-0017 BEARING-BALL, 6004UL11BEARING-BALL, 6004UL11
-
9204692046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17BEARING-NEEDLE, 7E-HVS 28X34X17
-
9204992049-1314 SEAL-OIL, MHSA25X42X6SEAL-OIL, MHSA25X42X6
-
92049A92049-1352 SEAL-OIL, MHSA25X34X7SEAL-OIL, MHSA25X34X7
-
9215292152-0154 COLLAR, SWING ARM, L=47COLLAR, SWING ARM, L=47
-
92152A92152-1234 COLLAR, SWING ARM, L=12.5COLLAR, SWING ARM, L=12.5
-
9215392153-0422 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92153A92153-0736 BOLT, 8X40BOLT, 8X40
-
9221092210-0099 NUT, 6MMNUT, 6MM
-
92210A92210-0134 NUT, 30MMNUT, 30MM
-
92210B92210-0320 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
