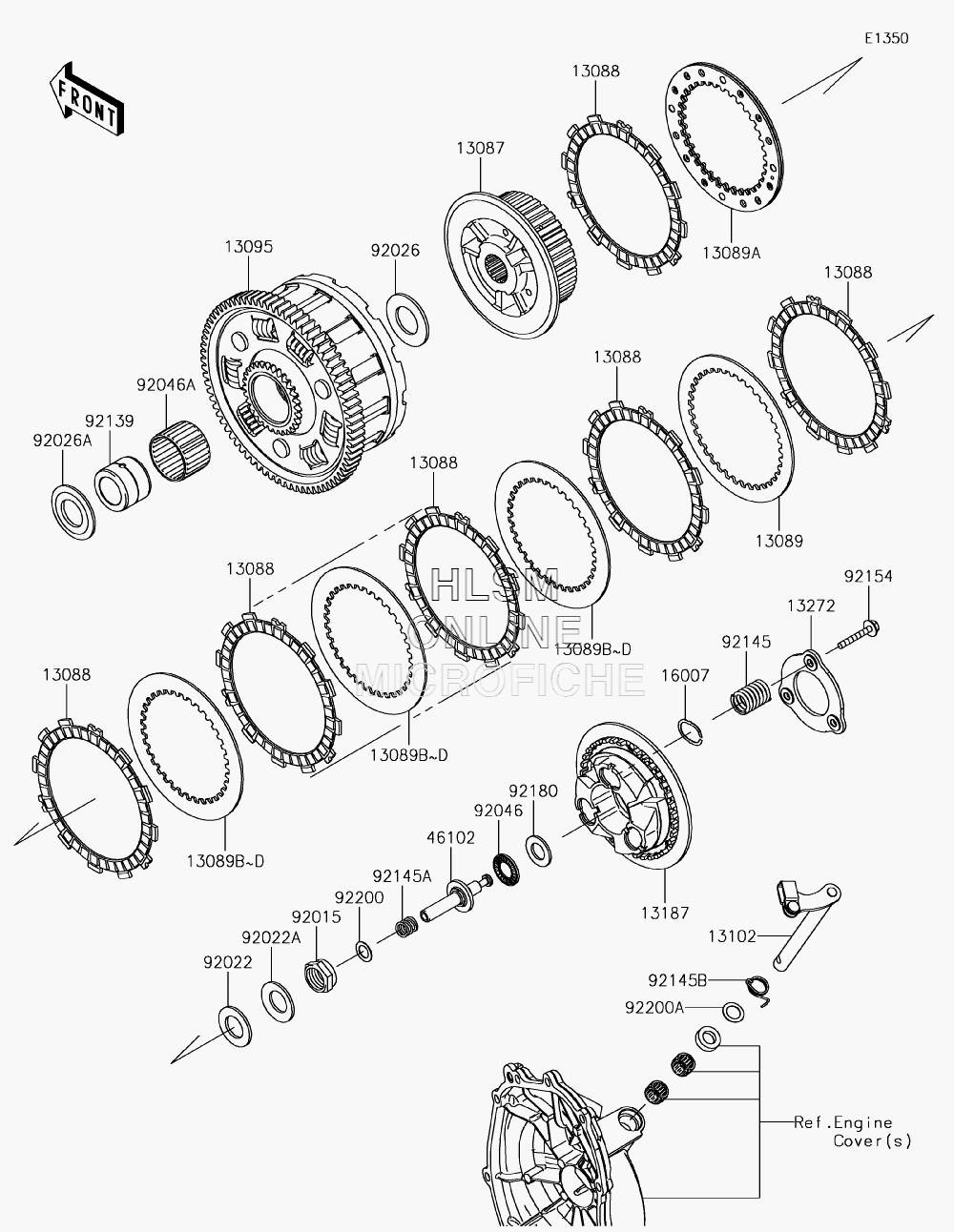

CLUTCH для Kawasaki NINJA ZX-6R KRT EDITION (ZX636EJFA) - 2018 года выпуска
-
№АртикулНазвание
-
1308713087-0561 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0560 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0023 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
13089A13089-0024 PLATE-CLUTCH, SPG COMPPLATE-CLUTCH, SPG COMP
-
13089B13089-1073 PLATE-CLUTCH, T=2.0PLATE-CLUTCH, T=2.0
-
13089C13089-1084 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
13089D13089-1115 PLATE-CLUTCH, T=2.6PLATE-CLUTCH, T=2.6
-
1309513095-0570 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-0032 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1318713187-0021 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1327213272-1413 PLATEPLATE
-
1600716007-0711 SEAT-SPRINGSEAT-SPRING
-
4610246102-0090 RODROD
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1116 WASHER, 20.3X36X2.3WASHER, 20.3X36X2.3
-
92022A92022-1868 WASHER, 20.3X36X3.7WASHER, 20.3X36X3.7
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
92026A92026-1356 SPACERSPACER
-
9204692046-1052 BEARING-NEEDLE, AXK1102BEARING-NEEDLE, AXK1102
-
92046A92046-1263 BEARING-NEEDLE, K38X43X28.8XBEARING-NEEDLE, K38X43X28.8X
-
9213992139-0067 BUSHING, 25X38X29.05BUSHING, 25X38X29.05
-
9214592145-0937 SPRINGSPRING
-
92145A92145-1159 SPRING, RODSPRING, ROD
-
92145B92145-1741 SPRINGSPRING
-
9215492154-1116 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
-
9218092180-0149 SHIM, 15.3X27.5X2.0SHIM, 15.3X27.5X2.0
-
9220092200-1423 WASHER, 11.2X18X0.5WASHER, 11.2X18X0.5
-
92200A92200-1487 WASHER, 12X18.5X0.5WASHER, 12X18.5X0.5
