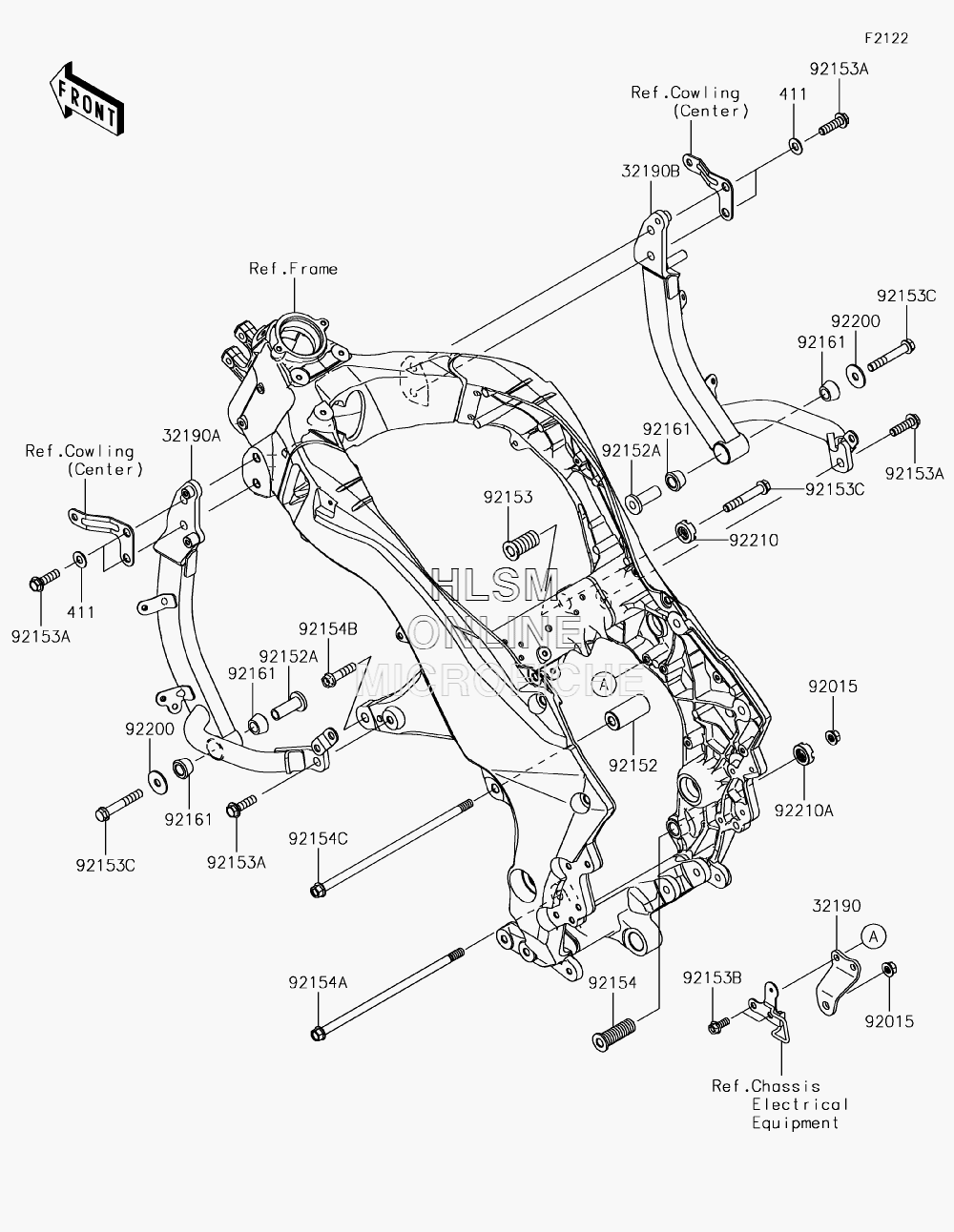

ENGINE MOUNT для Kawasaki VERSYS 1000 LT (KLZ1000BJF) - 2018 года выпуска
-
№АртикулНазвание
-
3219032190-0458-18R BRACKET-ENGINE, CR CASE UPPER, (BLACK)BRACKET-ENGINE, CR CASE UPPER, (BLACK)
-
32190A32190-0675-18R BRACKET-ENGINE, LEFT HAND, (F.S.BLACK)BRACKET-ENGINE, LEFT HAND, (F.S.BLACK)
-
32190B32190-0676-18R BRACKET-ENGINE, RIGHT HAND, (F.S.BLACK)BRACKET-ENGINE, RIGHT HAND, (F.S.BLACK)
-
411411AA1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
9201592015-1180 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9215292152-0853 COLLAR, 11X26X56.5COLLAR, 11X26X56.5
-
92152A92152-1908 COLLAR, 10.5X14.5X44COLLAR, 10.5X14.5X44
-
9215392153-0488 BOLT, SOCKET, 20X43BOLT, SOCKET, 20X43
-
92153A92153-0802 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
92153B92153-1554 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
92153C92153-1931 BOLT, FLANGED, 10X65BOLT, FLANGED, 10X65
-
9215492154-0267 BOLT, ENGINE MOUNT, 18X53.5BOLT, ENGINE MOUNT, 18X53.5
-
92154A92154-0827 BOLT, FLANGED, 10X255BOLT, FLANGED, 10X255
-
92154B92154-0903 BOLT, FLANGED, 10X54BOLT, FLANGED, 10X54
-
92154C92154-0906 BOLT, FLANGED, 10X270BOLT, FLANGED, 10X270
-
9216192161-1687 DAMPER, 13.7X26X15DAMPER, 13.7X26X15
-
9220092200-0978 WASHER, 10.2X32X2.3WASHER, 10.2X32X2.3
-
9221092210-0591 NUT, 20MMNUT, 20MM
-
92210A92210-1203 NUT, 18MMNUT, 18MM
