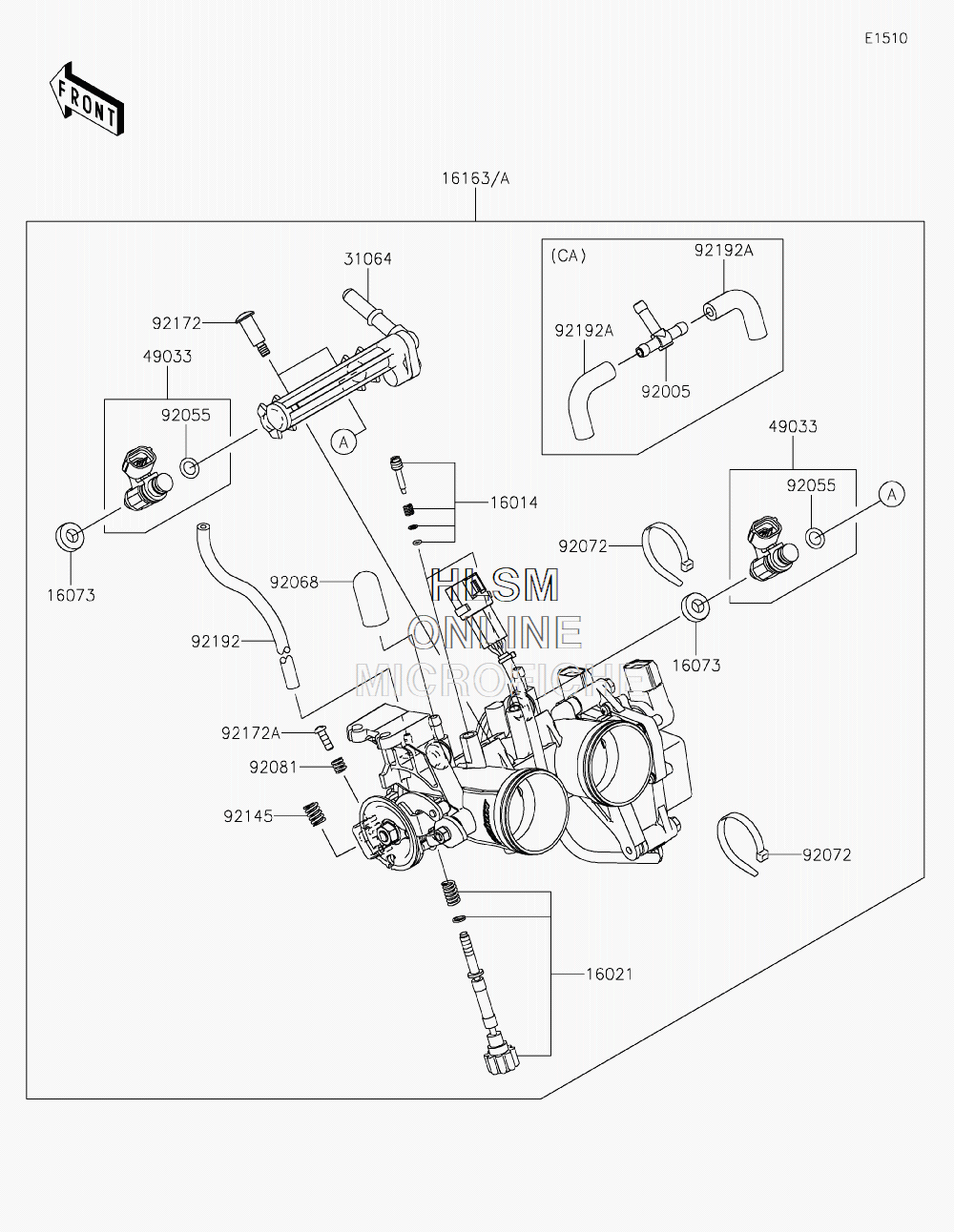

THROTTLE BODY ASSY для Kawasaki VERSYS-X 300 ABS (KLE300CJF) - 2018 года выпуска
-
№АртикулНазвание
-
1601416014-0002 SCREW-PILOT AIRSCREW-PILOT AIR
-
1602116021-0027 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1607316073-0129 INSULATORINSULATOR
-
1616316163-0746 THROTTLE-ASSY, TTK32 (EXCEPT CALIF.)THROTTLE-ASSY, TTK32 (EXCEPT CALIF.)
-
16163A16163-0750 THROTTLE-ASSY (CALIF. ONLY)THROTTLE-ASSY (CALIF. ONLY)
-
3106431064-0164 PIPE-COMP, FUELPIPE-COMP, FUEL
-
4903349033-0558 NOZZLE-INJECTIONNOZZLE-INJECTION
-
9200592005-0730 FITTING, 3WAY (CALIF. ONLY)FITTING, 3WAY (CALIF. ONLY)
-
9205592055-0124 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
9206892068-006 PLUG, 12X25 (EXCEPT CALIF.)PLUG, 12X25 (EXCEPT CALIF.)
-
9207292072-0012 BAND, SUB-HARNESSBAND, SUB-HARNESS
-
9208192081-1620 SPRINGSPRING
-
9214592145-0656 SPRINGSPRING
-
9217292172-0064 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
92172A92172-0129 SCREWSCREW
-
9219292192-1170 TUBE, 3X7X200TUBE, 3X7X200
-
92192A92192-1918 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
