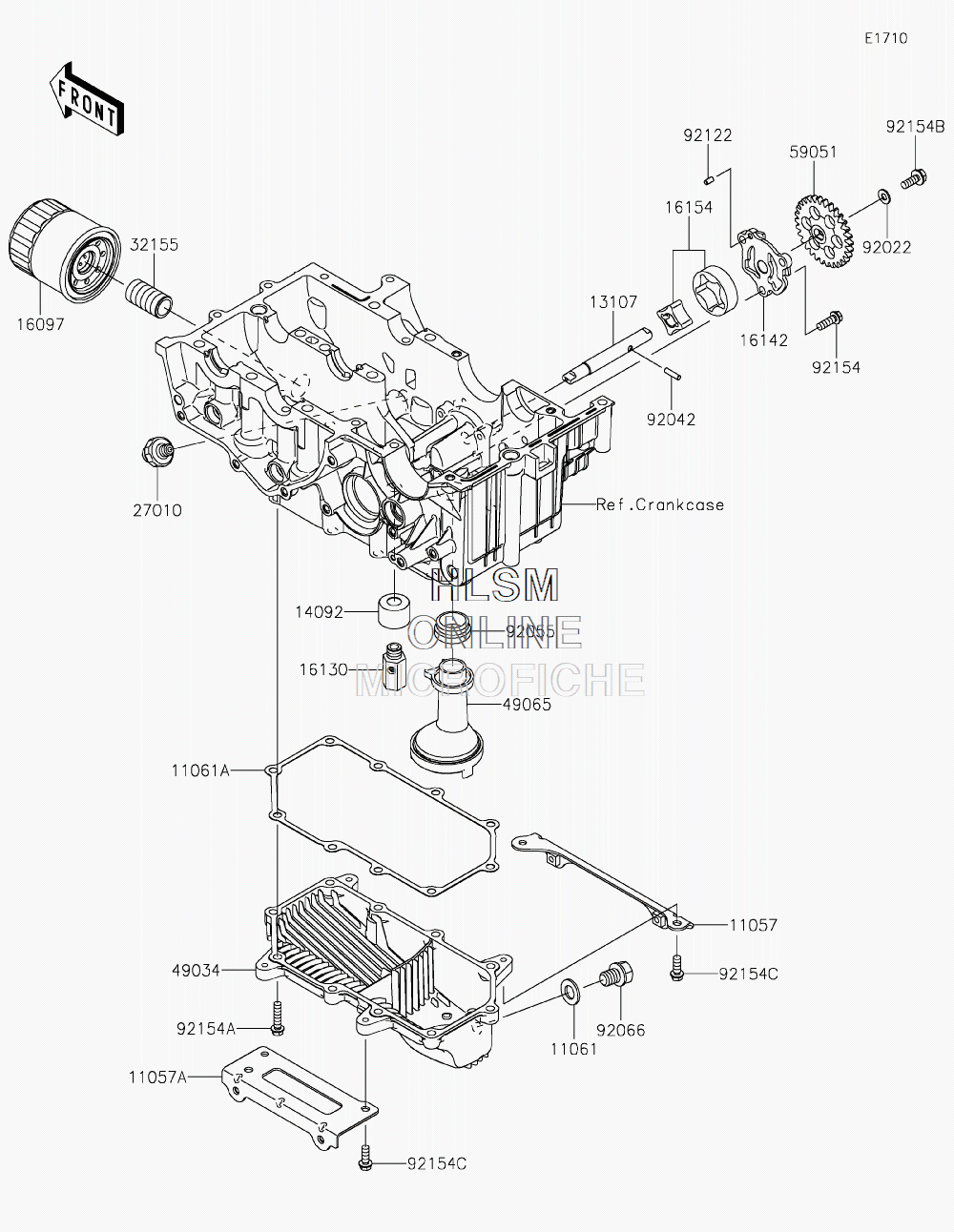

OIL PUMP для Kawasaki VERSYS-X 300 (KLE300BJF) - 2018 года выпуска
-
№АртикулНазвание
-
1105711057-0541 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
11057A11057-0542 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
1106111061-0417 GASKET, 12X22X2GASKET, 12X22X2
-
11061A11061-0794 GASKET, OIL PANGASKET, OIL PAN
-
1310713107-0741 SHAFTSHAFT
-
1409214092-1002 COVER, RELIEF VALVECOVER, RELIEF VALVE
-
1609716097-0008 FILTER-ASSY-OILFILTER-ASSY-OIL
-
1613016130-0002 VALVE-ASSY-RELIEFVALVE-ASSY-RELIEF
-
1614216142-0707 COVER-PUMPCOVER-PUMP
-
1615416154-0711 ROTOR-PUMPROTOR-PUMP
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3215532155-0029 PIPE, OIL FILTERPIPE, OIL FILTER
-
4903449034-0567 PAN-OILPAN-OIL
-
4906549065-0711 FILTER-OILFILTER-OIL
-
5905159051-0721 GEAR-SPUR, 30TGEAR-SPUR, 30T
-
9202292022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9204292042-014 PIN, DOWEL, 4X15.8PIN, DOWEL, 4X15.8
-
9205592055-1354 RING-O, OIL FILTERRING-O, OIL FILTER
-
9206692066-0767 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
9212292122-0557 ROLLER, 4X8ROLLER, 4X8
-
9215492154-0784 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
92154A92154-0819 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92154B92154-1055 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154C92154-2561 BOLT, FLANGED-SMALL, 6X16BOLT, FLANGED-SMALL, 6X16
