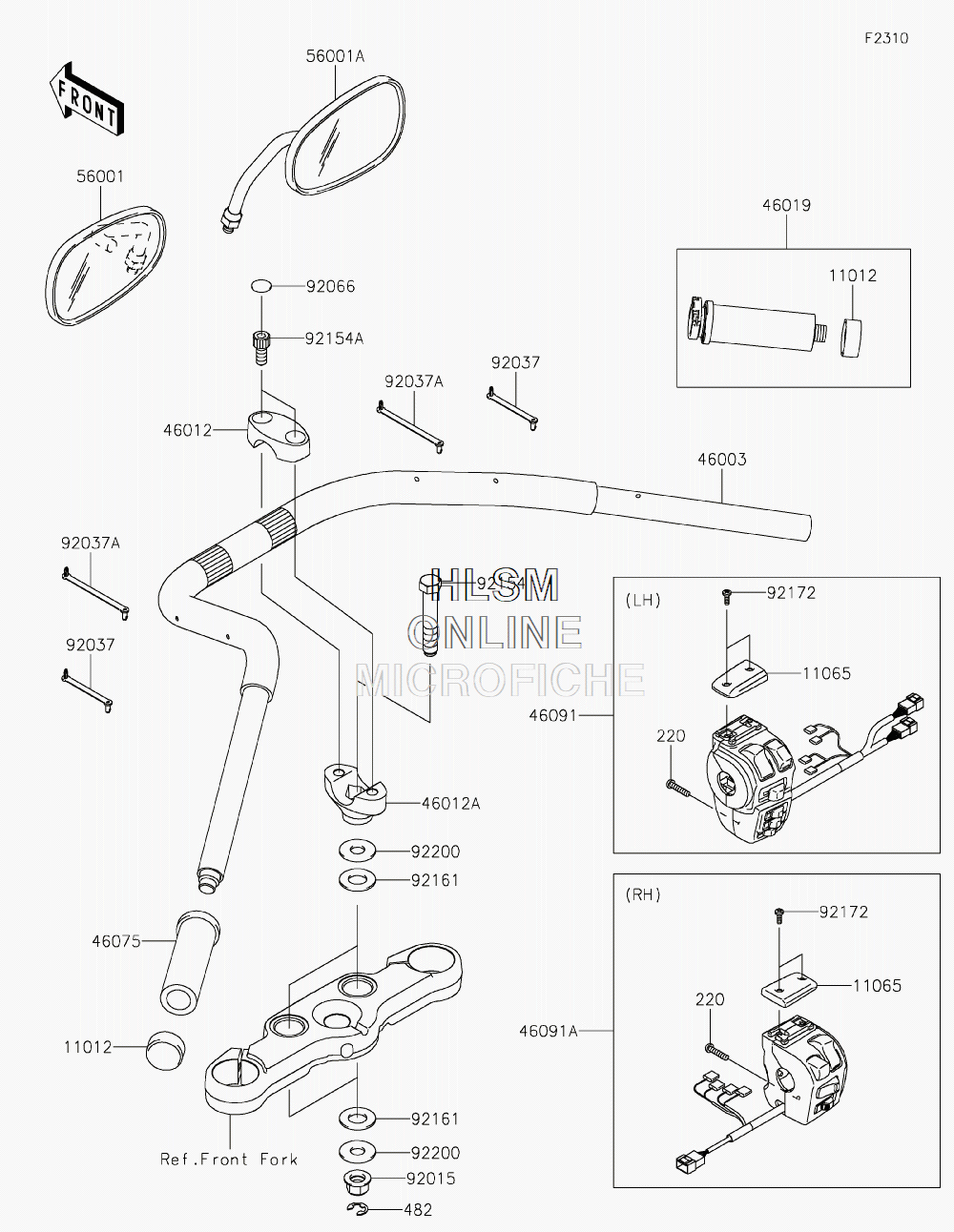

HANDLEBAR для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BJF) - 2018 года выпуска
-
№АртикулНазвание
-
1101211012-1975 CAP, GRIP ENDCAP, GRIP END
-
1106511065-0270 CAP, HOUSING SWITCHCAP, HOUSING SWITCH
-
220220AB0525 SCREW-PAN-CROS, 5X25SCREW-PAN-CROS, 5X25
-
4600346003-0185 HANDLEHANDLE
-
4601246012-0072 HOLDER-HANDLE, UPPERHOLDER-HANDLE, UPPER
-
46012A46012-0083 HOLDER-HANDLE, LOWERHOLDER-HANDLE, LOWER
-
4601946019-1109 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-1074 GRIP, LEFT HANDGRIP, LEFT HAND
-
4609146091-0141 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
46091A46091-0199 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
482482EA0100 CIRCLIP-TYPE-E, 10MMCIRCLIP-TYPE-E, 10MM
-
5600156001-0032 MIRROR-ASSY, LEFT HANDMIRROR-ASSY, LEFT HAND
-
56001A56001-0033 MIRROR-ASSY, RIGHT HANDMIRROR-ASSY, RIGHT HAND
-
9201592015-1401 NUT, FLANGED, 14MMNUT, FLANGED, 14MM
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9206692066-1285 PLUGPLUG
-
9215492154-0318 BOLT, UPSET, 14X77BOLT, UPSET, 14X77
-
92154A92154-0350 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
9216192161-0836 DAMPER, 18X35X2.2DAMPER, 18X35X2.2
-
9217292172-0420 SCREW, 4X12SCREW, 4X12
-
9220092200-0534 WASHER, 14.2X35X2.3WASHER, 14.2X35X2.3
