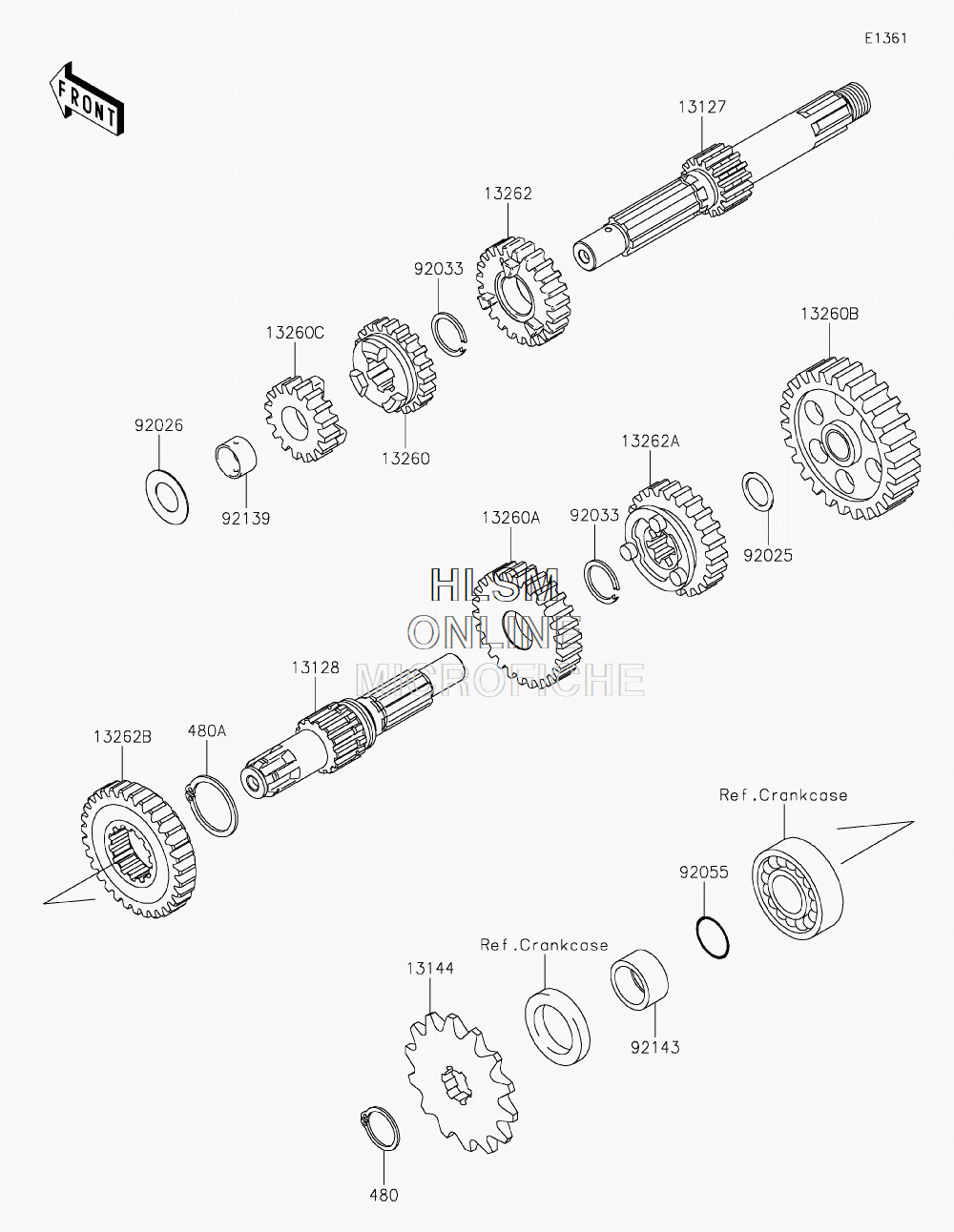

TRANSMISSION для Kawasaki Z125 PRO (BR125JJSA) - 2018 года выпуска
-
№АртикулНазвание
-
1312713127-0661 SHAFT-TRANSMISSION INPUT, 12TSHAFT-TRANSMISSION INPUT, 12T
-
1312813128-0672 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0072 SPROCKET-OUTPUTSPROCKET-OUTPUT
-
1326013260-1839 GEAR, INPUT 3RD, 20TGEAR, INPUT 3RD, 20T
-
13260A13260-1842 GEAR, OUTPUT 3RD, 27TGEAR, OUTPUT 3RD, 27T
-
13260B13260-1862 GEAR, OUTPUT LOW, 36TGEAR, OUTPUT LOW, 36T
-
13260C13260-1986 GEAR, INPUT 2ND, 16TGEAR, INPUT 2ND, 16T
-
1326213262-0666 GEAR, INPUT 4TH, 23TGEAR, INPUT 4TH, 23T
-
13262A13262-0667 GEAR, OUTPUT 4TH, 25TGEAR, OUTPUT 4TH, 25T
-
13262B13262-0913 GEAR, OUTPUT 2ND, 31TGEAR, OUTPUT 2ND, 31T
-
480480J1700 CIRCLIP-TYPE-C, 17MMCIRCLIP-TYPE-C, 17MM
-
480A480J2400 CIRCLIP-TYPE-C, 24MMCIRCLIP-TYPE-C, 24MM
-
9202592025-1280 SHIMSHIM
-
9202692026-1091 SPACERSPACER
-
9203392033-1060 RING-SNAP, 17MMRING-SNAP, 17MM
-
9205592055-1235 RING-O, 16.8MMRING-O, 16.8MM
-
9213992139-1102 BUSHINGBUSHING
-
9214392143-1680 COLLAR, SPROCKETCOLLAR, SPROCKET
