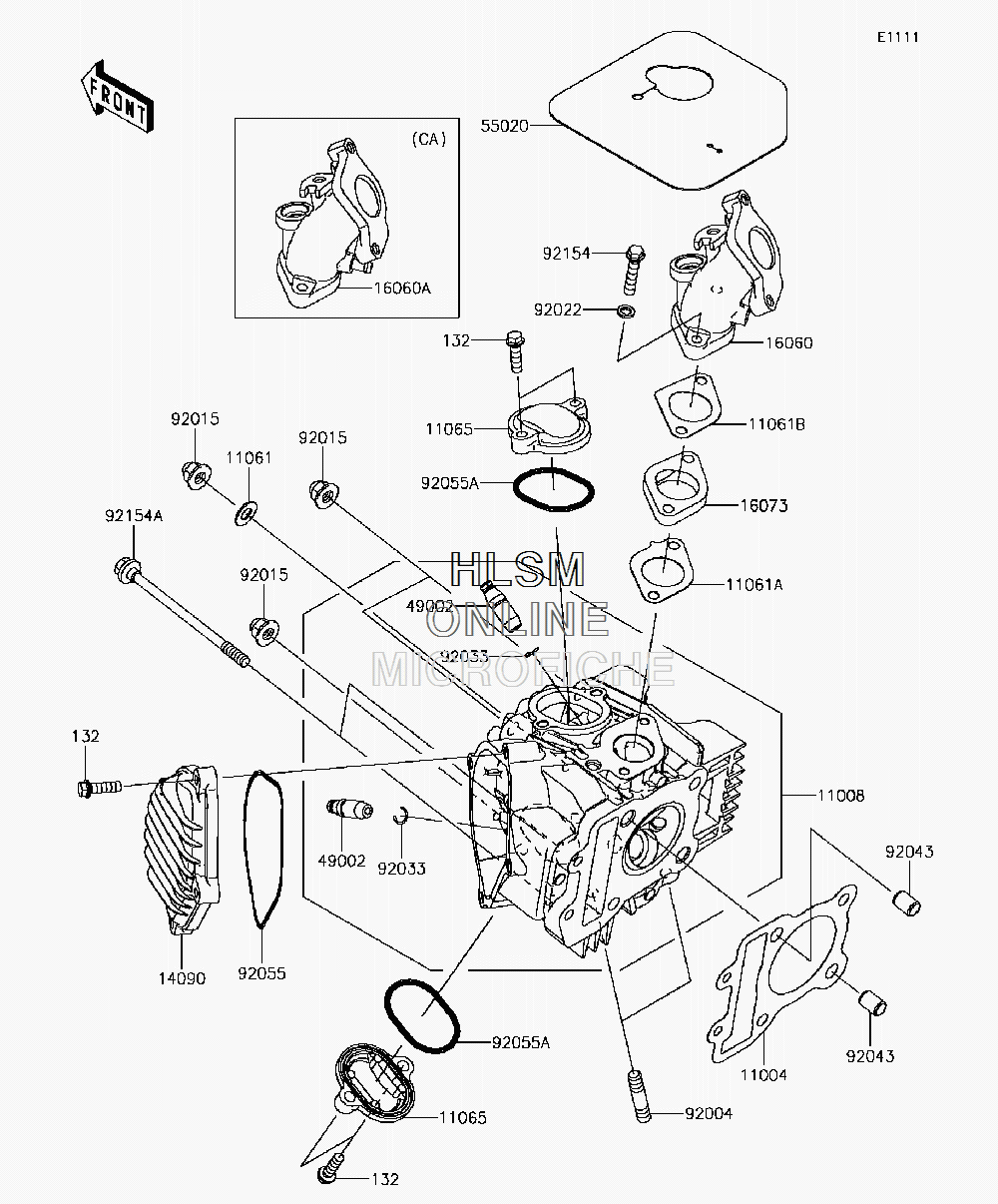

CYLINDER HEAD для Kawasaki Z125 PRO SE (BR125JJFA) - 2018 года выпуска
-
№АртикулНазвание
-
1100411004-0009 GASKET-HEADGASKET-HEAD
-
1100811008-0868 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1106111061-0850 GASKETGASKET
-
11061A11061-0992 GASKET, HEAD SIDEGASKET, HEAD SIDE
-
11061B11061-0993 GASKET, PIPE-INTAKE SIDEGASKET, PIPE-INTAKE SIDE
-
1106511065-0919 CAP, VALVE ADJUSTINGCAP, VALVE ADJUSTING
-
132132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
1409014090-1845 COVER, CAMSHAFTCOVER, CAMSHAFT
-
1606016060-0040 PIPE-INTAKE (EXCEPT CALIF.)PIPE-INTAKE (EXCEPT CALIF.)
-
16060A16060-0041 PIPE-INTAKE (CALIF. ONLY)PIPE-INTAKE (CALIF. ONLY)
-
1607316073-0838 INSULATORINSULATOR
-
4900249002-0033 GUIDE-VALVEGUIDE-VALVE
-
5502055020-1958 GUARD, THROTTLE-ASSYGUARD, THROTTLE-ASSY
-
9200492004-1284 STUD, 8X28.5STUD, 8X28.5
-
9201592015-1151 NUT, CAP, 8MMNUT, CAP, 8MM
-
9202292022-1588 WASHER, 6.3X10.2X1.6WASHER, 6.3X10.2X1.6
-
9203392033-1247 RING-SNAPRING-SNAP
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1651 RING-O, 91X2.5RING-O, 91X2.5
-
92055A92055-1655 RING-O, ADJUST CAPRING-O, ADJUST CAP
-
9215492154-1830 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154A92154-2693 BOLT, 6X106BOLT, 6X106
