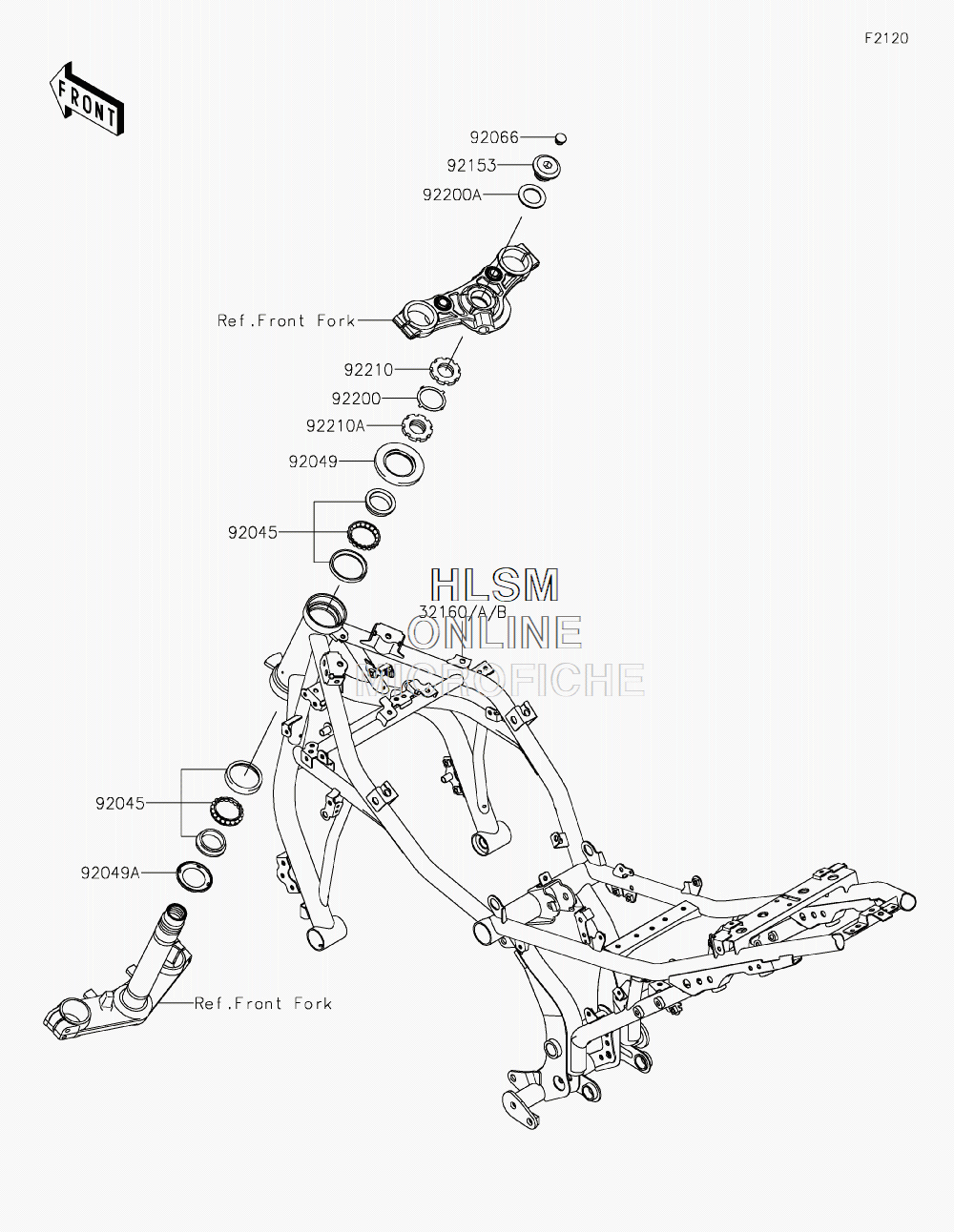

FRAME для Kawasaki Z650 (ER650GJF) - 2018 года выпуска
-
№АртикулНазвание
-
32160A32160-0937-54P FRAME-COMP, (B.SILVER) (FOR 36T)FRAME-COMP, (B.SILVER) (FOR 36T)
-
32160B32160-0937-54S FRAME-COMP, (M.GREEN) (FOR 660)FRAME-COMP, (M.GREEN) (FOR 660)
-
9204592045-1384 BEARING-BALL, SF07A17PX1V1BEARING-BALL, SF07A17PX1V1
-
9204992049-0131 SEAL-OILSEAL-OIL
-
92049A92049-0137 SEAL-OILSEAL-OIL
-
9206692066-0071 PLUGPLUG
-
9215392153-0474 BOLT, 26MMBOLT, 26MM
-
9220092200-0036 WASHERWASHER
-
92200A92200-0753 WASHER, 27X42X2.3WASHER, 27X42X2.3
-
9221092210-0534 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
-
92210A92210-0535 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
