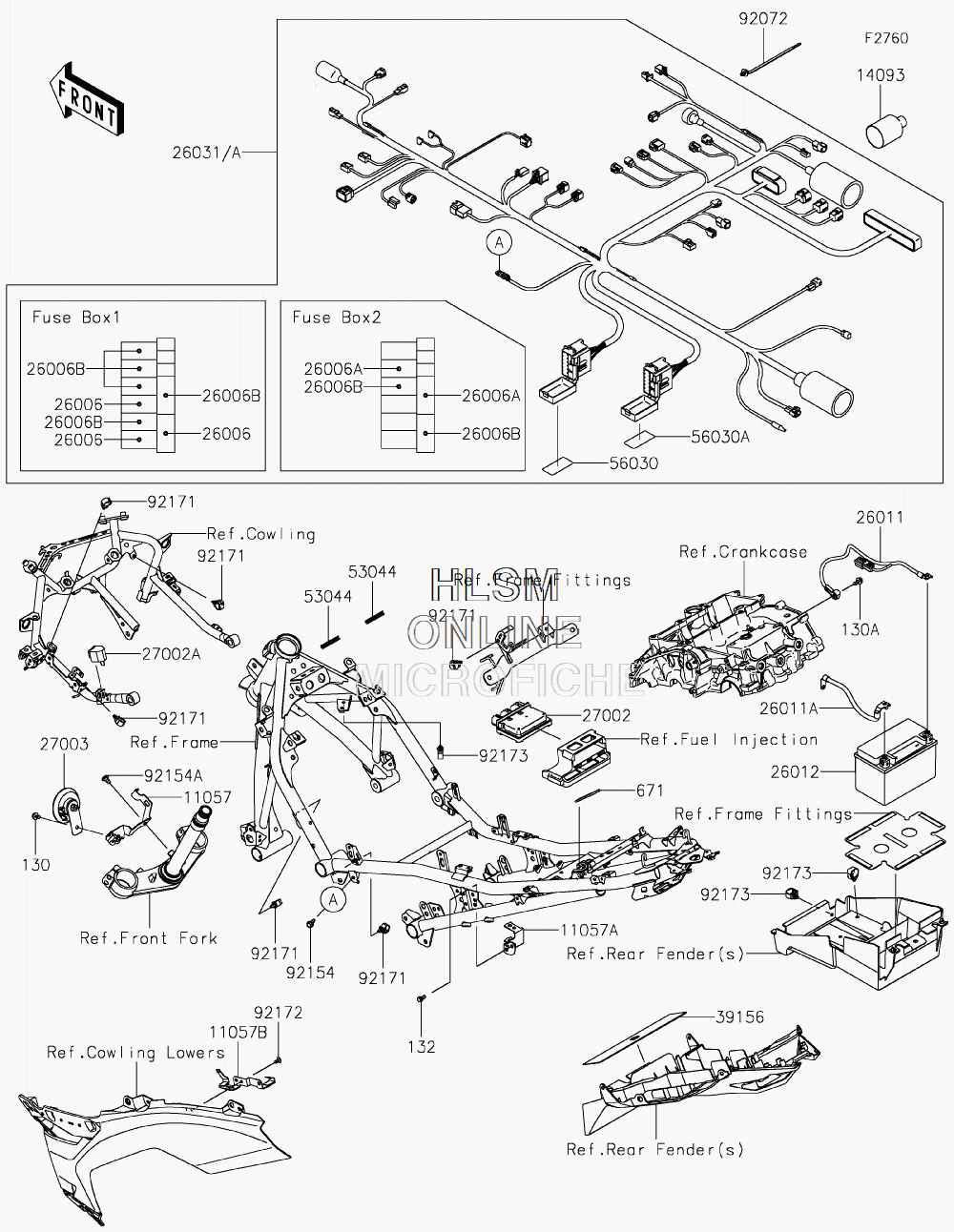

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 400 (EX400HKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-1219 BRACKET, HORNBRACKET, HORN
-
11057A11057-1225 BRACKET, MAGNETIC SW.BRACKET, MAGNETIC SW.
-
11057B11057-1771 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
130130BA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1409314093-0720 COVER, HARNESSCOVER, HARNESS
-
2600626006-0001 FUSE, MINI BLADE, 15A, (BLUE)FUSE, MINI BLADE, 15A, (BLUE)
-
26006A26006-1077 FUSE, MINI BLADE, 5A, (TAN)FUSE, MINI BLADE, 5A, (TAN)
-
26006B26006-1078 FUSE, MINI BLADE, 10A, (RED)FUSE, MINI BLADE, 10A, (RED)
-
2601126011-0975 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
26011A26011-0977 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
2601226012-0849 BATTERY, FTX9-BS, 12V 8AHBATTERY, FTX9-BS, 12V 8AH
-
2603126031-2483 HARNESS, MAIN (CALIF. ONLY)HARNESS, MAIN (CALIF. ONLY)
-
26031A26031-2484 HARNESS, MAIN (EXCEPT CALIF.)HARNESS, MAIN (EXCEPT CALIF.)
-
2700227002-0028 RELAY-ASSYRELAY-ASSY
-
27002A27002-0031 RELAY-ASSY, TURN SIGNALRELAY-ASSY, TURN SIGNAL
-
2700327003-0111 HORNHORN
-
3915639156-2219 PAD, 60X250X1PAD, 60X250X1
-
5304453044-0580 TRIMTRIM
-
5603056030-1423 LABEL, FUSE BOX 1LABEL, FUSE BOX 1
-
56030A56030-1425 LABEL, FUSE BOX 2LABEL, FUSE BOX 2
-
671671B2550 O RING, 50MMO RING, 50MM
-
9207292072-1414 BAND, OS170-FT7 (BLACK)BAND, OS170-FT7 (BLACK)
-
9215492154-0551 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154A92154-2355 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9217192171-1415 CLAMP, 13MM DIA.CLAMP, 13MM DIA.
-
9217292172-0262 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9217392173-0868 CLAMP, HOLDER CLIPCLAMP, HOLDER CLIP
