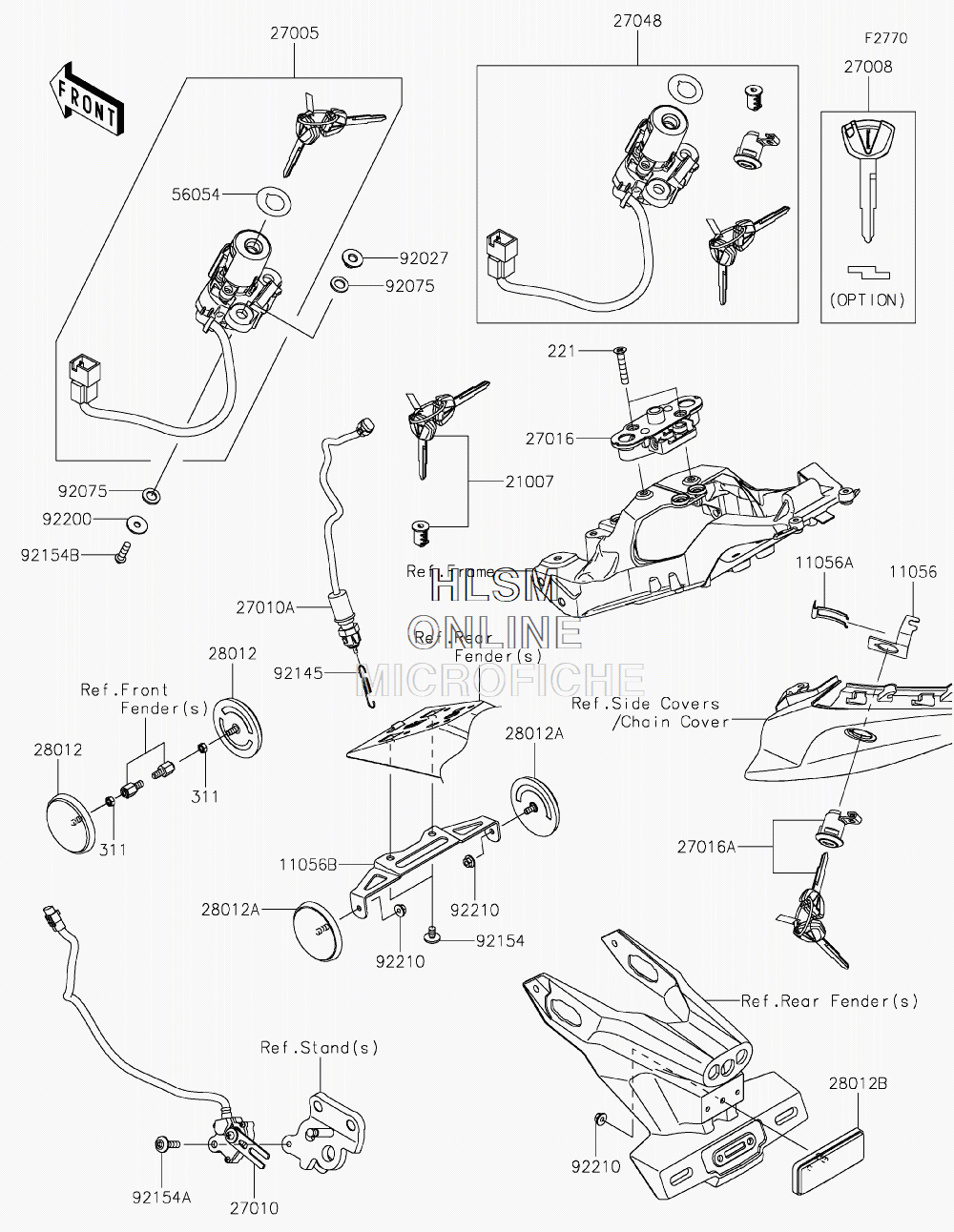

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-10R ABS KRT EDITION (ZX1002EKFA) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-0237 BRACKETBRACKET
-
11056A11056-0238 BRACKET, CLASPBRACKET, CLASP
-
11056B11056-4496 BRACKET, REFLECTORBRACKET, REFLECTOR
-
2100721007-5068 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
221221AB0635 SCREW-CSK-CROS, 6X35SCREW-CSK-CROS, 6X35
-
2700527005-0621 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0069 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0003 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-0836 SWITCH, STOPSWITCH, STOP
-
2701627016-0035 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5391 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2704827048-5104 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
311311AB0500 NUT-HEX, 5MMNUT-HEX, 5MM
-
5605456054-0969 MARK, IGNITION SWITCHMARK, IGNITION SWITCH
-
9202792027-1045 COLLAR, L=9.6COLLAR, L=9.6
-
9207592075-1564 DAMPERDAMPER
-
9214592145-0091 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215492154-1693 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
92154A92154-1810 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
92154B92154-1858 BOLT, TORX, 6X22BOLT, TORX, 6X22
-
9220092200-0212 WASHER, 6X20X1.6WASHER, 6X20X1.6
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
