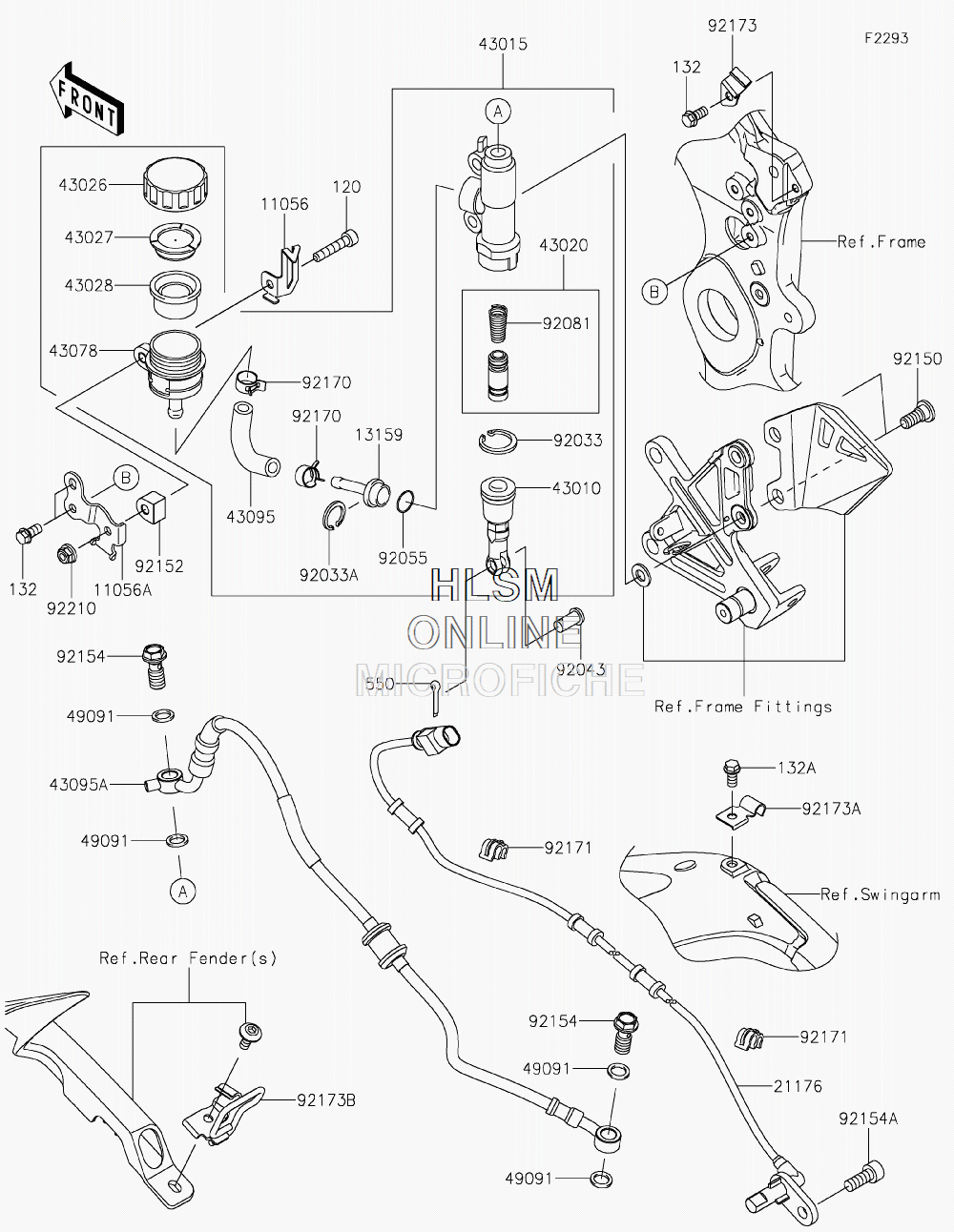

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-10R (ZX1002FKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-7024 BRACKET, RESERVOIR TANK CAPBRACKET, RESERVOIR TANK CAP
-
11056A11056-7786 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
120120CC0630 BOLT-SOCKET, 6X30BOLT-SOCKET, 6X30
-
1315913159-0009 CONNECTORCONNECTOR
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132BB0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
2117621176-0815 SENSOR, REAR WHEELSENSOR, REAR WHEEL
-
4301043010-0016 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0640 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4307843078-0575 RESERVOIRRESERVOIR
-
4309543095-0585 HOSE-BRAKE, RESERVOIRHOSE-BRAKE, RESERVOIR
-
43095A43095-0927 HOSE-BRAKE, REAR M/CYL.-REAR CAL.HOSE-BRAKE, REAR M/CYL.-REAR CAL.
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0104 PIN, 8X17PIN, 8X17
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215092150-1837 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9215292152-2188 COLLAR, 6.1X16X11.3COLLAR, 6.1X16X11.3
-
9215492154-1712 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
92154A92154-1976 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0921 CLAMPCLAMP
-
9217392173-1516 CLAMP, MAIN FRAME, REARCLAMP, MAIN FRAME, REAR
-
92173A92173-1517 CLAMP, SWING ARM, MIDCLAMP, SWING ARM, MID
-
92173B92173-1518 CLAMP, SWING ARM, REARCLAMP, SWING ARM, REAR
-
9221092210-0991 NUT, 6MMNUT, 6MM
