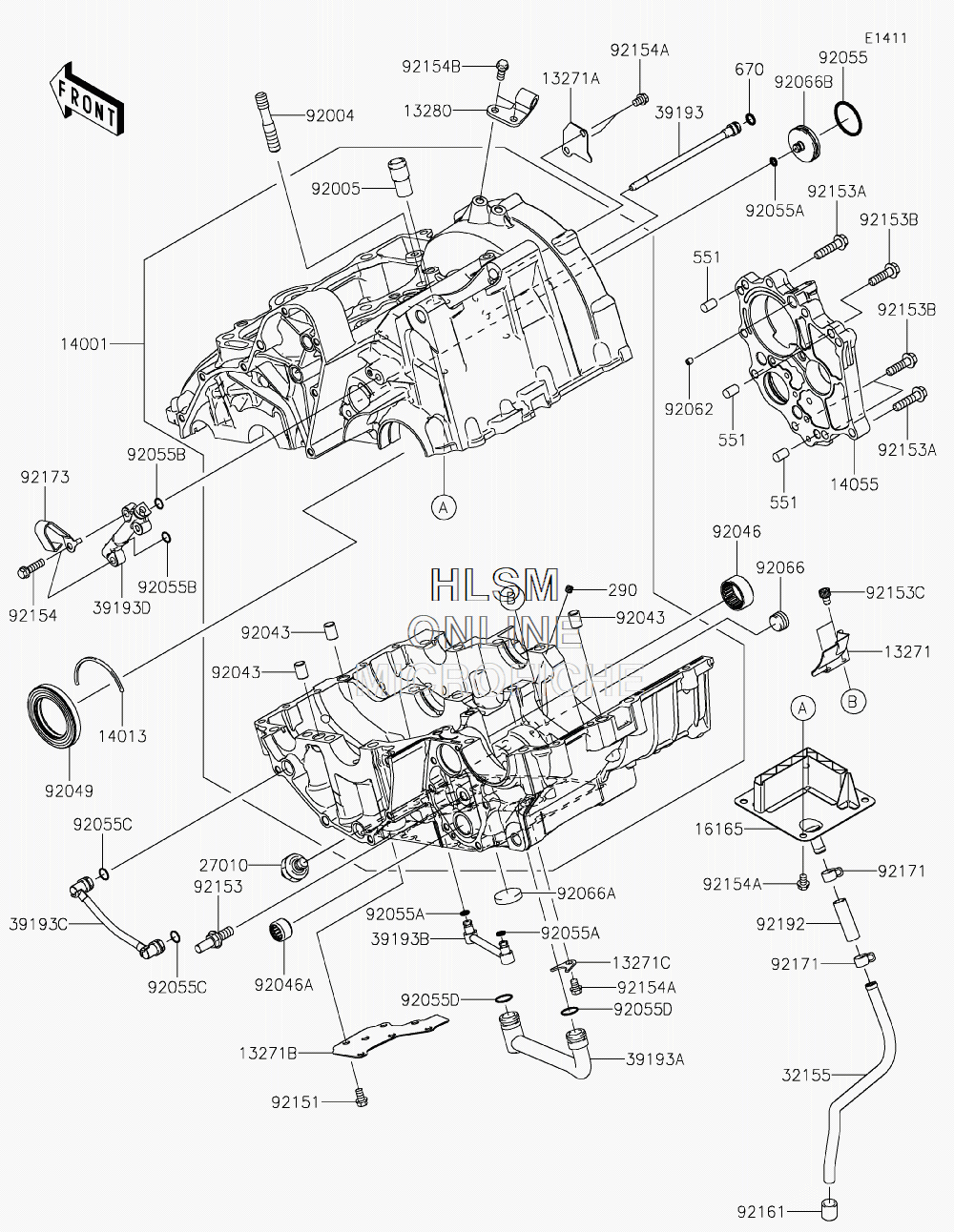

CRANKCASE для Kawasaki VERSYS 650 ABS (KLE650FKFA) - 2019 года выпуска
-
№АртикулНазвание
-
1327113271-0575 PLATE, OIL SHIELDINGPLATE, OIL SHIELDING
-
13271A13271-0577 PLATEPLATE
-
13271B13271-0584 PLATEPLATE
-
13271C13271-1187 PLATE, OIL PIPEPLATE, OIL PIPE
-
1328013280-0224 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1400114001-0556 SET-CRANKCASESET-CRANKCASE
-
1401314013-1004 RING-POSITION, T=1.98RING-POSITION, T=1.98
-
1405514055-0051 CASE-GEAR, TRANSMISSIONCASE-GEAR, TRANSMISSION
-
1616516165-0056 SEPARATOR, BREATHERSEPARATOR, BREATHER
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
290290Q0606 SCREW-SET-SOCKET, 6X6SCREW-SET-SOCKET, 6X6
-
3215532155-0891 PIPE, BREATHERPIPE, BREATHER
-
3919339193-0564 PIPE-OILPIPE-OIL
-
39193A39193-0565 PIPE-OILPIPE-OIL
-
39193B39193-0566 PIPE-OILPIPE-OIL
-
39193C39193-0567 PIPE-OILPIPE-OIL
-
39193D39193-0569 PIPE-OILPIPE-OIL
-
551551A0814 PIN-DOWEL, 8X14PIN-DOWEL, 8X14
-
670670D1508 O RING, 8MMO RING, 8MM
-
9200492004-0024 STUD, 10X34.5STUD, 10X34.5
-
9200592005-0713 FITTING, BREATHERFITTING, BREATHER
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
9204692046-0017 BEARING-NEEDLE, 24BTM3013BEARING-NEEDLE, 24BTM3013
-
92046A92046-1148 BEARING-NEEDLE, HK1312BEARING-NEEDLE, HK1312
-
9204992049-1501 SEAL-OIL, HTC40628SEAL-OIL, HTC40628
-
9205592055-0006 RING-O, 29.7X2.4RING-O, 29.7X2.4
-
92055A92055-0845 RING-O, 4.8MMRING-O, 4.8MM
-
92055B92055-0846 RING-O, 8.8MMRING-O, 8.8MM
-
92055C92055-0847 RING-O, 9.8MMRING-O, 9.8MM
-
92055D92055-0848 RING-O, 13.8MMRING-O, 13.8MM
-
9206292062-1086 NOZZLE, 5X6, SILVERNOZZLE, 5X6, SILVER
-
9206692066-0003 PLUG, PT3/8X10PLUG, PT3/8X10
-
92066A92066-0061 PLUG, 25X5PLUG, 25X5
-
92066B92066-0715 PLUG, INPUT SHAFTPLUG, INPUT SHAFT
-
9215192151-1389 BOLT, FLANGED-SMALL, 6X10BOLT, FLANGED-SMALL, 6X10
-
9215392153-0530 BOLT, 8X20BOLT, 8X20
-
92153A92153-0962 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92153B92153-0963 BOLT, FLANGED, 7X26BOLT, FLANGED, 7X26
-
92153C92153-1414 BOLT, SOCKET, 6X8BOLT, SOCKET, 6X8
-
9215492154-0504 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
92154A92154-0726 BOLT, FLANGED, 6X8BOLT, FLANGED, 6X8
-
92154B92154-0813 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9216192161-0267 DAMPERDAMPER
-
9217192171-1053 CLAMPCLAMP
-
9217392173-0059 CLAMPCLAMP
-
9219292192-0225 TUBE, 9X12X38TUBE, 9X12X38
