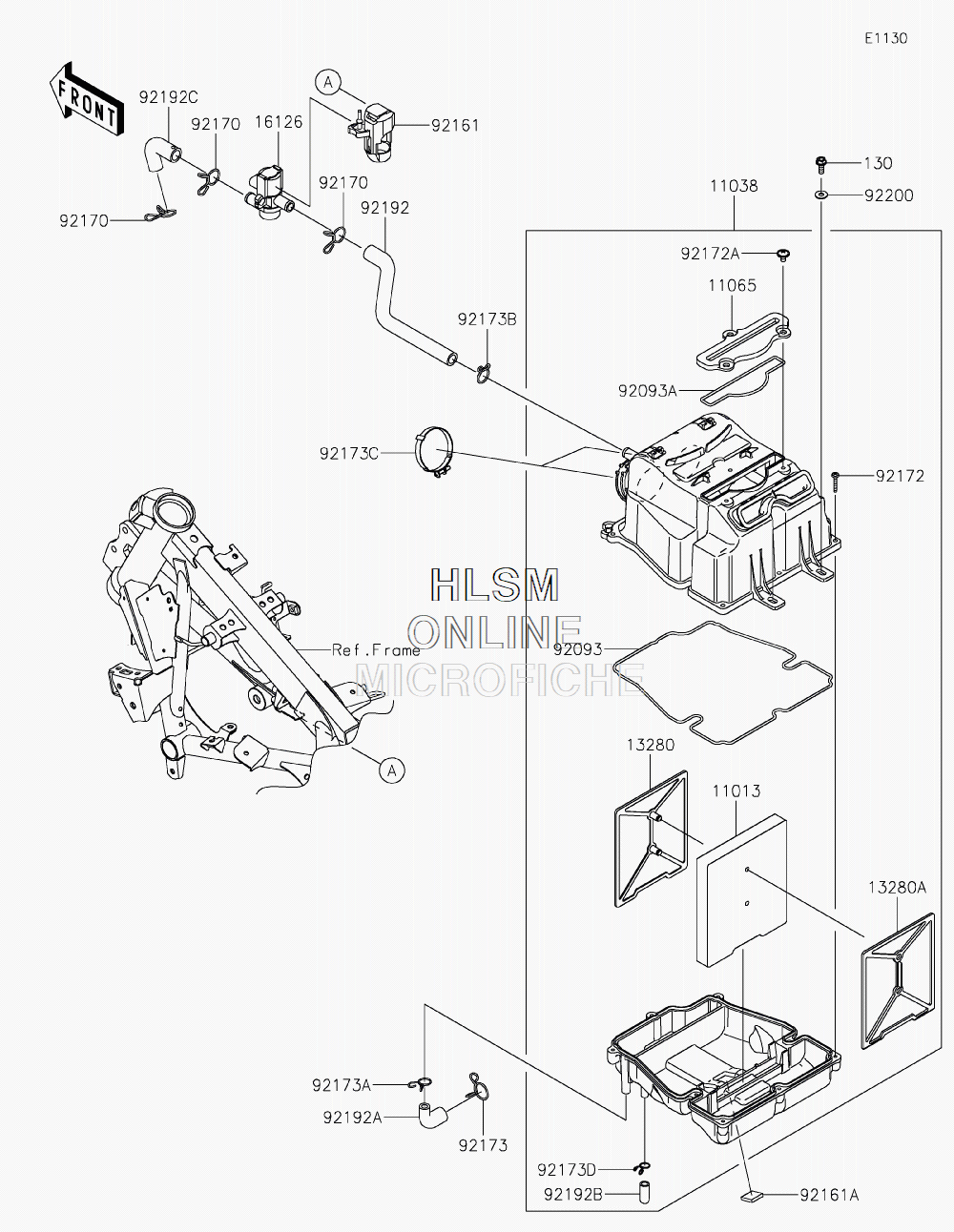

AIR CLEANER для Kawasaki VERSYS-X 300 ABS (KLE300CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1101311013-0762 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1103811038-0049 CASE-ASSY-AIR FILTERCASE-ASSY-AIR FILTER
-
1106511065-0967 CAPCAP
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
1328013280-0883 HOLDER, AIR FILTER ELEMENTHOLDER, AIR FILTER ELEMENT
-
13280A13280-0884 HOLDER, AIR FILTER ELEMENTHOLDER, AIR FILTER ELEMENT
-
1612616126-0744 VALVE, AIR CUTVALVE, AIR CUT
-
9209392093-0698 SEAL, CASESEAL, CASE
-
92093A92093-0699 SEAL, CAPSEAL, CAP
-
9216192161-1424 DAMPER, ACVDAMPER, ACV
-
92161A92161-1992 DAMPER, 20X20X4DAMPER, 20X20X4
-
9217092170-1017 CLAMPCLAMP
-
9217292172-0803 SCREW, TAPPING, 5X25SCREW, TAPPING, 5X25
-
92172A92172-1144 SCREW, 6X10SCREW, 6X10
-
9217392173-0190 CLAMP, 20MMCLAMP, 20MM
-
92173A92173-0192 CLAMP, 14MMCLAMP, 14MM
-
92173B92173-0193 CLAMP, 18MMCLAMP, 18MM
-
92173C92173-1653 CLAMPCLAMP
-
92173D92173-1714 CLAMPCLAMP
-
9219292192-1727 TUBE, VALVE-AIR FILTERTUBE, VALVE-AIR FILTER
-
92192A92192-1728 TUBE, BREATHERTUBE, BREATHER
-
92192B92192-1744 TUBE, DRAIN CLEANTUBE, DRAIN CLEAN
-
92192C92192-1763 TUBE, VALVE-CYLINDER HRADTUBE, VALVE-CYLINDER HRAD
-
9220092200-0796 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
