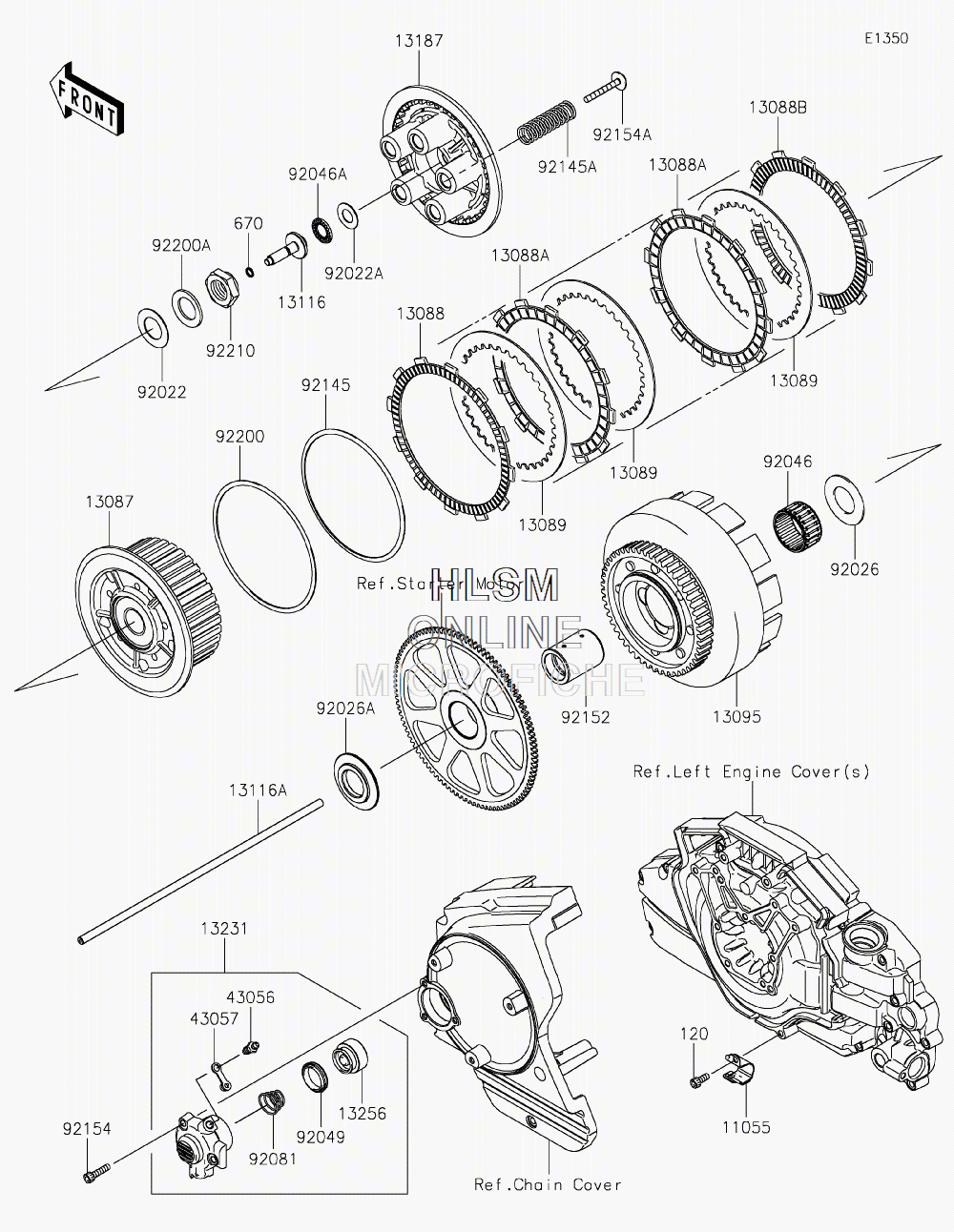

CLUTCH для Kawasaki VULCAN 1700 VAQUERO ABS (VN1700KKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105511055-0528 BRACKETBRACKET
-
120120CC0614 BOLT-SOCKET, 6X14BOLT-SOCKET, 6X14
-
1308713087-0052 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0001 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0011 PLATE-FRICTIONPLATE-FRICTION
-
13088B13088-1146 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1075 PLATE-CLUTCH, T=2.0PLATE-CLUTCH, T=2.0
-
1309513095-0087 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311613116-0033 ROD-PUSHROD-PUSH
-
13116A13116-0036 ROD-PUSHROD-PUSH
-
1318713187-0002 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1323113231-0003 RELEASE-ASSY-CLUTCHRELEASE-ASSY-CLUTCH
-
1325613256-1052 PISTONPISTON
-
4305643056-1055 BREATHERBREATHER
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
670670D1507 O RING, 7MMO RING, 7MM
-
9202292022-1390 WASHER, 25.3X44X1WASHER, 25.3X44X1
-
92022A92022-1463 WASHER, 15.1X29X1.0WASHER, 15.1X29X1.0
-
9202692026-0008 SPACER, 30.5X56X2SPACER, 30.5X56X2
-
92026A92026-0146 SPACERSPACER
-
9204692046-0001 BEARING-NEEDLE, K40X48X25V3BEARING-NEEDLE, K40X48X25V3
-
92046A92046-1052 BEARING-NEEDLE, AXK1102BEARING-NEEDLE, AXK1102
-
9204992049-1165 SEAL-OIL, PISTONSEAL-OIL, PISTON
-
9208192081-1644 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
9214592145-0033 SPRINGSPRING
-
92145A92145-0771 SPRINGSPRING
-
9215292152-0190 COLLAR, 30X40X52.3COLLAR, 30X40X52.3
-
9215492154-0085 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154A92154-0352 BOLT, CLUTCH OPERATINGBOLT, CLUTCH OPERATING
-
9220092200-0015 WASHER, 140.1X150X1.2WASHER, 140.1X150X1.2
-
92200A92200-0016 WASHER, 25.5X42X2.6WASHER, 25.5X42X2.6
-
9221092210-0138 NUT, 25MMNUT, 25MM
