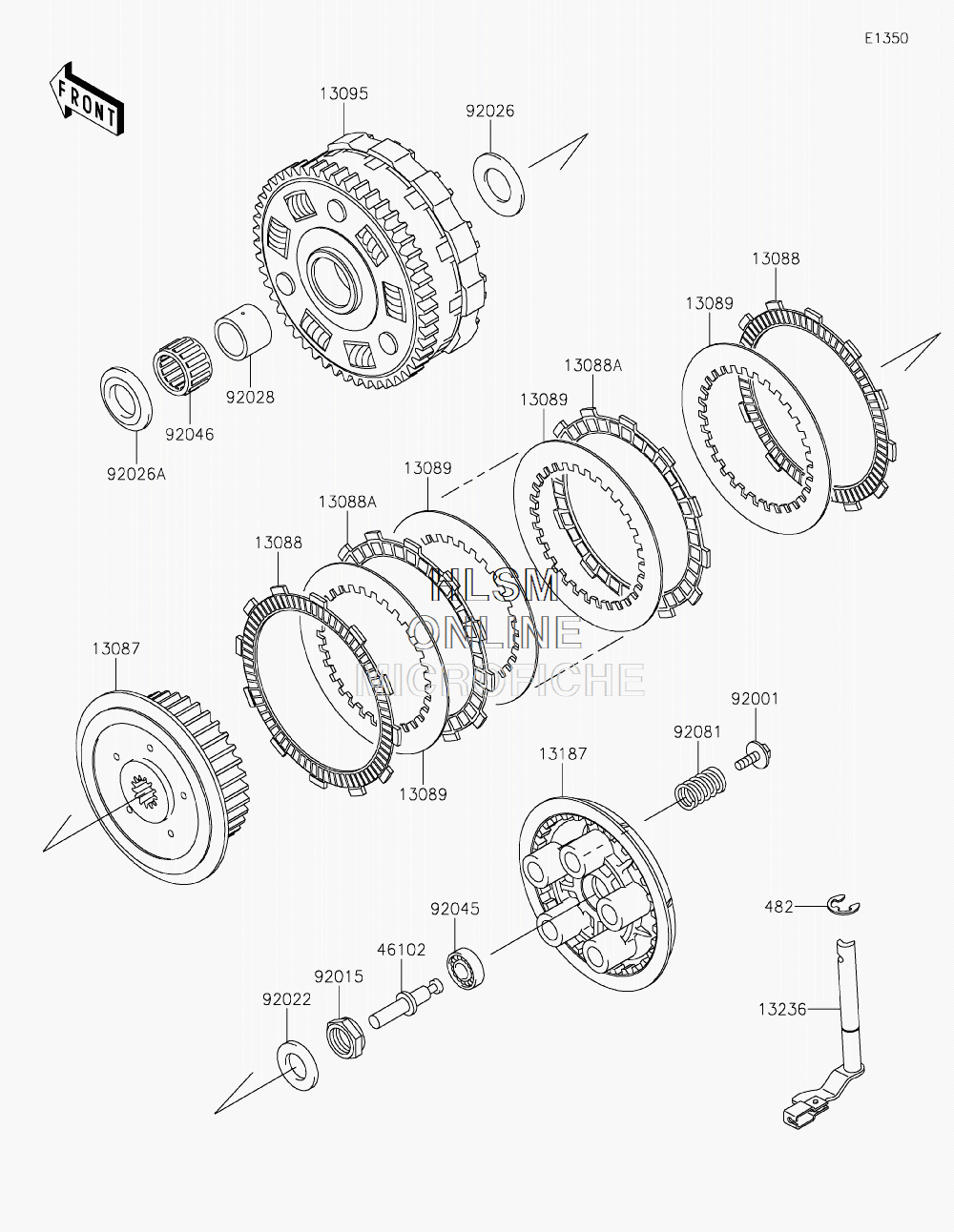

CLUTCH для Kawasaki VULCAN 900 CLASSIC LT (VN900DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1308713087-0042 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0023 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-1133 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-027 PLATE-CLUTCHPLATE-CLUTCH
-
1309513095-0092 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1318713187-1006 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1323613236-1269 LEVER-COMP, CLUTCH RELEASELEVER-COMP, CLUTCH RELEASE
-
4610246102-1374 ROD, PULLROD, PULL
-
482482J0100 CIRCLIP-TYPE-E, 10MMCIRCLIP-TYPE-E, 10MM
-
9200192001-1066 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1868 WASHER, 20.3X36X3.7WASHER, 20.3X36X3.7
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
92026A92026-116 SPACER, THRUST, T=5.5SPACER, THRUST, T=5.5
-
9202892028-178 BUSHING, 25X32X23.6BUSHING, 25X32X23.6
-
9204592045-1235 BEARING-BALL, 6001C3ML01BEARING-BALL, 6001C3ML01
-
9204692046-028 BEARING-NEEDLE, KTV323723BEARING-NEEDLE, KTV323723
-
9208192081-1033 SPRING, CLUTCHSPRING, CLUTCH
