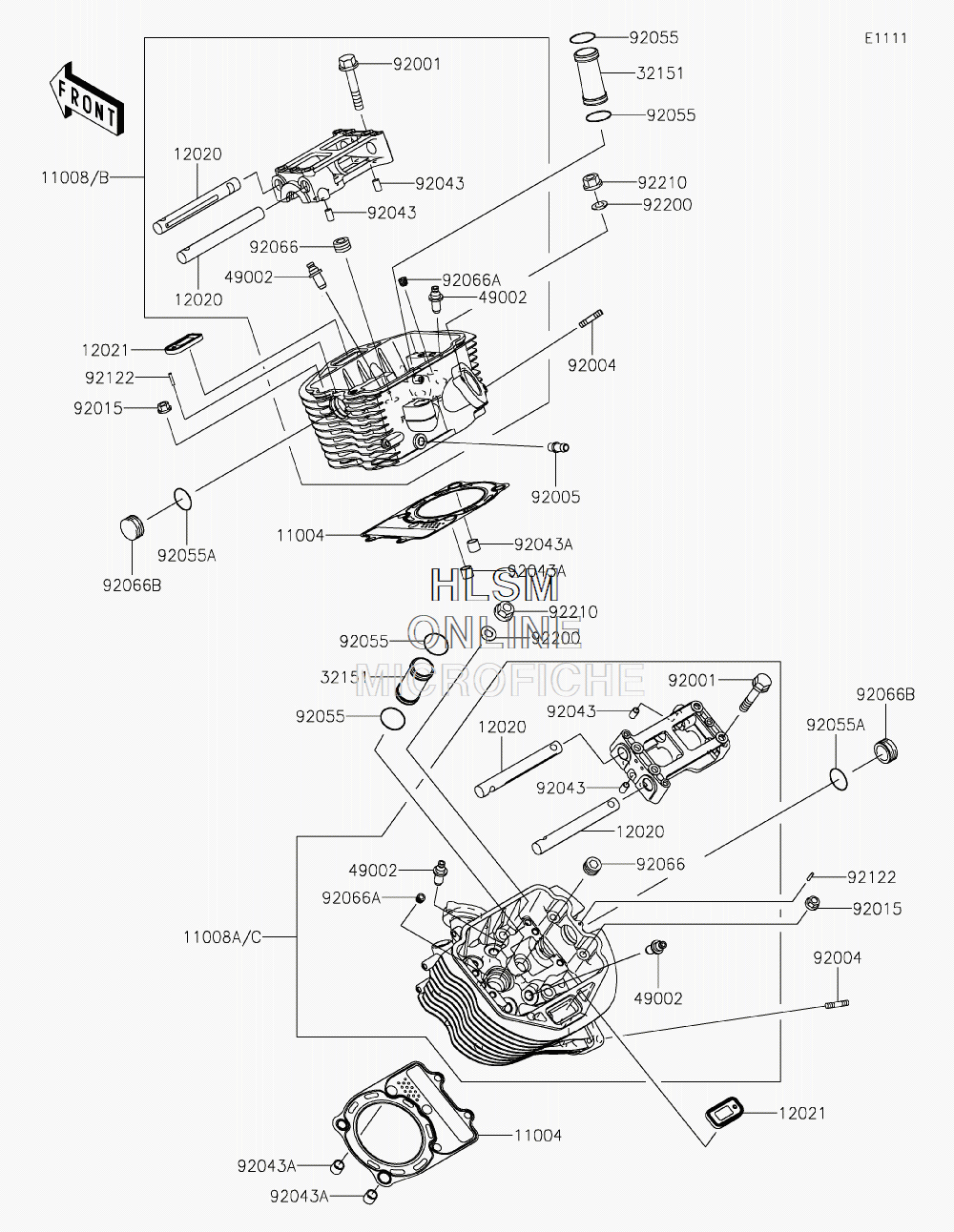

CYLINDER HEAD для Kawasaki VULCAN 900 CUSTOM (VN900CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1100411004-0062 GASKET-HEADGASKET-HEAD
-
11008B11008-0920 HEAD-COMP-CYLINDER, FRONTHEAD-COMP-CYLINDER, FRONT
-
11008C11008-0921 HEAD-COMP-CYLINDER, REARHEAD-COMP-CYLINDER, REAR
-
1202012020-1070 SHAFT-ROCKERSHAFT-ROCKER
-
1202112021-0017 VALVE-ASSY-REEDVALVE-ASSY-REED
-
3215132151-1893 PIPE, PLUGPIPE, PLUG
-
4900249002-1097 GUIDE-VALVEGUIDE-VALVE
-
9200192001-1005 BOLT, FLANGED, 8X58BOLT, FLANGED, 8X58
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
9200592005-1161 FITTING, BREATHER PIPEFITTING, BREATHER PIPE
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1266 PIN, 11X14X12.3PIN, 11X14X12.3
-
9205592055-0096 RING-O, 27.7X1.9RING-O, 27.7X1.9
-
92055A92055-0097 RING-O, 24.5X2.0RING-O, 24.5X2.0
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
92066A92066-1260 PLUG, PT1/4X8.9PLUG, PT1/4X8.9
-
92066B92066-1462 PLUG, CAM HOLEPLUG, CAM HOLE
-
9212292122-1126 ROLLER, 3X15.8ROLLER, 3X15.8
-
9220092200-0313 WASHER, 10.5X20.5X1.6WASHER, 10.5X20.5X1.6
-
9221092210-0269 NUT, FLANGED, M10X1.25NUT, FLANGED, M10X1.25
