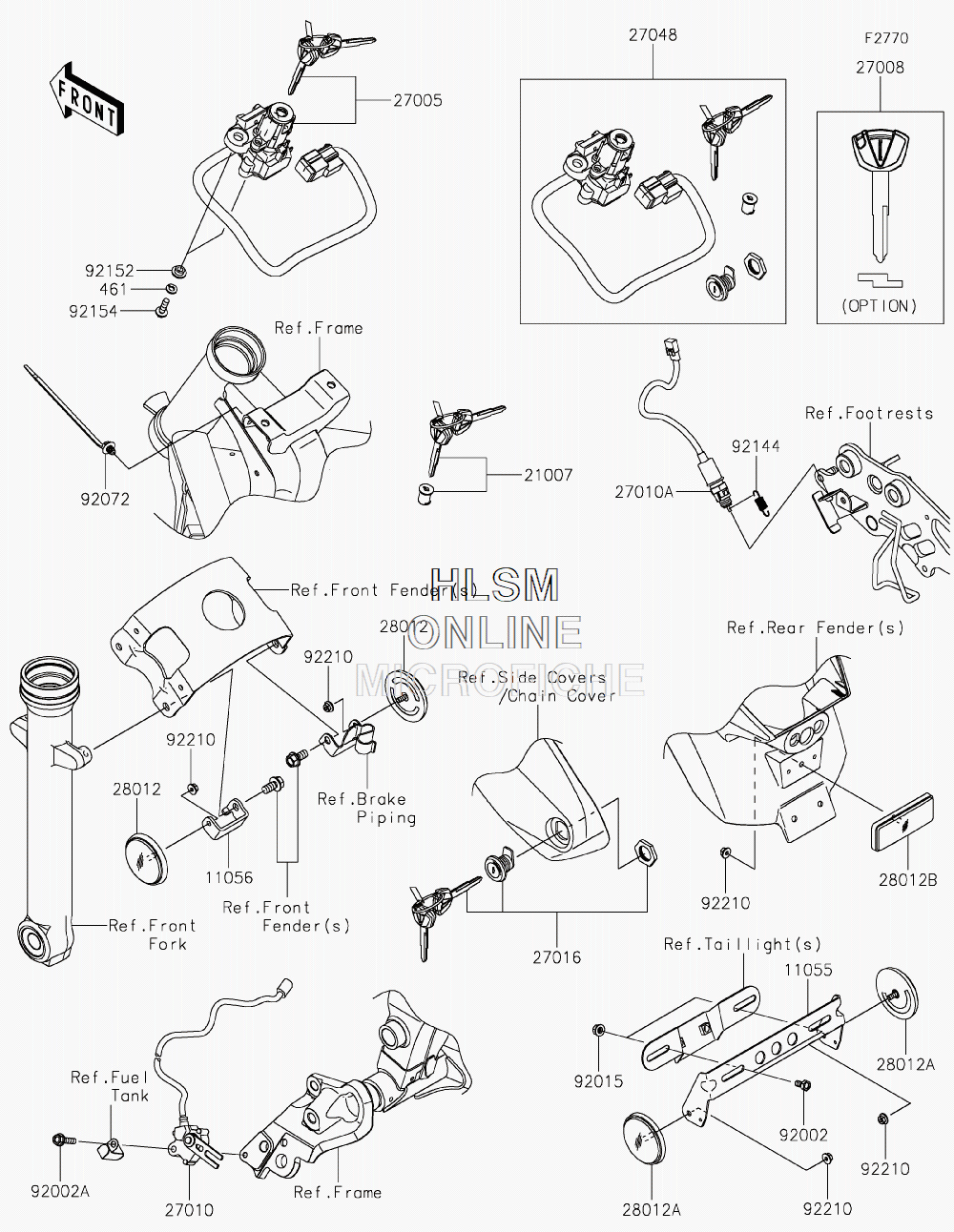

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki VULCAN S ABS (EN650DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105511055-1092 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1105611056-7698 BRACKET, REFLECTOR, LEFT HANDBRACKET, REFLECTOR, LEFT HAND
-
2100721007-5077 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0595 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0596 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0722 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-0760 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-5387 LOCK-ASSYLOCK-ASSY
-
2704827048-5053 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
461461DA0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
9200292002-1132 BOLT, 6X12BOLT, 6X12
-
92002A92002-1582 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9207292072-1414 BAND, OS170-FT7 (BLACK)BAND, OS170-FT7 (BLACK)
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215292152-1535 COLLAR, 6.15X10.15X6COLLAR, 6.15X10.15X6
-
9215492154-0107 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
