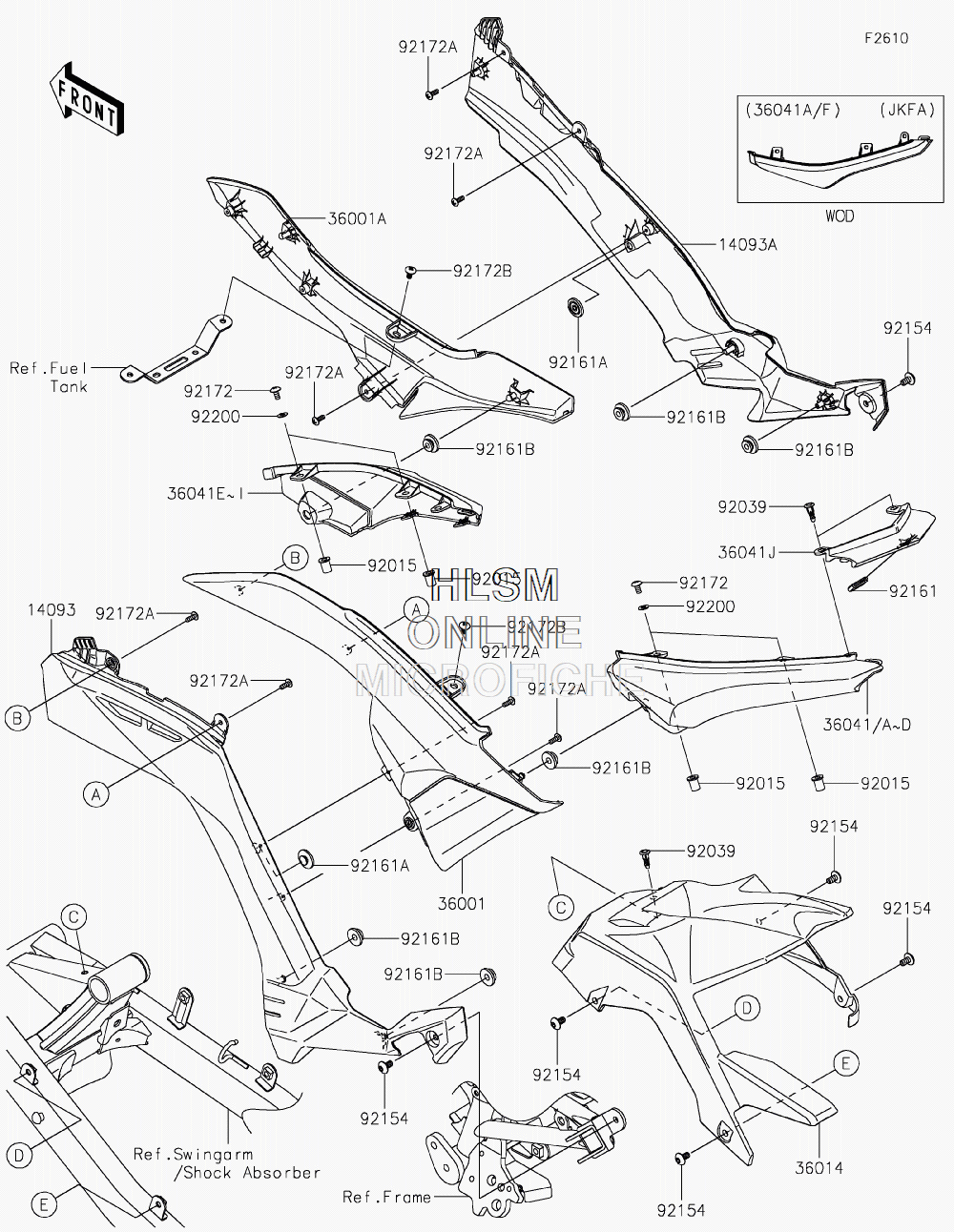

SIDE COVERS W/ CHAIN COVER для Kawasaki Z125 PRO (BR125JKF) - 2019 года выпуска
-
№АртикулНазвание
-
1409314093-0330-6Z COVER, PIVOT, LEFT HAND, (F.BLACK) (FOR ALL COLORS)COVER, PIVOT, LEFT HAND, (F.BLACK) (FOR ALL COLORS)
-
14093A14093-0331-6Z COVER, PIVOT, RIGHT HAND, (F.BLACK) (FOR ALL COLORS)COVER, PIVOT, RIGHT HAND, (F.BLACK) (FOR ALL COLORS)
-
3600136001-0634-6Z COVER-SIDE, LEFT HAND, (F.BLACK) (FOR ALL COLORS)COVER-SIDE, LEFT HAND, (F.BLACK) (FOR ALL COLORS)
-
36001A36001-0635-6Z COVER-SIDE, RIGHT HAND, (F.BLACK) (FOR ALL COLORS)COVER-SIDE, RIGHT HAND, (F.BLACK) (FOR ALL COLORS)
-
3601436014-0568 CASE-CHAINCASE-CHAIN
-
36041B36041-0020-62J COVER-TAIL, LEFT HAND, (C.S.F.ORANGE) (FOR 62J)COVER-TAIL, LEFT HAND, (C.S.F.ORANGE) (FOR 62J)
-
36041D36041-0020-H8 COVER-TAIL, LEFT HAND, (EBONY) (FOR H8)COVER-TAIL, LEFT HAND, (EBONY) (FOR H8)
-
36041G36041-0021-62J COVER-TAIL, RIGHT HAND, (C.S.F.ORANGE) (FOR 62J)COVER-TAIL, RIGHT HAND, (C.S.F.ORANGE) (FOR 62J)
-
36041I36041-0021-H8 COVER-TAIL, RIGHT HAND, (EBONY) (FOR H8)COVER-TAIL, RIGHT HAND, (EBONY) (FOR H8)
-
36041J36041-0022-6Z COVER-TAIL, (F.BLACK) (FOR ALL COLORS)COVER-TAIL, (F.BLACK) (FOR ALL COLORS)
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-0709 RIVETRIVET
-
9215492154-1484 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9216192161-1367 DAMPER, 12X23DAMPER, 12X23
-
92161A92161-1685 DAMPER, 8X22X10DAMPER, 8X22X10
-
92161B92161-1810 DAMPERDAMPER
-
9217292172-0322 SCREW, 5X16SCREW, 5X16
-
92172A92172-0959 SCREW, 4X12SCREW, 4X12
-
92172B92172-1090 SCREW, 5X10SCREW, 5X10
-
9220092200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
