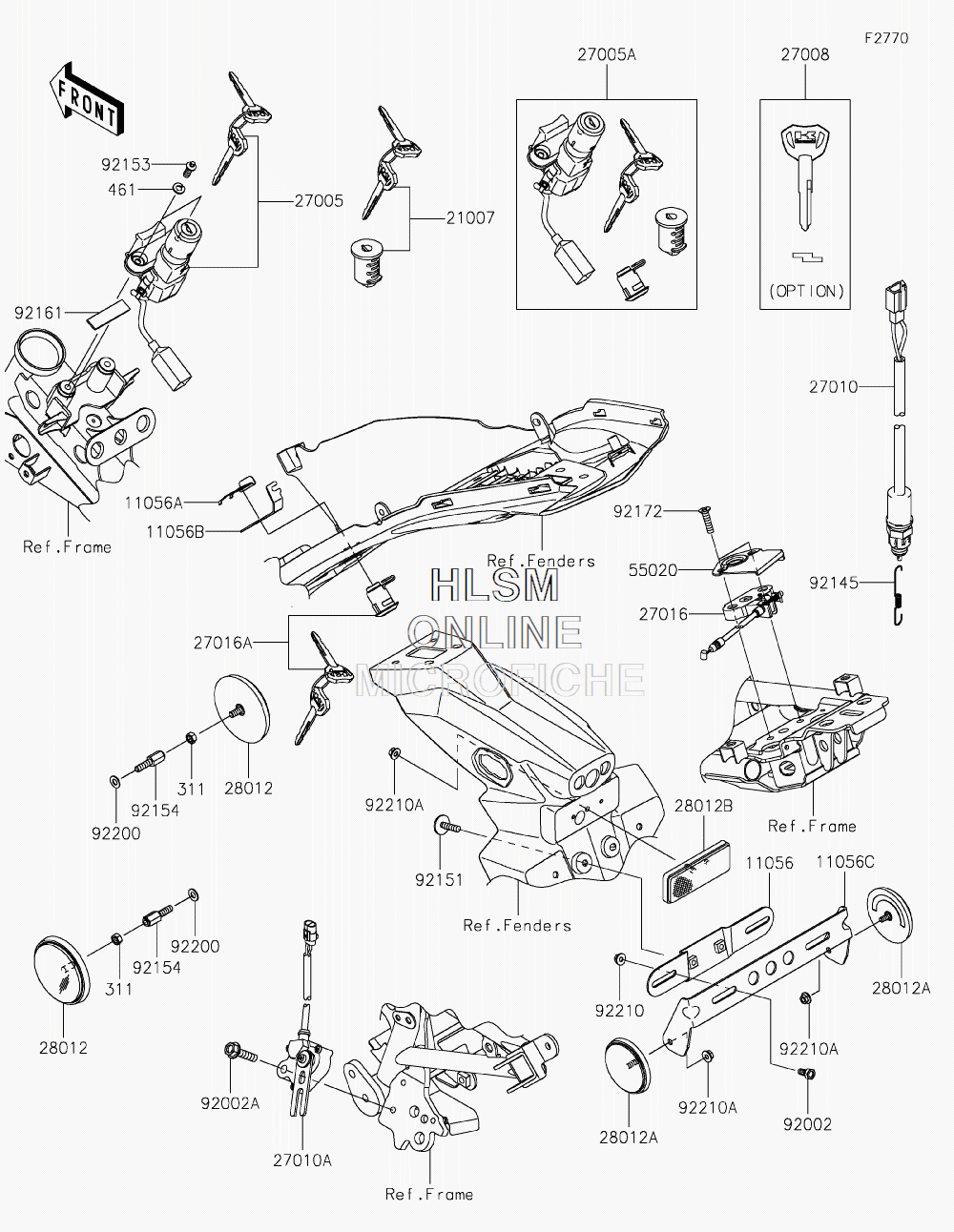

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Z125 PRO (BR125JKFA) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-0139 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
11056A11056-0238 BRACKET, CLASPBRACKET, CLASP
-
11056B11056-2119 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
11056C11056-7906 BRACKETBRACKET
-
2100721007-5081 ROTORROTOR
-
2700527005-0612 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
27005A27005-5158 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0559 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0828 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-0829 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701627016-0081 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5393 LOCK-ASSYLOCK-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
311311AB0500 NUT-HEX, 5MMNUT-HEX, 5MM
-
461461DA0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
5502055020-0554 GUARD, SEAT LOCKGUARD, SEAT LOCK
-
9200292002-1132 BOLT, 6X12BOLT, 6X12
-
92002A92002-1582 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9214592145-1723 SPRINGSPRING
-
9215192151-1241 BOLT, 6X25BOLT, 6X25
-
9215392153-0967 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9215492154-2193 BOLT, 6X20BOLT, 6X20
-
9216192161-1359 DAMPERDAMPER
-
9217292172-0965 SCREW, 6X25SCREW, 6X25
-
9220092200-0796 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9221092210-1514 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92210A92210-1607 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
