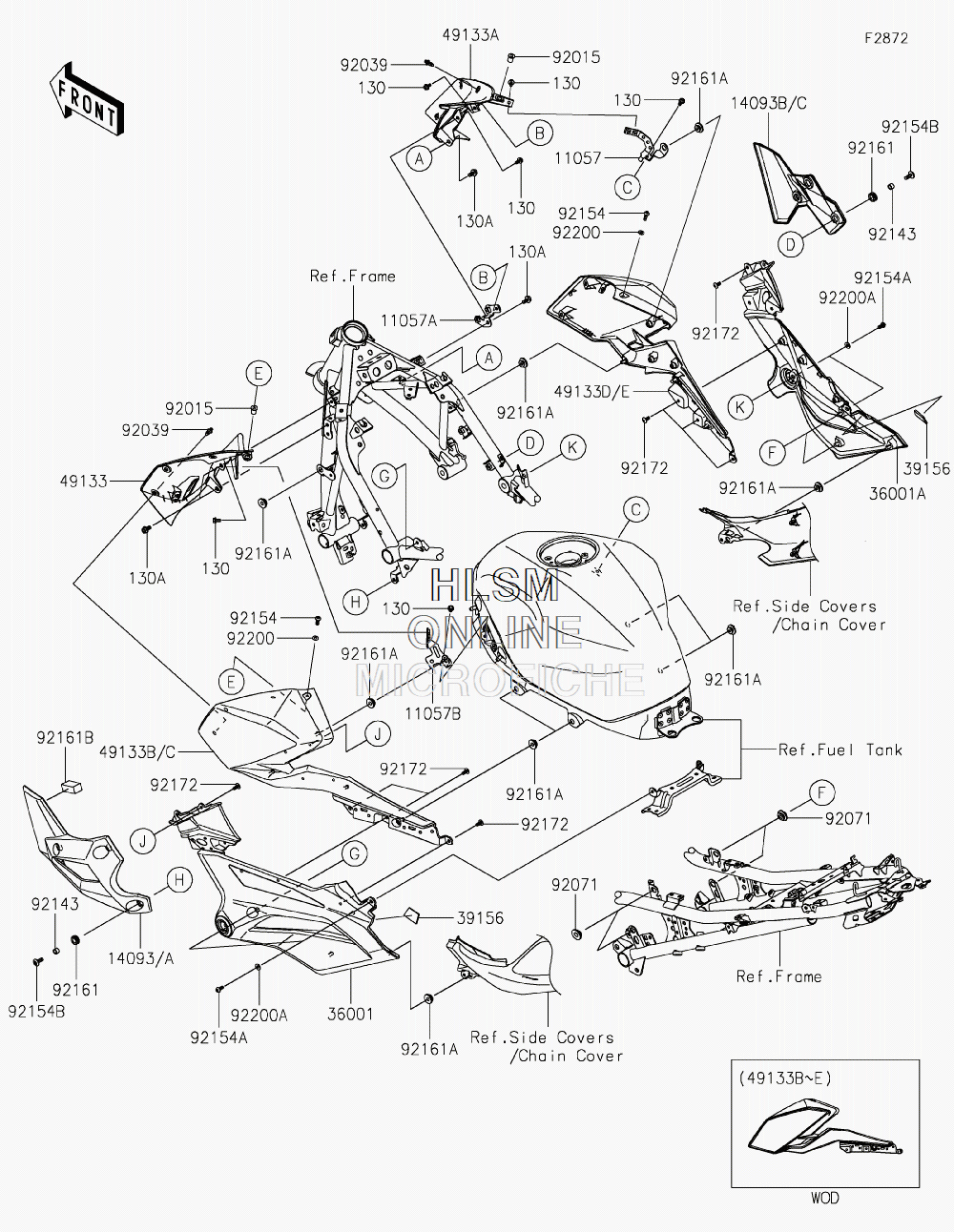

SHROUDS для Kawasaki Z400 (ER400DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-1720 BRACKET, SHROUD, INNER, RIGHT HAND, UPPERBRACKET, SHROUD, INNER, RIGHT HAND, UPPER
-
11057A11057-1721 BRACKET, SHROUD, INNER, RIGHT HAND, LOWERBRACKET, SHROUD, INNER, RIGHT HAND, LOWER
-
11057B11057-2971 BRACKET, SHROUD, INNER, LEFT HANDBRACKET, SHROUD, INNER, LEFT HAND
-
130130BA0510 BOLT-FLANGED, 5X10BOLT-FLANGED, 5X10
-
130A130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1409314093-0746-660 COVER, RADIATOR, LEFT HAND, (M.S.BLACK) (FOR 25Y/51P)COVER, RADIATOR, LEFT HAND, (M.S.BLACK) (FOR 25Y/51P)
-
14093A14093-0746-739 COVER, RADIATOR, LEFT HAND, (M.F.S.BLACK) (FOR L1)COVER, RADIATOR, LEFT HAND, (M.F.S.BLACK) (FOR L1)
-
14093B14093-0747-660 COVER, RADIATOR, RIGHT HAND, (M.S.BLACK) (FOR 25Y/51P)COVER, RADIATOR, RIGHT HAND, (M.S.BLACK) (FOR 25Y/51P)
-
14093C14093-0747-739 COVER, RADIATOR, RIGHT HAND, (M.F.S.BLACK) (FOR L1)COVER, RADIATOR, RIGHT HAND, (M.F.S.BLACK) (FOR L1)
-
3600136001-0670 COVER-SIDE, LEFT HANDCOVER-SIDE, LEFT HAND
-
36001A36001-0671 COVER-SIDE, RIGHT HANDCOVER-SIDE, RIGHT HAND
-
3915639156-2469 PADPAD
-
4913349133-0029 SHROUD, INNER, LEFT HANDSHROUD, INNER, LEFT HAND
-
49133A49133-0030 SHROUD, INNER, RIGHT HANDSHROUD, INNER, RIGHT HAND
-
49133B49133-0031-660 SHROUD, OUTER, LEFT HAND, (M.S.BLACK) (FOR 25Y/51P)SHROUD, OUTER, LEFT HAND, (M.S.BLACK) (FOR 25Y/51P)
-
49133C49133-0031-739 SHROUD, OUTER, LEFT HAND, (M.F.S.BLACK) (FOR L1)SHROUD, OUTER, LEFT HAND, (M.F.S.BLACK) (FOR L1)
-
49133D49133-0032-660 SHROUD, OUTER, RIGHT HAND, (M.S.BLACK) (FOR 25Y/51P)SHROUD, OUTER, RIGHT HAND, (M.S.BLACK) (FOR 25Y/51P)
-
49133E49133-0032-739 SHROUD, OUTER, RIGHT HAND, (M.F.S.BLACK) (FOR L1)SHROUD, OUTER, RIGHT HAND, (M.F.S.BLACK) (FOR L1)
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-0060 RIVETRIVET
-
9207192071-0766 GROMMET, 20X24X7.5GROMMET, 20X24X7.5
-
9214392143-1407 COLLAR, 6.8X10X7COLLAR, 6.8X10X7
-
9215492154-0209 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154A92154-1421 BOLT, SOCKET, 5X12BOLT, SOCKET, 5X12
-
92154B92154-3838 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9216192161-0266 DAMPERDAMPER
-
92161A92161-1531 DAMPERDAMPER
-
92161B92161-2260 DAMPER, 15X40X20DAMPER, 15X40X20
-
9217292172-0821 SCREW, 5X12SCREW, 5X12
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
-
92200A92200-2211 WASHER, 5.3X13X1.2WASHER, 5.3X13X1.2
