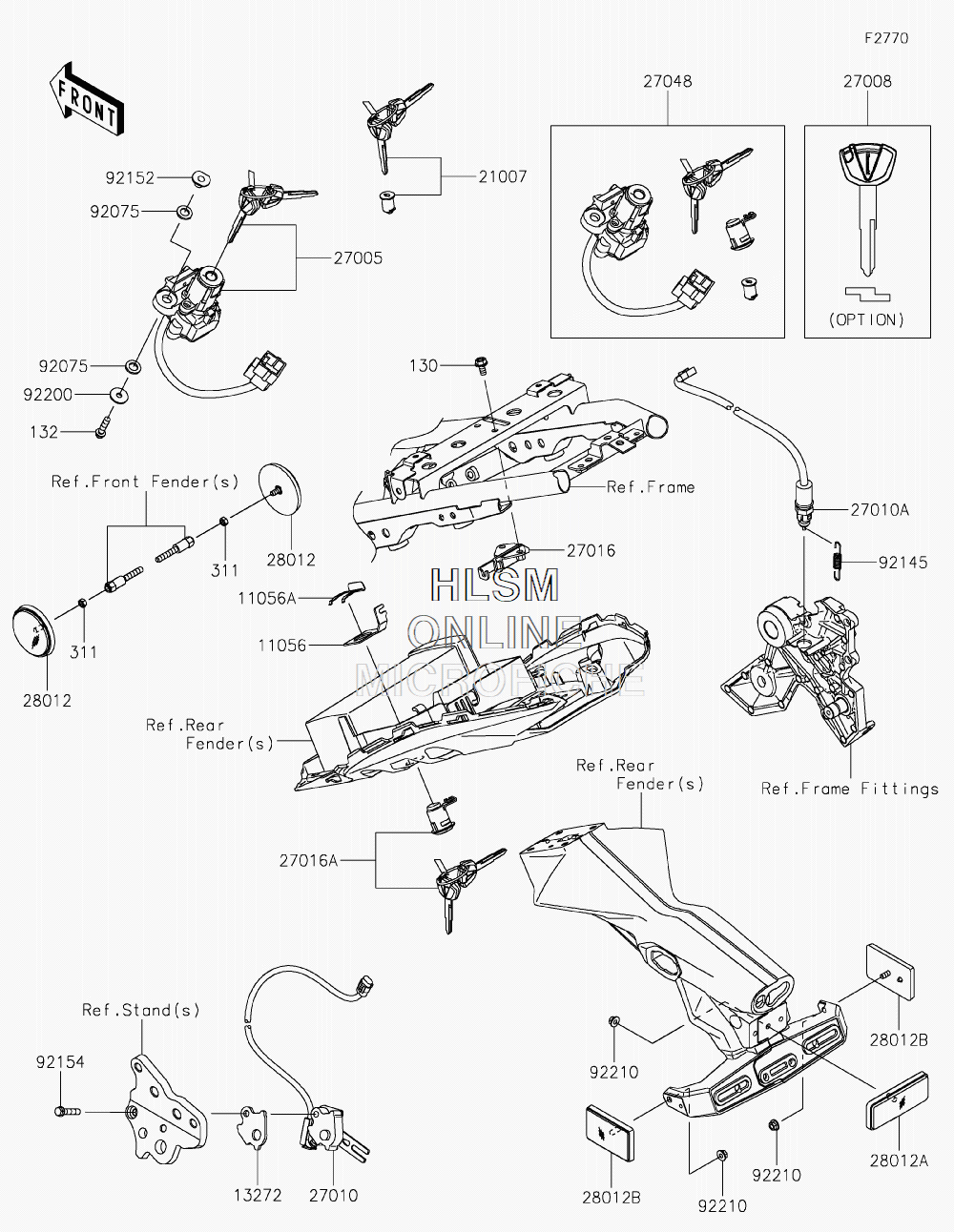

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Z650 (ER650GKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-0237 BRACKETBRACKET
-
11056A11056-0238 BRACKET, CLASPBRACKET, CLASP
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
132132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
1327213272-1330 PLATEPLATE
-
2100721007-5077 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0624 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0596 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0845 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-0857 SWITCH, BRAKESWITCH, BRAKE
-
2701627016-0008 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5386 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2704827048-5113 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
311311AB0500 NUT-HEX, 5MMNUT-HEX, 5MM
-
9207592075-1564 DAMPERDAMPER
-
9214592145-0946 SPRING, REAR BRAKESPRING, REAR BRAKE
-
9215292152-1971 COLLAR, 6X9X10.6COLLAR, 6X9X10.6
-
9215492154-1040 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
9220092200-0780 WASHER, 6X20X1.6WASHER, 6X20X1.6
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
