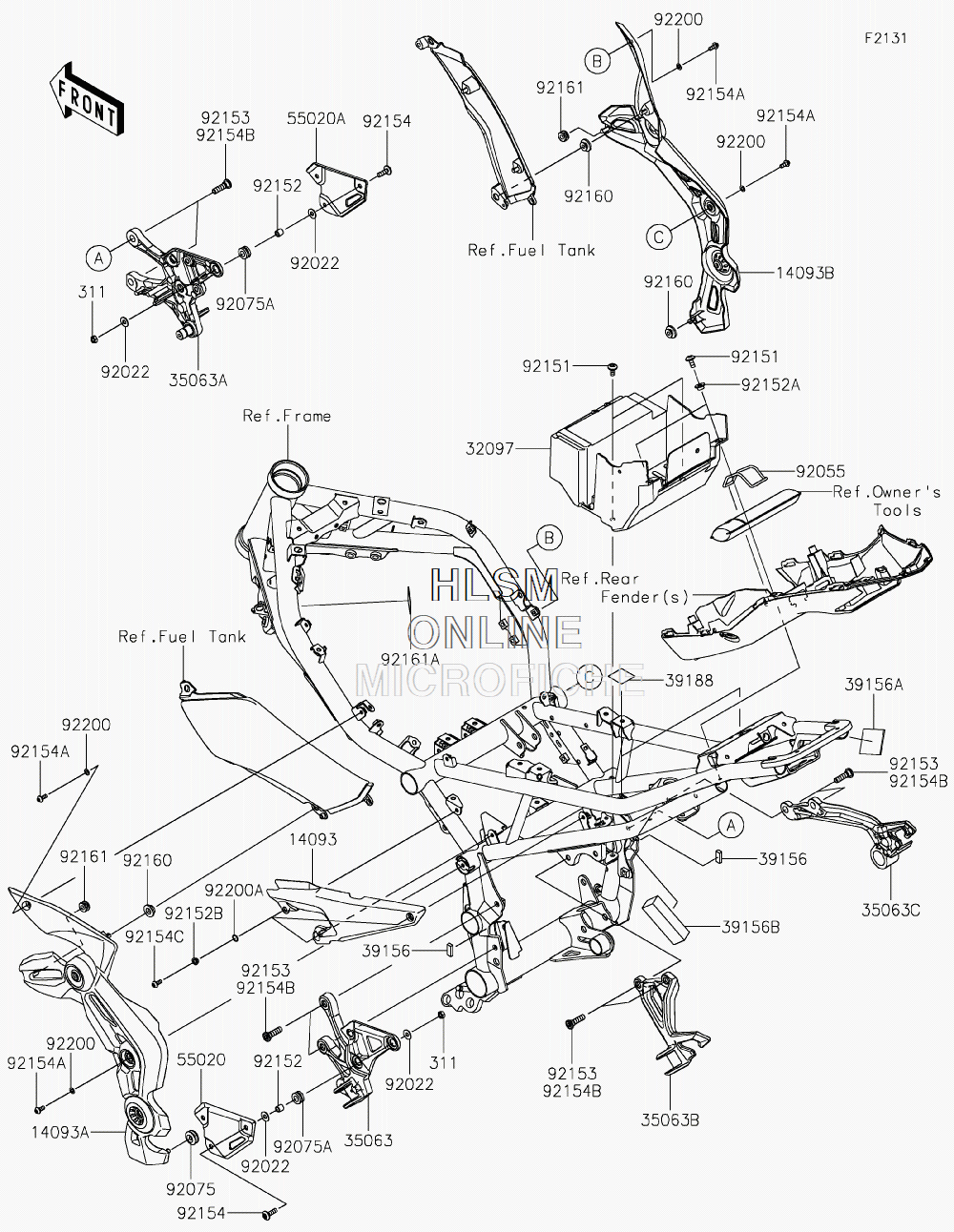

FRAME FITTINGS для Kawasaki Z900 (ZR900AKF) - 2019 года выпуска
-
№АртикулНазвание
-
1409314093-0511 COVER, HARNESS, LEFT HANDCOVER, HARNESS, LEFT HAND
-
14093A14093-5194-54N COVER, PIVOT, LEFT HAND, (B.SILVERCOVER, PIVOT, LEFT HAND, (B.SILVER
-
14093B14093-5195-54N COVER, PIVOT, RIGHT HAND, (B.SILVER)COVER, PIVOT, RIGHT HAND, (B.SILVER)
-
311311AA0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
3209732097-0045 CASE-BATTERYCASE-BATTERY
-
3506335063-1399-18R STAY, STEP, FRONT, LEFT HAND, (F.S.BLACK)STAY, STEP, FRONT, LEFT HAND, (F.S.BLACK)
-
35063A35063-1442-18R STAY, STEP, FRONT, RIGHT HAND, (F.S.BLACK)STAY, STEP, FRONT, RIGHT HAND, (F.S.BLACK)
-
35063B35063-1452-18R STAY, STEP, REAR, LEFT HAND, (F.S.BLACK)STAY, STEP, REAR, LEFT HAND, (F.S.BLACK)
-
35063C35063-1453-18R STAY, STEP, REAR, RIGHT HAND, (F.S.BLACK)STAY, STEP, REAR, RIGHT HAND, (F.S.BLACK)
-
3915639156-2176 PAD, 8X20X5PAD, 8X20X5
-
39156A39156-2177 PAD, 40X60X2PAD, 40X60X2
-
39156B39156-2217 PAD, 25X80X20PAD, 25X80X20
-
3918839188-0566 TAPE, 30X30TAPE, 30X30
-
5502055020-1962 GUARD, HEEL, LEFT HANDGUARD, HEEL, LEFT HAND
-
55020A55020-1963 GUARD, HEEL, RIGHT HANDGUARD, HEEL, RIGHT HAND
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9205592055-0873 RING-O, 62.6X3.5RING-O, 62.6X3.5
-
9207592075-1067 DAMPERDAMPER
-
92075A92075-1409 DAMPERDAMPER
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215292152-2280 COLLAR, 6.3X9.5X9.2COLLAR, 6.3X9.5X9.2
-
92152A92152-2287 COLLAR, 6.5X10X6.4COLLAR, 6.5X10X6.4
-
92152B92152-2354 COLLAR, 5.7X8.5X4.5COLLAR, 5.7X8.5X4.5
-
9215392153-1624 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215492154-0918 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92154A92154-1421 BOLT, SOCKET, 5X12BOLT, SOCKET, 5X12
-
92154C92154-2678 BOLT, SOCKET, 5X12, MECBOLT, SOCKET, 5X12, MEC
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0864 DAMPERDAMPER
-
92161A92161-1432 DAMPER, 25X40, T1.0DAMPER, 25X40, T1.0
-
9220092200-1730 WASHER, 5.2X10X0.5WASHER, 5.2X10X0.5
-
92200A92200-1888 WASHER, 8.8X11.5X0.5WASHER, 8.8X11.5X0.5
