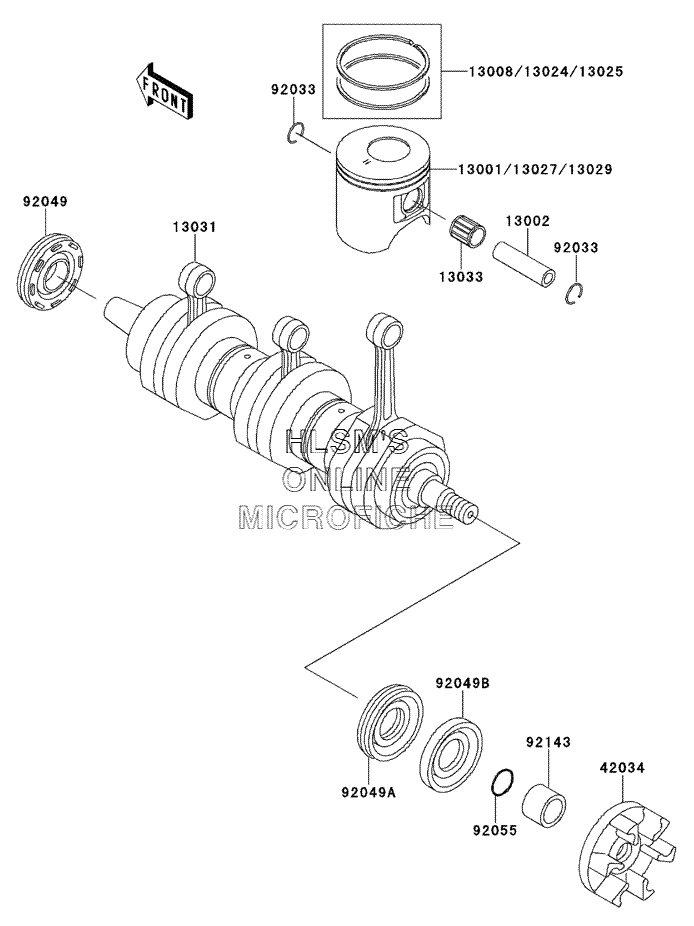

CRANKSHAFT/PISTON(S) для Kawasaki 1100 STX D.I. (JT1100-C1) - 2000 года выпуска
-
№АртикулНазвание
-
1300113001-3734 PISTON, ENGINE (STD)PISTON, ENGINE (STD)
-
1300213002-3708 PIN, PISTONPIN, PISTON
-
1300813008-3708 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
1302413024-3706 RING, SET, PISTON (O/S 1.00)RING, SET, PISTON (O/S 1.00)
-
1302513025-3706 RING, SET, PISTON (O/S 0.50)RING, SET, PISTON (O/S 0.50)
-
1302713027-3717 PISTON, ENGINE (O/S 1.00)PISTON, ENGINE (O/S 1.00)
-
1302913029-3717 PISTON, ENGINE (O/S 0.50)PISTON, ENGINE (O/S 0.50)
-
1303113031-3731 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303313033-3703 BEARING, SMALL ENDBEARING, SMALL END
-
4203442034-3709 COUPLINGCOUPLING
-
9203392033-3721 RING, SNAPRING, SNAP
-
9204992049-3713 SEAL, OIL, FWJ7307210ZSSEAL, OIL, FWJ7307210ZS
-
92049A92049-3715 SEAL, OILSEAL, OIL
-
92049B92049-3716 SEAL, OILSEAL, OIL
-
9205592055-3740 O-RING, 20.8X2.4O-RING, 20.8X2.4
-
9214392143-3745 COLLARCOLLAR
