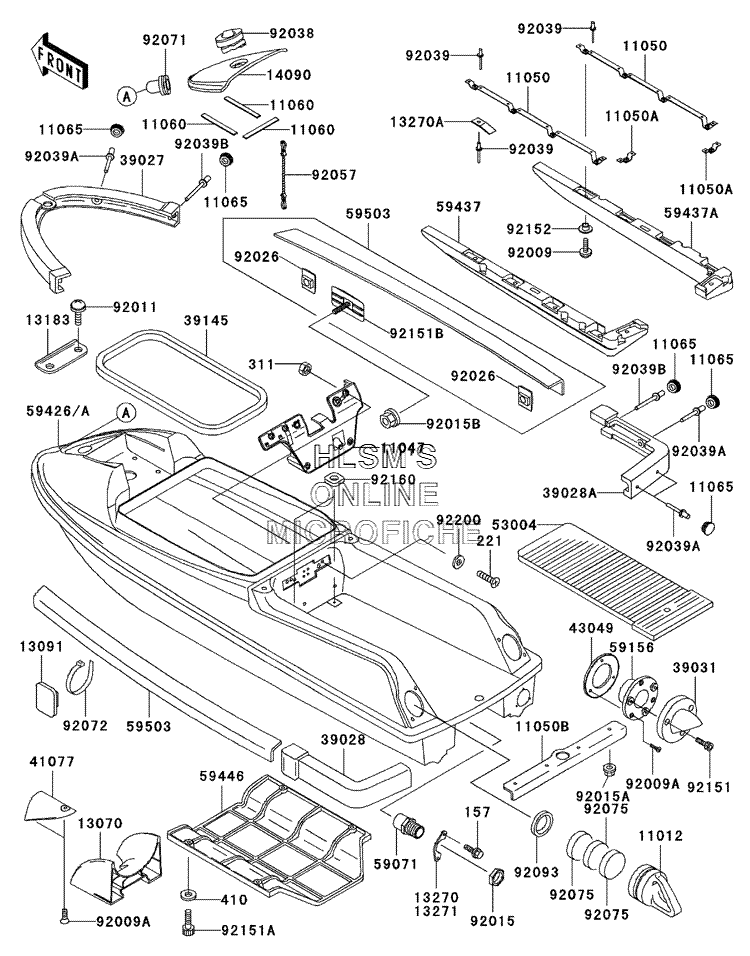

HULL для Kawasaki SXI PRO (JS750-C4) - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-3752-6Z CAP (F.BLACK)CAP (F.BLACK)
-
1104711047-3745 BRACKET, CONTROL KNOBBRACKET, CONTROL KNOB
-
1105011050-3730 BRACKET, STABILIZERBRACKET, STABILIZER
-
11050A11050-3731 BRACKET, STABILIZERBRACKET, STABILIZER
-
11050B11050-3752 BRACKETBRACKET
-
1106011060-3722 GASKETGASKET
-
1106511065-3707-6Z CAP (F.BLACK)CAP (F.BLACK)
-
1307013070-3708 GUIDE, INTAKEGUIDE, INTAKE
-
1309113091-3764 HOLDER, BANDHOLDER, BAND
-
1318313183-3787 PLATEPLATE
-
13270A13270-3906 PLATEPLATE
-
1327113271-3789 PLATEPLATE
-
1409014090-3707-5M COVER, TANK CAP (BLACK MICA)COVER, TANK CAP (BLACK MICA)
-
3902739027-3740-6Z BUMPER, FRONT (F.BLACK)BUMPER, FRONT (F.BLACK)
-
3902839028-3750-6Z BUMPER, REAR (LEFT) (F.BLACK)BUMPER, REAR (LEFT) (F.BLACK)
-
39028A39028-3751-6Z BUMPER, REAR (RIGHT) (F.BLACK)BUMPER, REAR (RIGHT) (F.BLACK)
-
3903139031-3705 CAP, ENDCAP, END
-
3914539145-3731 TRIM, SEALTRIM, SEAL
-
4107741077-3701 ADAPTERADAPTER
-
4304943049-3717 PACKING, TCV25X45X11PACKING, TCV25X45X11
-
5300453004-3801 MAT, DECKMAT, DECK
-
5907159071-3763 JOINTJOINT
-
5915659156-3722 PIPE, TAILPIPE, TAIL
-
5942659426-3897-22 HULL, COMP (J.WHITE) (US ONLY)HULL, COMP (J.WHITE) (US ONLY)
-
5943759437-3715-8U STABILIZER (LEFT) (J.WHITE)STABILIZER (LEFT) (J.WHITE)
-
59437A59437-3716-8U STABILIZER (RIGHT) (J.WHITE)STABILIZER (RIGHT) (J.WHITE)
-
5944659446-3748 COVER, JET PUMPCOVER, JET PUMP
-
5950359503-3705-6Z FENDER, BOAT (F.BLACK)FENDER, BOAT (F.BLACK)
-
9200992009-3830 SCREW, 6X15SCREW, 6X15
-
92009A92009-3842 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
9201192011-561 SCREW, TAPPINGSCREW, TAPPING
-
9201592015-3738 NUT, 20MMNUT, 20MM
-
92015A92015-3767 NUT, 6MMNUT, 6MM
-
92015B92015-3768 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9202692026-3740 SPACERSPACER
-
9203892038-3707 KEY, TANK CAPKEY, TANK CAP
-
157157R0518 BOLT, WSP, 5X18BOLT, WSP, 5X18
-
221221R0620 SCREW, CSK, CROS, 6X20SCREW, CSK, CROS, 6X20
-
311311R0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
9203992039-3714 RIVETRIVET
-
92039A92039-3747 RIVETRIVET
-
92039B92039-3770 RIVETRIVET
-
9205792057-3704 CHAIN, COVER, L=100CHAIN, COVER, L=100
-
9207192071-3780 GROMMETGROMMET
-
9207292072-3768 BAND, L=148BAND, L=148
-
9207592075-3719 DAMPERDAMPER
-
9209392093-3704 SEAL, OSR70X82X7.5SEAL, OSR70X82X7.5
-
9215192151-3746 BOLT, SOCKET, M6, SHOULDERBOLT, SOCKET, M6, SHOULDER
-
92151A92151-3774 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92151B92151-3778 BOLTBOLT
-
9215292152-3704 COLLARCOLLAR
-
9216092160-3797 DAMPERDAMPER
-
9220092200-3720 WASHERWASHER
