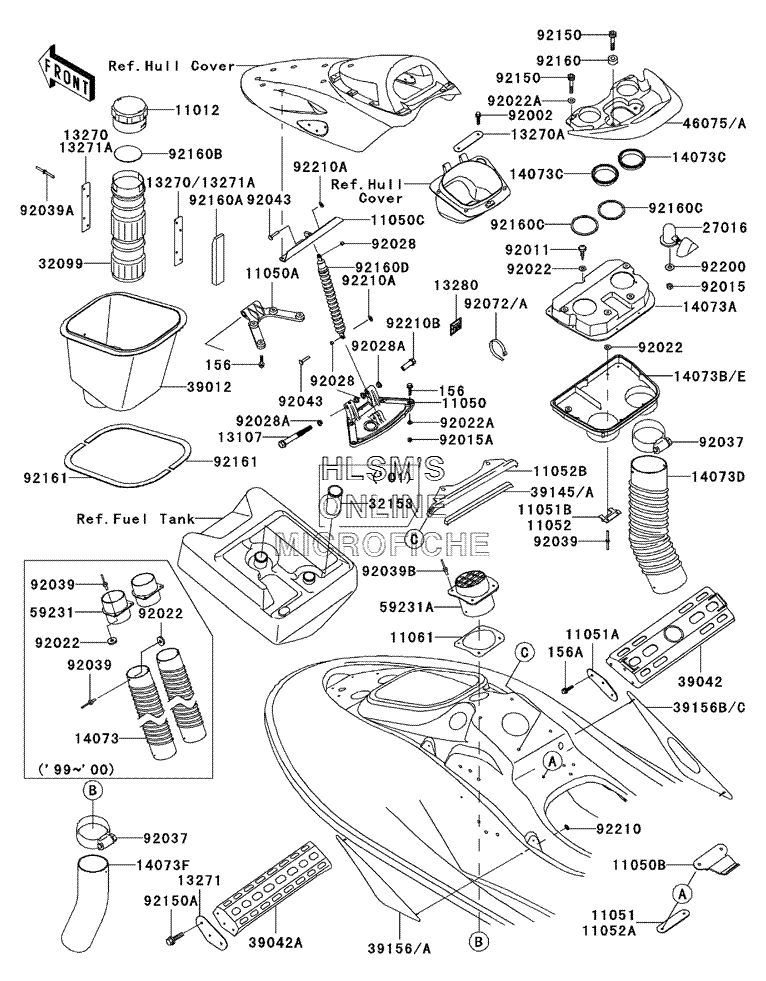

HULL FITTINGS для Kawasaki ULTRA 150 (JH1200-A3) - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-3766 CAP, FIRE EXTINGUISHERCAP, FIRE EXTINGUISHER
-
1105011050-3743 BRACKETBRACKET
-
11050A11050-3744 BRACKETBRACKET
-
11050B11050-3775 BRACKETBRACKET
-
11050C11050-3778 BRACKETBRACKET
-
11051A11051-3760 BRACKETBRACKET
-
1105211052-3730 BRACKETBRACKET
-
11052A11052-3731 BRACKETBRACKET
-
11052B11052-3748 BRACKETBRACKET
-
1106111061-3703 GASKET, FRONT DUCTGASKET, FRONT DUCT
-
1310713107-3767 SHAFTSHAFT
-
13270A13270-3909 PLATEPLATE
-
1327113271-3743 PLATE, CROSSMEMBERPLATE, CROSSMEMBER
-
13271A13271-3775 PLATE, FIRE EXTINGUISHERPLATE, FIRE EXTINGUISHER
-
1328013280-3706 HOLDERHOLDER
-
14073A14073-3767 DUCT, REAR, UPPERDUCT, REAR, UPPER
-
14073C14073-3769 DUCTDUCT
-
14073D14073-3771 DUCTDUCT
-
14073E14073-3782 DUCT, REAR, LOWERDUCT, REAR, LOWER
-
14073F14073-3784 DUCT, FRONTDUCT, FRONT
-
2701627016-3744-6Z LOCK, ASSY., SEAT (F.BLACK)LOCK, ASSY., SEAT (F.BLACK)
-
3209932099-3769 CASE, FIRE EXTINGUISHERCASE, FIRE EXTINGUISHER
-
3215332153-3713 PIPEPIPE
-
3901239012-3721 CASE, STORAGECASE, STORAGE
-
3904239042-3707 CROSSMEMBER, FRONTCROSSMEMBER, FRONT
-
39042A39042-3708 CROSSMEMBER, REARCROSSMEMBER, REAR
-
39145A39145-3779 TRIM, SEAL, L=340TRIM, SEAL, L=340
-
39156A39156-3823-6Z PAD (LEFT) (F.BLACK)PAD (LEFT) (F.BLACK)
-
39156C39156-3825-6Z PAD (RIGHT) (F.BLACK)PAD (RIGHT) (F.BLACK)
-
46075A46075-3746-6Z GRIP, TAIL (F.BLACK)GRIP, TAIL (F.BLACK)
-
156156R0620 BOLT, WP, 6X20BOLT, WP, 6X20
-
156A156R0625 BOLT, WP, 6X25BOLT, WP, 6X25
-
59231A59231-3725 FILLERFILLER
-
9200292002-3714 BOLT, 6X25BOLT, 6X25
-
9201192011-562 SCREWSCREW
-
9201592015-3709 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-3767 NUT, 6MMNUT, 6MM
-
9202292022-3041 WASHER, 5X16X1.5WASHER, 5X16X1.5
-
92022A92022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9202892028-3765 BUSHINGBUSHING
-
92028A92028-3770 BUSHINGBUSHING
-
9203792037-3733 CLAMP, MAX120.7MMCLAMP, MAX120.7MM
-
9203992039-3747 RIVETRIVET
-
92039A92039-3755 RIVETRIVET
-
92039B92039-3775 RIVETRIVET
-
9204392043-3748 PIN, 6X33PIN, 6X33
-
92072A92072-3857 BANDBAND
-
9215092150-3822 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
92150A92150-3828 BOLT, 8X30BOLT, 8X30
-
9216092160-3738 DAMPERDAMPER
-
92160A92160-3814 DAMPERDAMPER
-
92160B92160-3821 DAMPERDAMPER
-
92160C92160-3910 DAMPERDAMPER
-
92160D92160-3919 DAMPERDAMPER
-
9216192161-3714 DAMPERDAMPER
-
9220092200-3717 WASHER, 8.5X25X1.5WASHER, 8.5X25X1.5
-
9221092210-3734 NUT, SPEED, 3MMNUT, SPEED, 3MM
-
92210A92210-3739 NUT, SPEED, 6MMNUT, SPEED, 6MM
-
92210B92210-3748 NUT, 8MMNUT, 8MM
