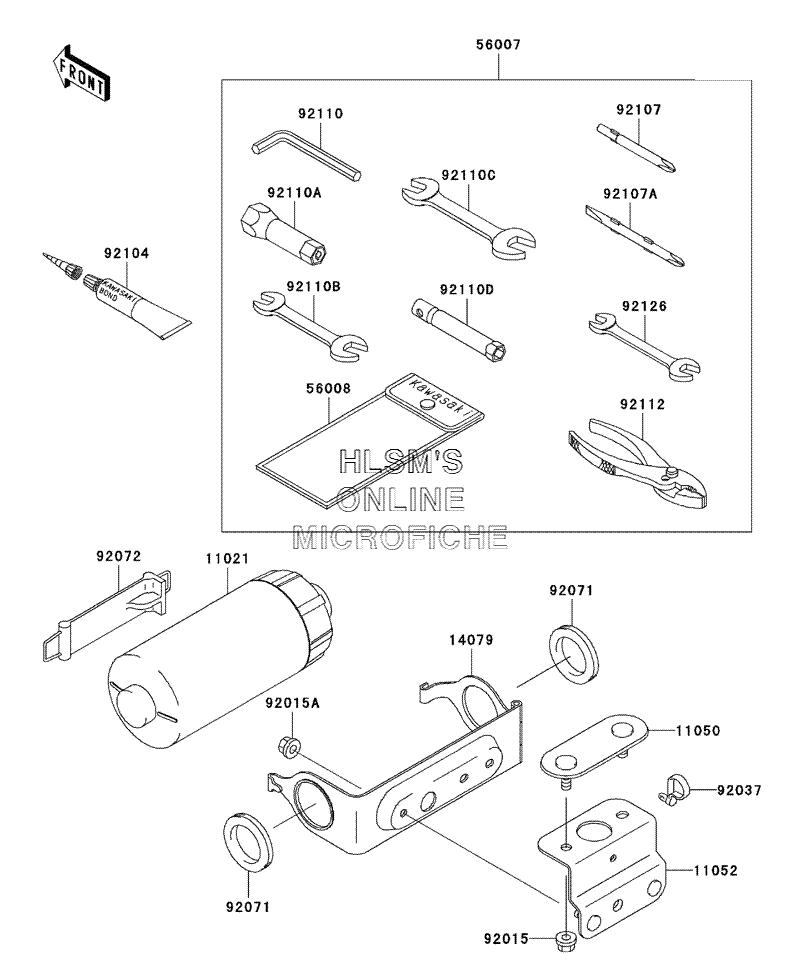

OWNER TOOLS для Kawasaki 900 STS (JT900-B4) - 2002 года выпуска
-
№АртикулНазвание
-
1102111021-3706 CASE, ASSY., TOOLCASE, ASSY., TOOL
-
1105011050-3785 BRACKET, DECK, UPPERBRACKET, DECK, UPPER
-
1105211052-3720 BRACKET, DECK, INSIDEBRACKET, DECK, INSIDE
-
1407914079-3716 HOLDER, ASSY., TOOL CASEHOLDER, ASSY., TOOL CASE
-
5600756007-3711 TOOL, KITTOOL, KIT
-
5600856008-006 BAG, TOOLBAG, TOOL
-
9201592015-3709 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-3767 NUT, 6MMNUT, 6MM
-
9203792037-1290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
9207192071-3831 GROMMETGROMMET
-
9207292072-3842 BAND, TOOL CASEBAND, TOOL CASE
-
9210492104-002 GASKET, LIQUID, TUBE, 100G (SILVER) (OPT)GASKET, LIQUID, TUBE, 100G (SILVER) (OPT)
-
9210792107-005 TOOL, DRIVER, #3 PHILLIPSTOOL, DRIVER, #3 PHILLIPS
-
92107A92107-1051 TOOL, DRIVER, #2 PHILLIPS AND SLOTTOOL, DRIVER, #2 PHILLIPS AND SLOT
-
9211092110-1015 TOOL, WRENCH, ALLEN, 5MMTOOL, WRENCH, ALLEN, 5MM
-
92110A92110-1113 TOOL, WRENCH, BOX, 21MMTOOL, WRENCH, BOX, 21MM
-
92110B92110-1152 TOOL, WRENCH, OPEN END, 10X12TOOL, WRENCH, OPEN END, 10X12
-
92110C92110-1153 TOOL, WRENCH, OPEN END, 14X17TOOL, WRENCH, OPEN END, 14X17
-
92110D92110-1156 TOOL, WRENCH, BOX, 10MMTOOL, WRENCH, BOX, 10MM
-
9211292112-1001 TOOL, PLIERSTOOL, PLIERS
-
9212692126-004 TOOL, WRENCH, OPEN END, 8X10TOOL, WRENCH, OPEN END, 8X10
