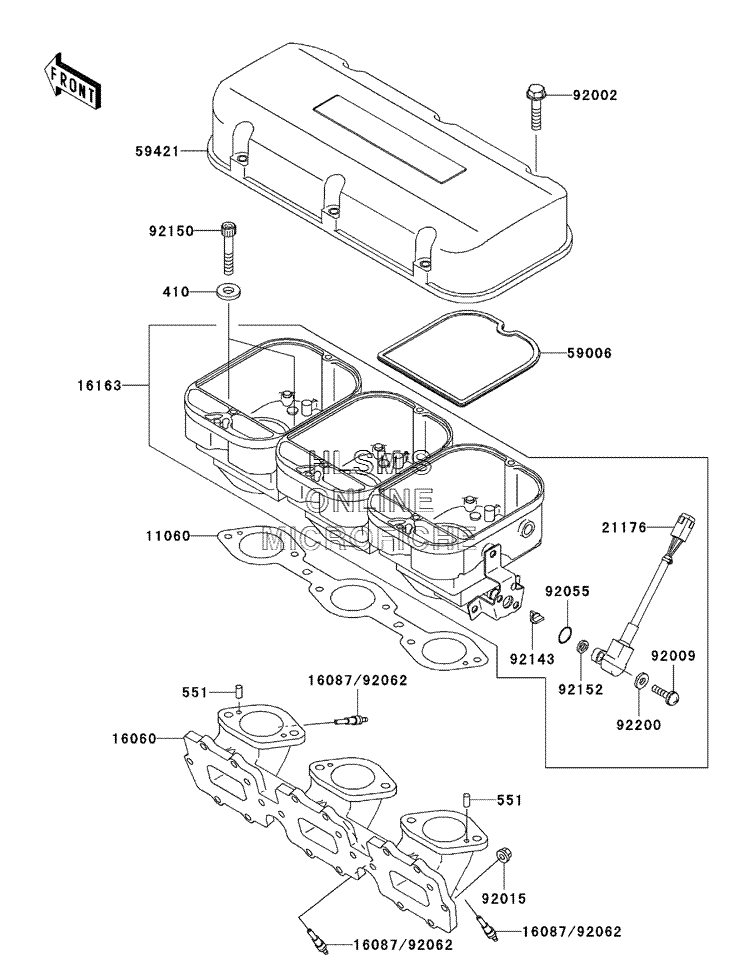

THROTTLE для Kawasaki ULTRA 130 (JH1100-B2) - 2002 года выпуска
-
№АртикулНазвание
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
551551R0408 PIN, DOWELPIN, DOWEL
-
1106011060-3753 GASKET, CARBURETORGASKET, CARBURETOR
-
1606016060-3719 PIPE, INTAKEPIPE, INTAKE
-
1608716087-3713 VALVE, CHECKVALVE, CHECK
-
1616316163-3705 THROTTLE, ASSY.THROTTLE, ASSY.
-
2117621176-3743 SENSORSENSOR
-
5900659006-3716 ARRESTER, FLAMEARRESTER, FLAME
-
5942159421-3729 COVER, INTAKECOVER, INTAKE
-
9200292002-3726 BOLT, 6X30BOLT, 6X30
-
9200992009-3863 SCREW, SENSORSCREW, SENSOR
-
9201592015-3767 NUT, 6MMNUT, 6MM
-
9205592055-1574 O-RING, SENSORO-RING, SENSOR
-
9214392143-1907 COLLARCOLLAR
-
9215092150-1887 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
9215292152-3721 COLLAR, SENSORCOLLAR, SENSOR
-
9220092200-3782 WASHERWASHER
