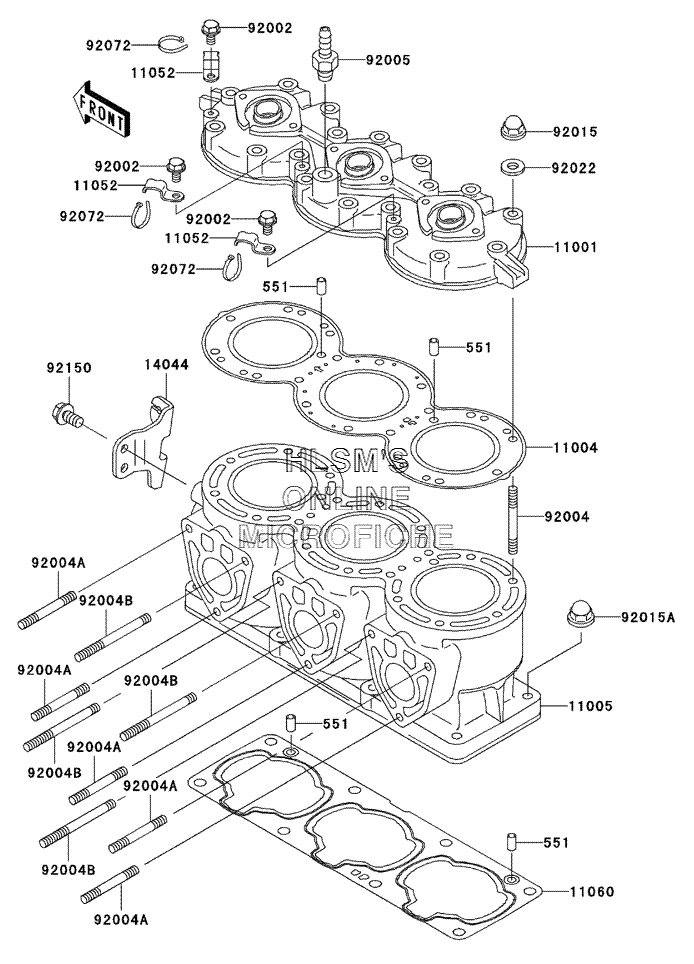

CYLINDER HEAD/CYLINDER для Kawasaki 1100 STX D.I. (JT1100-G1) - 2003 года выпуска
-
№АртикулНазвание
-
551551R0812 PIN, DOWELPIN, DOWEL
-
1100111001-3740 HEAD, CYLINDERHEAD, CYLINDER
-
1100411004-3715 GASKET, HEADGASKET, HEAD
-
1100511005-3752 CYLINDER, ENGINECYLINDER, ENGINE
-
1105211052-3758 BRACKETBRACKET
-
1106011060-3817 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1404414044-3743 HOLDER, CABLE, CYLINDERHOLDER, CABLE, CYLINDER
-
9200292002-3763 BOLT, 6X12BOLT, 6X12
-
9200492004-3733 STUD, 8X56STUD, 8X56
-
92004A92004-3736 STUD, 8X40, L=56STUD, 8X40, L=56
-
92004B92004-3744 STUD, 8X75STUD, 8X75
-
9200592005-3714 FITTINGFITTING
-
9201592015-1371 NUT, CAP, 8MMNUT, CAP, 8MM
-
92015A92015-1649 NUT, 10MMNUT, 10MM
-
9202292022-1964 WASHER, 8.2X18X1.5WASHER, 8.2X18X1.5
-
9207292072-3778 BAND, L=201BAND, L=201
-
9215092150-3722 BOLT, 8X16BOLT, 8X16
