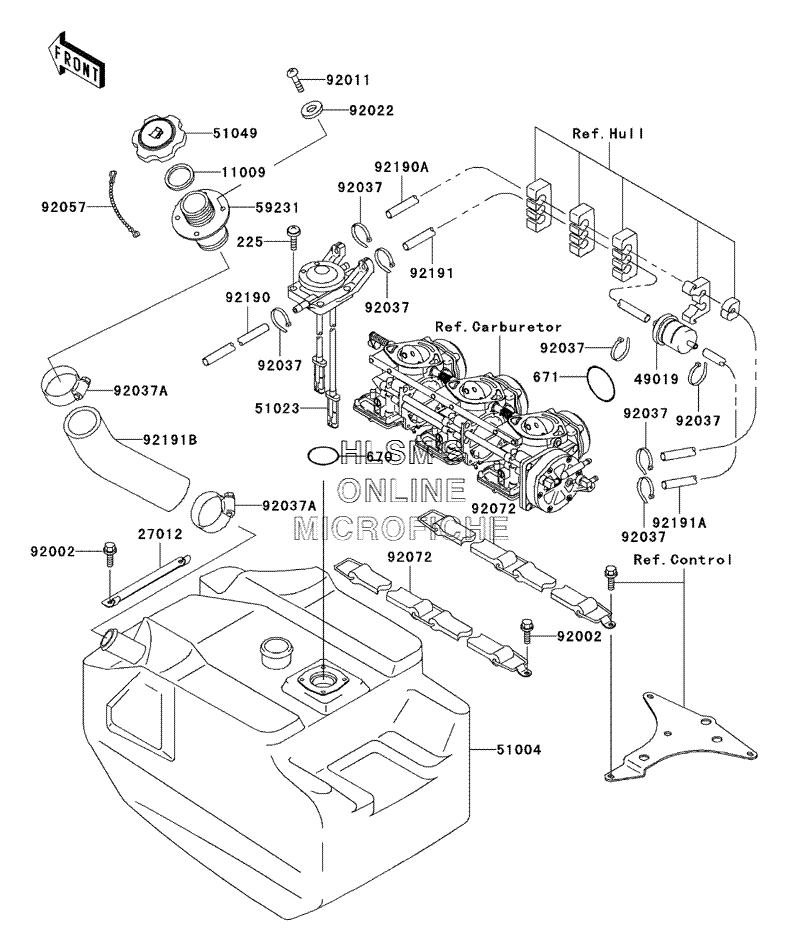

FUEL TANK для Kawasaki 1100 ZXI (JH1100-A8) - 2003 года выпуска
-
№АртикулНазвание
-
225225R0520 SCREW, PAN, WSP, CROS, 5X20SCREW, PAN, WSP, CROS, 5X20
-
670670B3036 O-RING, 36MMO-RING, 36MM
-
671671B2565 O-RING, 65MMO-RING, 65MM
-
1100911009-3020 GASKET, TANK CAPGASKET, TANK CAP
-
2701227012-3766 HOOK, BOW EYEHOOK, BOW EYE
-
4901949019-3712 FILTER, FUELFILTER, FUEL
-
5100451004-3725 TANK, FUELTANK, FUEL
-
5102351023-3734 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5104951049-3714 CAP, TANK, FUELCAP, TANK, FUEL
-
5923159231-3716 FILLER, FUEL TANKFILLER, FUEL TANK
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9201192011-562 SCREWSCREW
-
9202292022-563 WASHERWASHER
-
9203792037-1173 CLAMPCLAMP
-
92037A92037-3009 CLAMPCLAMP
-
9205792057-3704 CHAIN, COVER, L=100CHAIN, COVER, L=100
-
9207292072-3797 BAND, FUEL TANKBAND, FUEL TANK
-
9219092190-3853 TUBE, 5.8X10.8X860TUBE, 5.8X10.8X860
-
92190A92190-3988 TUBE, "RETURN"TUBE, "RETURN"
-
9219192191-3708 TUBE, "ON", 5.8X10.8X270TUBE, "ON", 5.8X10.8X270
-
92191A92191-3715 TUBE, "ON", 5.8X10.8X940TUBE, "ON", 5.8X10.8X940
-
92191B92191-3755 TUBE, FUEL TANK, FILLERTUBE, FUEL TANK, FILLER
