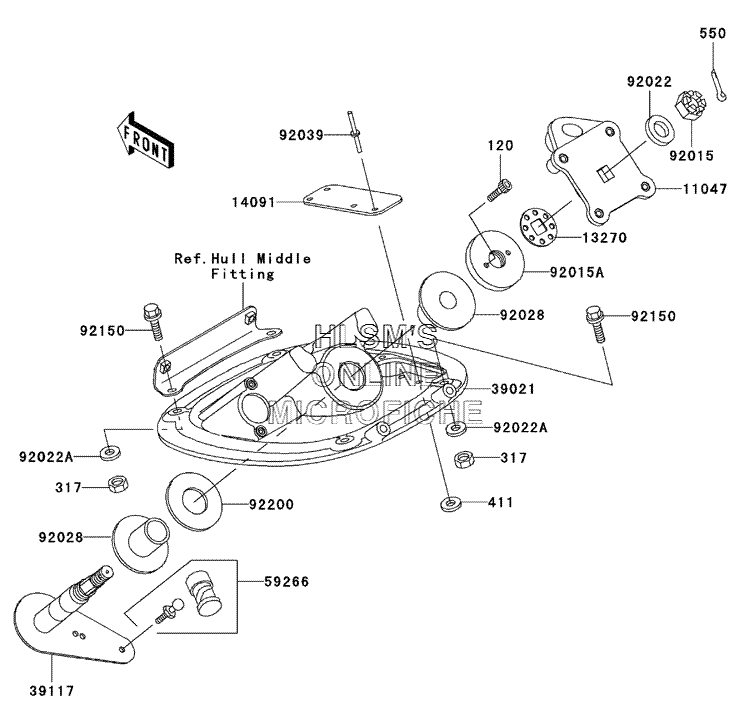

HANDLE POLE для Kawasaki 1200 STX-R (JT1200-A2) - 2003 года выпуска
-
№АртикулНазвание
-
120120R0510 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
317317R0800 NUT, HEX, SMALLNUT, HEX, SMALL
-
411411S0500 WASHER, PLAIN, 5MMWASHER, PLAIN, 5MM
-
550550S3035 PIN, COTTER, 3X35PIN, COTTER, 3X35
-
1104711047-3759 BRACKET, HANDLE HOLDERBRACKET, HANDLE HOLDER
-
1327013270-3808 PLATE, STEERING NUTPLATE, STEERING NUT
-
1409114091-3733 COVER, HANDLE POLE BRACKETCOVER, HANDLE POLE BRACKET
-
3902139021-3712 BRACKET, HANDLE POLEBRACKET, HANDLE POLE
-
3911739117-3713 SHAFT, STRGSHAFT, STRG
-
5926659266-3707 JOINT, BALLJOINT, BALL
-
9201592015-3805 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
92015A92015-3854 NUT, STEERING, 20MMNUT, STEERING, 20MM
-
9202292022-3738 WASHER, 15X34X2.0WASHER, 15X34X2.0
-
92022A92022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
9202892028-3748 BUSHING, STEERINGBUSHING, STEERING
-
9203992039-3719 RIVET, 4.8MMRIVET, 4.8MM
-
9215092150-3803 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9220092200-3718 WASHER, 32.5X70X2WASHER, 32.5X70X2
