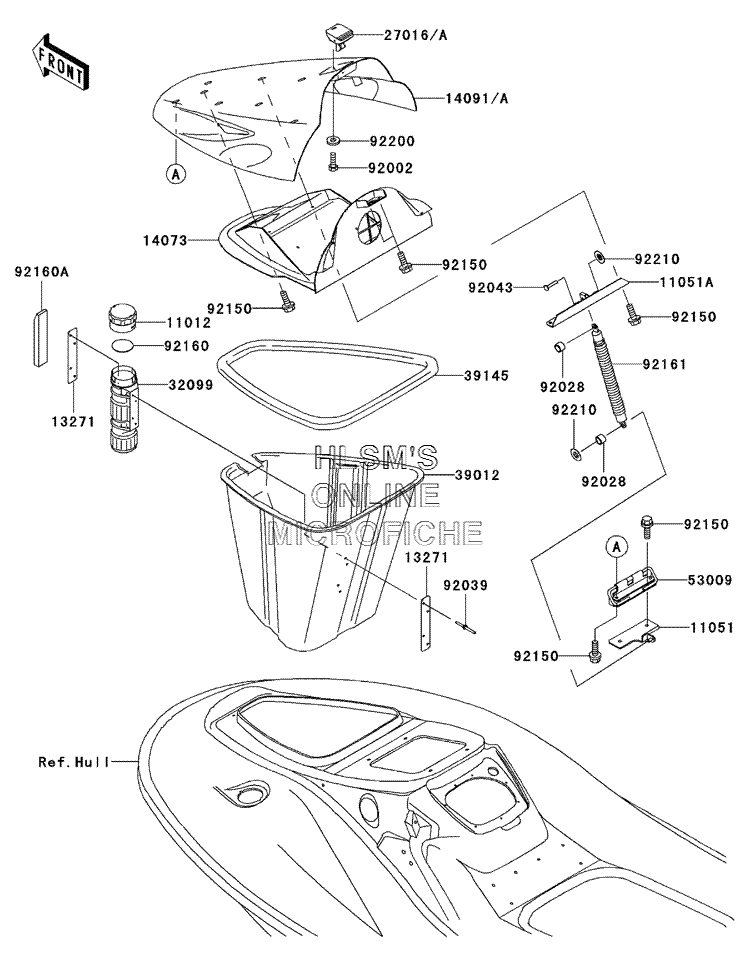

HULL FRONT FITTINGS для Kawasaki 1200 STX-R (JT1200-A2) - 2003 года выпуска
-
№АртикулНазвание
-
1101211012-3766 CAP, FIRE EXTINGUISHERCAP, FIRE EXTINGUISHER
-
1105111051-3741 BRACKETBRACKET
-
11051A11051-3766 BRACKETBRACKET
-
1327113271-3775 PLATE, FIRE EXTINGUISHERPLATE, FIRE EXTINGUISHER
-
1407314073-3777 DUCT, FRONTDUCT, FRONT
-
1409114091-3734-367 COVER, HATCH (C.L.GREEN)COVER, HATCH (C.L.GREEN)
-
27016A27016-3756 LOCK, ASSY., HATCH COVERLOCK, ASSY., HATCH COVER
-
3209932099-3769 CASE, FIRE EXTINGUISHERCASE, FIRE EXTINGUISHER
-
3901239012-3726 CASE, STORAGE, FRONTCASE, STORAGE, FRONT
-
3914539145-3773 TRIM, SEAL, L=1380TRIM, SEAL, L=1380
-
5300953009-3725 HINGE, HATCH COVERHINGE, HATCH COVER
-
9200292002-3747 BOLT, 5X16BOLT, 5X16
-
9202892028-3765 BUSHINGBUSHING
-
9203992039-3755 RIVETRIVET
-
9204392043-3748 PIN, 6X33PIN, 6X33
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
9216092160-3814 DAMPERDAMPER
-
92160A92160-3821 DAMPERDAMPER
-
9216192161-3705 DAMPERDAMPER
-
9220092200-3714 WASHER, 5.9X16X1.5WASHER, 5.9X16X1.5
-
9221092210-3739 NUT, SPEED, 6MMNUT, SPEED, 6MM
