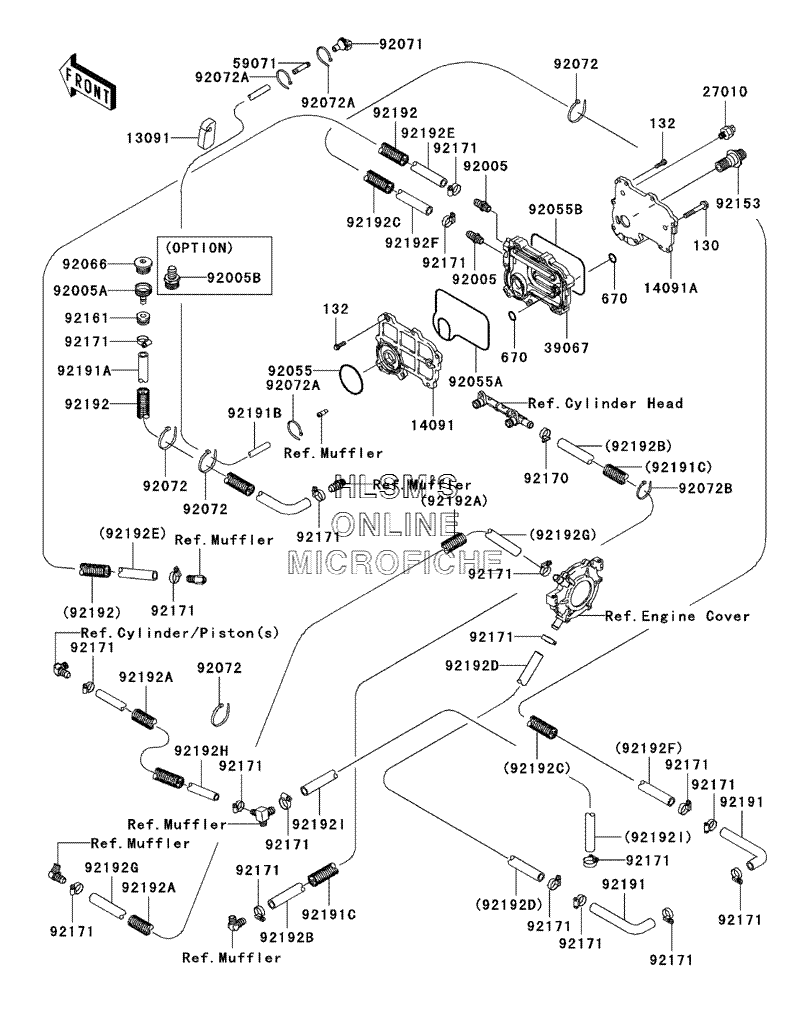

COOLING для Kawasaki STX-15F (JT1500-A1) - 2004 года выпуска
-
№АртикулНазвание
-
130130Y0850 BOLT, FLANGEDBOLT, FLANGED
-
132132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670D2014 O-RING, 14MMO-RING, 14MM
-
1309113091-3712 HOLDERHOLDER
-
1409114091-3755 COVER, INSIDECOVER, INSIDE
-
14091A14091-3756 COVER, OUTSIDECOVER, OUTSIDE
-
2701027010-3779 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3906739067-3704 COOLER, OILCOOLER, OIL
-
5907159071-3764 JOINTJOINT
-
9200592005-3714 FITTINGFITTING
-
92005A92005-3744 FITTING, FLUSHFITTING, FLUSH
-
92005B92005-3748 FITTING, FLUSH (OPT)FITTING, FLUSH (OPT)
-
9205592055-3767 O-RING, 58X3O-RING, 58X3
-
92055A92055-3770 O-RING, INSIDEO-RING, INSIDE
-
92055B92055-3772 O-RING, OUTSIDEO-RING, OUTSIDE
-
9206692066-3784 PLUGPLUG
-
9207192071-3815 GROMMETGROMMET
-
9207292072-1239 BAND, L=188BAND, L=188
-
92072A92072-3871 BAND, L=99BAND, L=99
-
92072B92072-3874 BANDBAND
-
9215392153-3713 BOLT, OIL COOLERBOLT, OIL COOLER
-
9216192161-1331 DAMPERDAMPER
-
9217092170-3747 CLAMPCLAMP
-
9217192171-3714 CLAMPCLAMP
-
9219192191-3785 TUBE, PUMP, HULLTUBE, PUMP, HULL
-
92191A92191-3850 TUBE, CHAMBER, TAIL PIPETUBE, CHAMBER, TAIL PIPE
-
92191B92191-3874 TUBE, 7X12X1590TUBE, 7X12X1590
-
92191C92191-3884 TUBE, PROTECTORTUBE, PROTECTOR
-
9219292192-3711 TUBE, PROTECTORTUBE, PROTECTOR
-
92192A92192-3714 TUBE, PROTECTOR, 19.5X23.8X380TUBE, PROTECTOR, 19.5X23.8X380
-
92192B92192-3716 TUBE, 12X18X630TUBE, 12X18X630
-
92192C92192-3732 TUBE, PROTECTORTUBE, PROTECTOR
-
92192D92192-3739 TUBE, GENERATOR, HULLTUBE, GENERATOR, HULL
-
92192E92192-3740 TUBE, 12X18X1000TUBE, 12X18X1000
-
92192F92192-3741 TUBE, 12X18X1520TUBE, 12X18X1520
-
92192G92192-3742 TUBE, 12X18X480TUBE, 12X18X480
-
92192H92192-3745 TUBE, 12X18X450TUBE, 12X18X450
-
92192I92192-3746 TUBE, WATER MUFFLER, HULLTUBE, WATER MUFFLER, HULL
