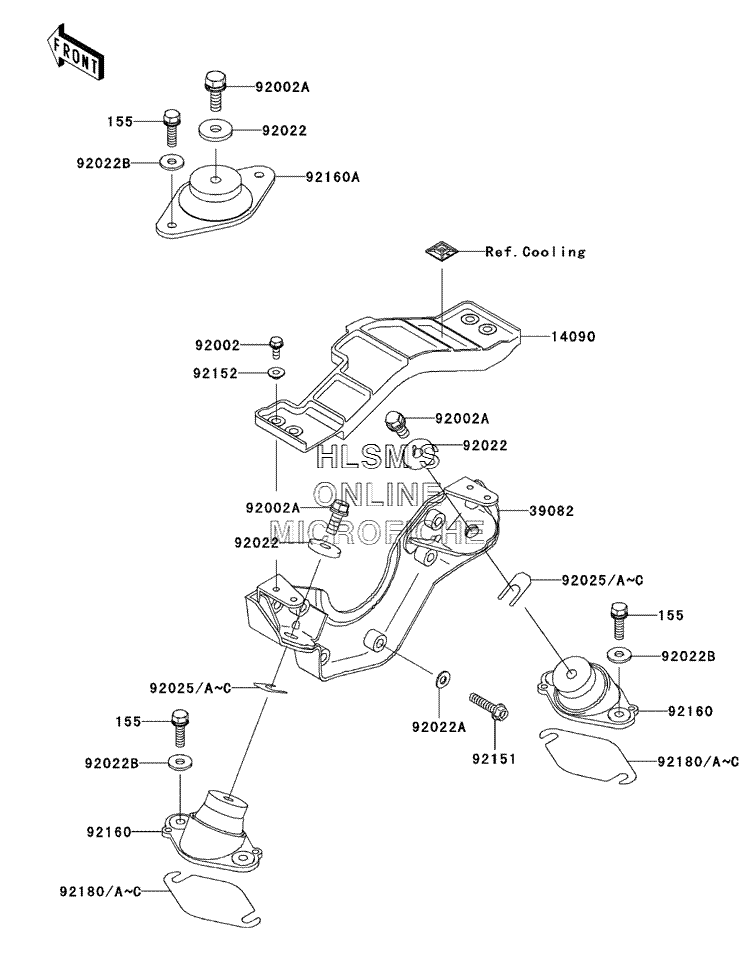

ENGINE MOUNT для Kawasaki 1200 STX-R (JT1200-C2) - 2005 года выпуска
-
№АртикулНазвание
-
155155R0830 BOLT, WSP, SMALL, 8X30BOLT, WSP, SMALL, 8X30
-
1409014090-3815 COVERCOVER
-
3908239082-3720 MOUNT, ENGINEMOUNT, ENGINE
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
92002A92002-3770 BOLT, 10X25BOLT, 10X25
-
9202292022-3023 WASHER, 32X10.5X4WASHER, 32X10.5X4
-
92022A92022-3743 WASHER, 8.2X18X1.5WASHER, 8.2X18X1.5
-
92022B92022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
9202592025-3705 SHIM, T=0.3MMSHIM, T=0.3MM
-
92025A92025-3706 SHIM, T=0.5MMSHIM, T=0.5MM
-
92025B92025-3707 SHIM, T=1.0MMSHIM, T=1.0MM
-
92025C92025-3708 SHIM, T=1.5MMSHIM, T=1.5MM
-
9215192151-3763 BOLT, 8X35BOLT, 8X35
-
9215292152-3712 COLLARCOLLAR
-
9216092160-3838 DAMPER, ENGINE MOUNTDAMPER, ENGINE MOUNT
-
92160A92160-3903 DAMPERDAMPER
-
9218092180-3708 SHIM, T=0.30SHIM, T=0.30
-
92180A92180-3709 SHIM, T=0.50SHIM, T=0.50
-
92180B92180-3710 SHIM, T=1.00SHIM, T=1.00
-
92180C92180-3711 SHIM, T=1.50SHIM, T=1.50
