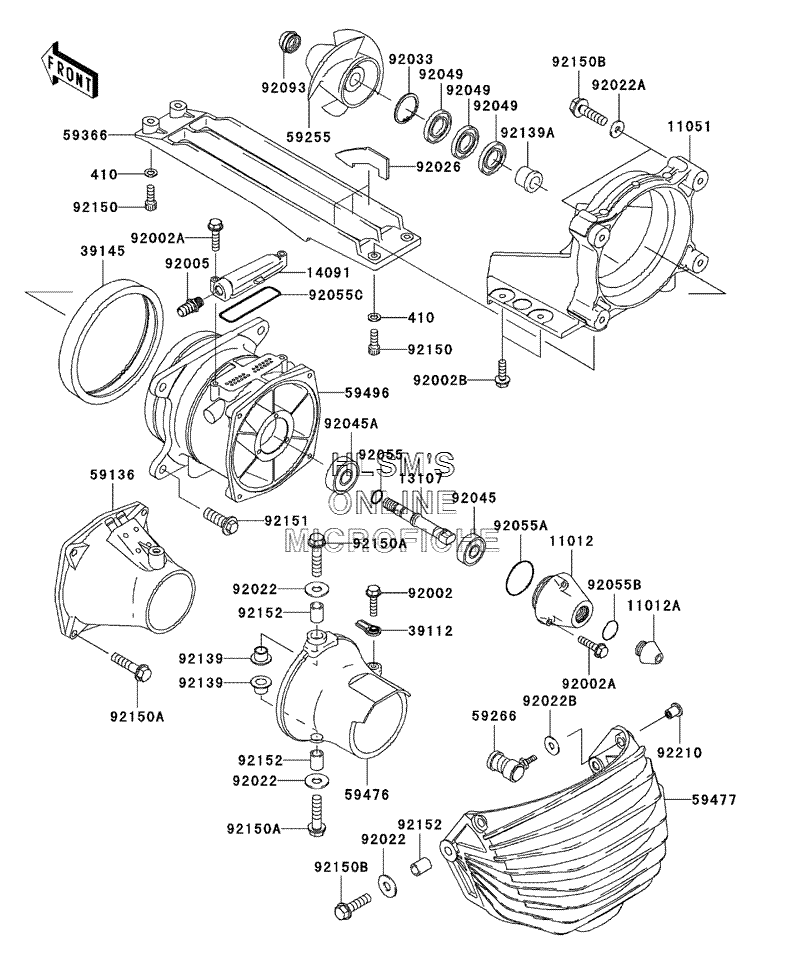

JET PUMP для Kawasaki 900 STX (JT900-E2) - 2005 года выпуска
-
№АртикулНазвание
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
1101211012-3785 CAPCAP
-
11012A11012-3786 CAPCAP
-
1105111051-3763 BRACKETBRACKET
-
1310713107-3752 SHAFT, JETPUMPSHAFT, JETPUMP
-
1409114091-3751 COVER, VANE GUIDECOVER, VANE GUIDE
-
3911239112-3703 RODEND, TIERODEND, TIE
-
3914539145-3742 TRIM, SEALTRIM, SEAL
-
5913659136-3761 NOZZLE, PUMPNOZZLE, PUMP
-
5925559255-3724 IMPELLER, COMPIMPELLER, COMP
-
5926659266-3707 JOINT, BALLJOINT, BALL
-
5936659366-3719 (GRAY)TE(GRAY)TE
-
5947659476-3742 NOZZLE, STRGNOZZLE, STRG
-
5947759477-3710 BUCKET, REVERSEBUCKET, REVERSE
-
5949659496-3756 VANE, GUIDEVANE, GUIDE
-
9200292002-3714 BOLT, 6X25BOLT, 6X25
-
92002A92002-3726 BOLT, 6X30BOLT, 6X30
-
92002B92002-3755 BOLT, 6X20BOLT, 6X20
-
9200592005-3714 FITTINGFITTING
-
9202292022-3026 WASHER, PLAINWASHER, PLAIN
-
92022A92022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
92022B92022-567 WASHERWASHER
-
9202692026-3742 SPACERSPACER
-
9203392033-3730 RING, SNAPRING, SNAP
-
9204592045-3721 BEARING, BALL, 62022RDBEARING, BALL, 62022RD
-
92045A92045-3740 BEARING, BALL, 6303R, 6BEARING, BALL, 6303R, 6
-
9204992049-3739 SEAL, OILSEAL, OIL
-
9205592055-1011 O-RING, OIL FILTERO-RING, OIL FILTER
-
92055A92055-3741 O-RINGO-RING
-
92055B92055-3744 O-RINGO-RING
-
92055C92055-3765 O-RING, 70.2X74.0X1.90O-RING, 70.2X74.0X1.90
-
9209392093-3749 SEALSEAL
-
9213992139-3701 BUSHINGBUSHING
-
92139A92139-3715 BUSHINGBUSHING
-
9215092150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92150A92150-3792 BOLT, 8X35BOLT, 8X35
-
92150B92150-3803 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9215192151-3706 BOLT, 10X30BOLT, 10X30
-
9215292152-3703 COLLAR, 8.2X11.8X15COLLAR, 8.2X11.8X15
-
9221092210-3765 NUT, 6MMNUT, 6MM
