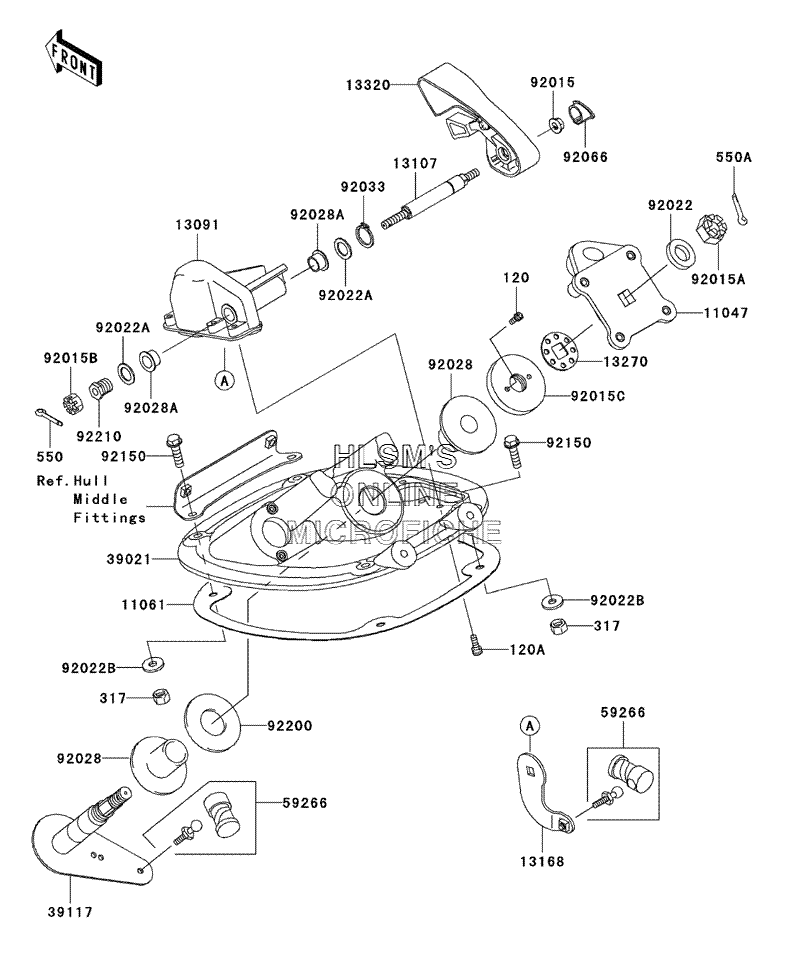

HANDLE POLE для Kawasaki STX-12F (JT1200-D1) - 2005 года выпуска
-
№АртикулНазвание
-
120120R0510 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
120A120R0616 BOLT, SOCKETBOLT, SOCKET
-
317317R0800 NUT, HEX, SMALLNUT, HEX, SMALL
-
550550S2020 PIN, COTTERPIN, COTTER
-
550A550S3035 PIN, COTTER, 3X35PIN, COTTER, 3X35
-
1104711047-3759 BRACKET, HANDLE HOLDERBRACKET, HANDLE HOLDER
-
1106111061-3735 GASKET, HANDLE POLE BRACKETGASKET, HANDLE POLE BRACKET
-
1309113091-3809 HOLDERHOLDER
-
1310713107-3751 SHAFTSHAFT
-
1316813168-3750 LEVER, REVERSELEVER, REVERSE
-
1327013270-3808 PLATE, STEERING NUTPLATE, STEERING NUT
-
1332013320-3716 LEVER, ASSY., REVERSELEVER, ASSY., REVERSE
-
3902139021-3714 BRACKET, HANDLE POLEBRACKET, HANDLE POLE
-
3911739117-3713 SHAFT, STRGSHAFT, STRG
-
5926659266-3707 JOINT, BALLJOINT, BALL
-
9201592015-3709 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-3805 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
92015B92015-3813 NUT, CASTLE, 8MMNUT, CASTLE, 8MM
-
92015C92015-3854 NUT, STEERING, 20MMNUT, STEERING, 20MM
-
9202292022-3738 WASHER, 15X34X2.0WASHER, 15X34X2.0
-
92022A92022-3739 WASHER, 15.5X24X1.5WASHER, 15.5X24X1.5
-
92022B92022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
9202892028-3748 BUSHING, STEERINGBUSHING, STEERING
-
92028A92028-3755 BUSHINGBUSHING
-
9203392033-3710 RING, SNAP, 15MMRING, SNAP, 15MM
-
9206692066-3761 PLUG, REVERSE LEVERPLUG, REVERSE LEVER
-
9215092150-3803 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9220092200-3718 WASHER, 32.5X70X2WASHER, 32.5X70X2
-
9221092210-3703 NUT, 8MMNUT, 8MM
