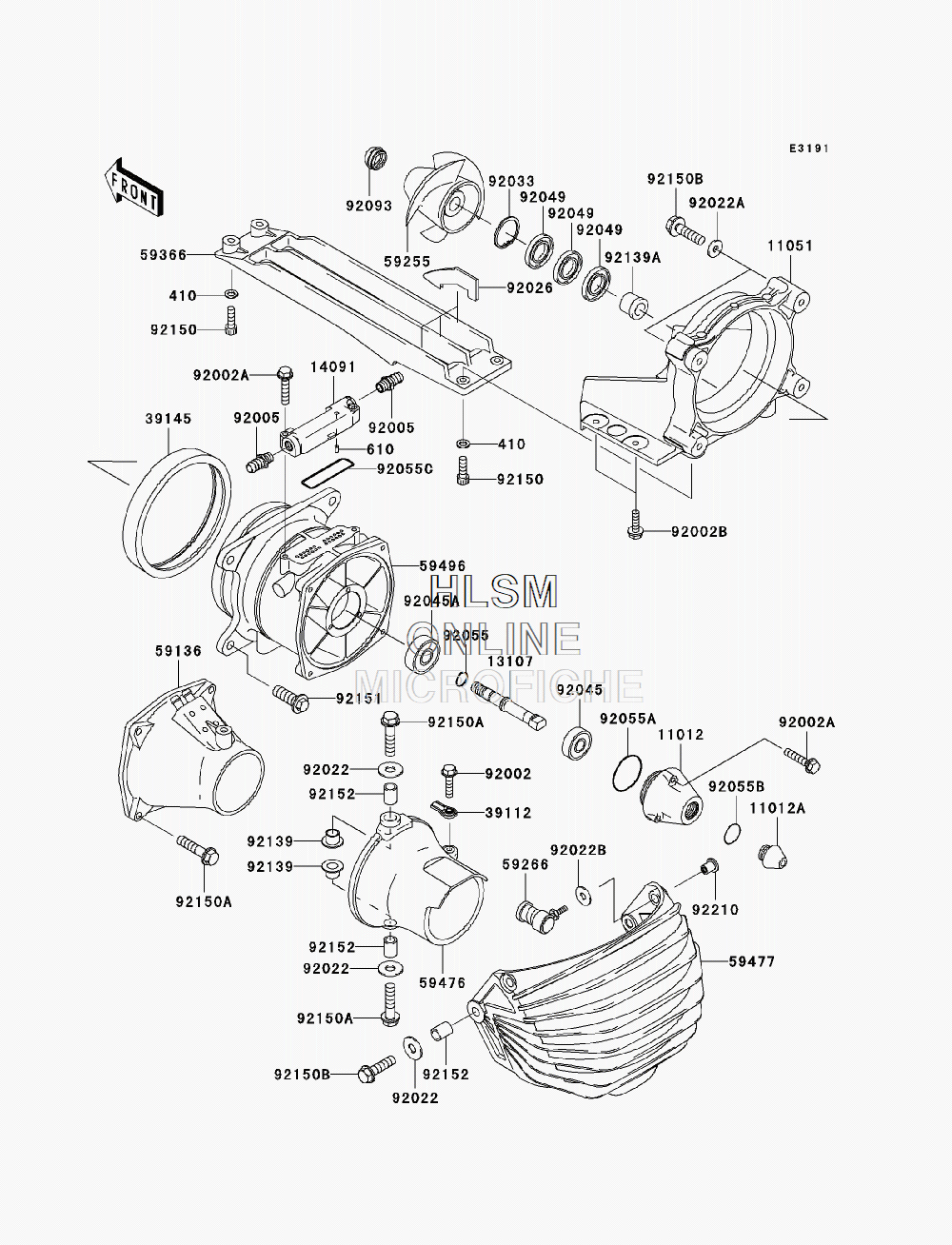

JET PUMP для Kawasaki STX-15F (JT1200D6F) - 2006 года выпуска
-
№АртикулНазвание
-
1101211012-3785 CAPCAP
-
11012A11012-3786 CAPCAP
-
1105111051-3763 BRACKETBRACKET
-
1310713107-3752 SHAFT,JETPUMPSHAFT,JETPUMP
-
1409114091-3817 COVER,VANE GUIDECOVER,VANE GUIDE
-
3911239112-3703 RODEND-TIERODEND-TIE
-
3914539145-3742 TRIM-SEALTRIM-SEAL
-
5913659136-3760 NOZZLE-PUMPNOZZLE-PUMP
-
5925559255-3729 IMPELLER-COMPIMPELLER-COMP
-
5926659266-3707 JOINT-BALLJOINT-BALL
-
5936659366-3719 GRATEGRATE
-
5947659476-3743 NOZZLE-STRGNOZZLE-STRG
-
5947759477-3712 BUCKET-REVERSEBUCKET-REVERSE
-
5949659496-3756 VANE-GUIDEVANE-GUIDE
-
9200292002-3714 BOLT,6X25BOLT,6X25
-
92002A92002-3726 BOLT,6X30BOLT,6X30
-
92002B92002-3755 BOLT,6X20BOLT,6X20
-
9200592005-3714 FITTINGFITTING
-
9202292022-3026 WASHER,PLAINWASHER,PLAIN
-
92022A92022-3744 WASHER,8.4X23X2.5WASHER,8.4X23X2.5
-
92022B92022-567 WASHERWASHER
-
9202692026-3742 SPACERSPACER
-
9203392033-3730 RING-SNAPRING-SNAP
-
9204592045-0112 BEARING-BALL,62022RDBEARING-BALL,62022RD
-
92045A92045-3740 BEARING-BALL,6303R-6BEARING-BALL,6303R-6
-
9204992049-3739 SEAL-OILSEAL-OIL
-
9205592055-1011 RING-O,13.0X1.9RING-O,13.0X1.9
-
92055A92055-3741 RING-ORING-O
-
92055B92055-3744 RING-ORING-O
-
92055C92055-3765 RING-O,70.2X74.0X1.90RING-O,70.2X74.0X1.90
-
9209392093-3749 SEALSEAL
-
9213992139-3701 BUSHINGBUSHING
-
92139A92139-3715 BUSHINGBUSHING
-
9215092150-3775 BOLT,SOCKET,6X18BOLT,SOCKET,6X18
-
92150A92150-3792 BOLT,8X35BOLT,8X35
-
92150B92150-3803 BOLT,FLANGED,8X30BOLT,FLANGED,8X30
-
9215192151-3706 BOLT,10X30BOLT,10X30
-
9215292152-3703 COLLAR,8.2X11.8X15COLLAR,8.2X11.8X15
-
9221092210-3789 NUT,6MMNUT,6MM
-
410410S0600 WASHER-PLAIN-SMALL,6MMWASHER-PLAIN-SMALL,6MM
-
610610A0408 ROLLER,4X8ROLLER,4X8
