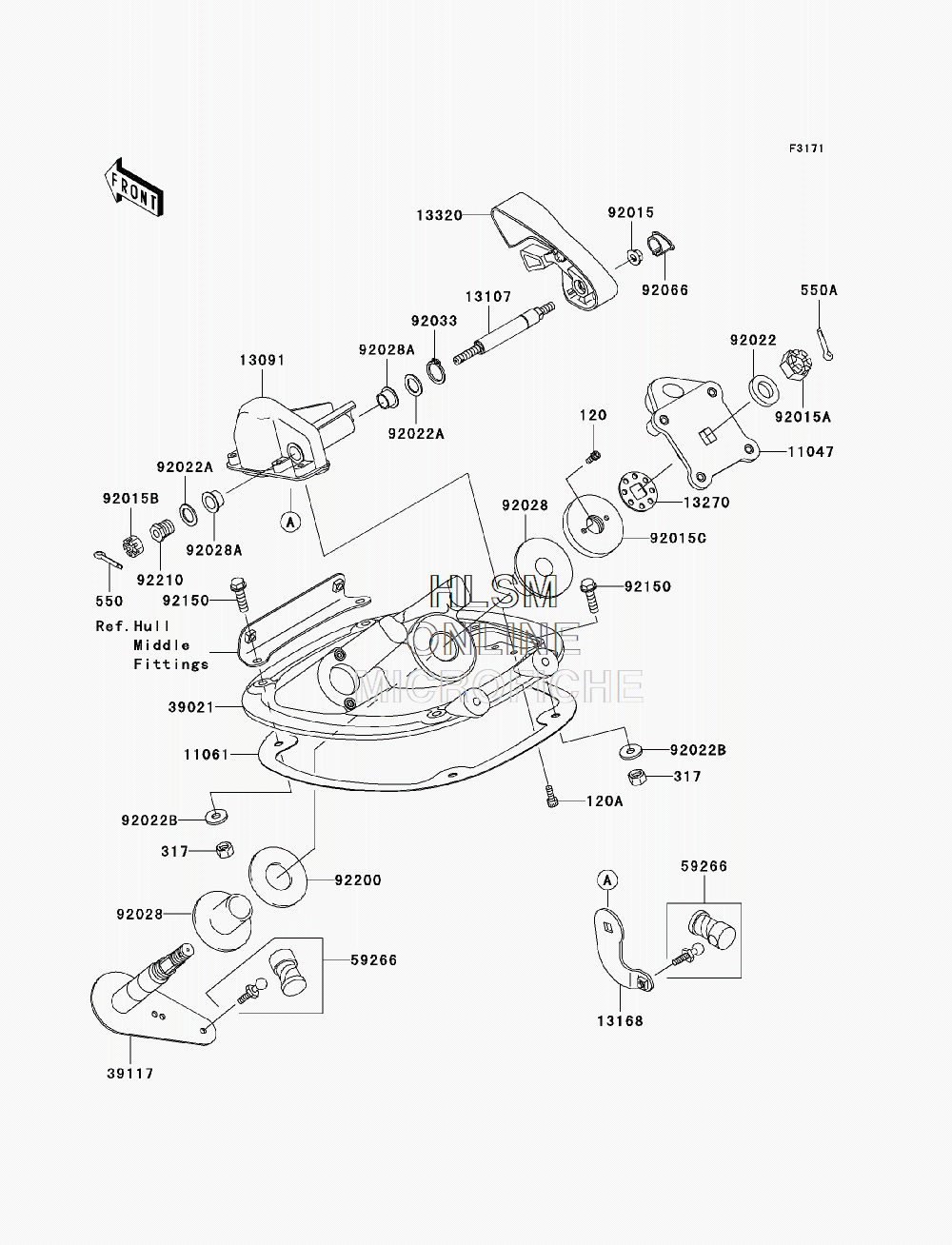

HANDLE POLE для Kawasaki STX-15F (JT1500A8F) - 2008 года выпуска
-
№АртикулНазвание
-
120120R0510 BOLT-SOCKET,5X10BOLT-SOCKET,5X10
-
120A120R0616 BOLT-SOCKET,6X16BOLT-SOCKET,6X16
-
317317R0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
550550S2020 PIN-COTTERPIN-COTTER
-
550A550S3035 PIN-COTTER,3X35PIN-COTTER,3X35
-
1104711047-3759 BRACKET,HANDLE HOLDERBRACKET,HANDLE HOLDER
-
1106111061-3735 GASKET,HANDLE POLE BRACKETGASKET,HANDLE POLE BRACKET
-
1309113091-3809 HOLDERHOLDER
-
1310713107-3751 SHAFTSHAFT
-
1316813168-3750 LEVER, REVERSELEVER, REVERSE
-
1327013270-3808 PLATE,STEERING NUTPLATE,STEERING NUT
-
1332013320-3716 LEVER-ASSY, REVERSELEVER-ASSY, REVERSE
-
3902139021-3714 BRACKET-HANDLE POLEBRACKET-HANDLE POLE
-
3911739117-3713 SHAFT-STRGSHAFT-STRG
-
5926659266-3707 JOINT-BALLJOINT-BALL
-
9201592015-3709 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
92015A92015-3805 NUT,CASTLE,14MMNUT,CASTLE,14MM
-
92015B92015-3813 NUT,CASTLE,8MMNUT,CASTLE,8MM
-
92015C92015-3854 NUT,STEERING,20MMNUT,STEERING,20MM
-
9202292022-3738 WASHER,15X34X2.0WASHER,15X34X2.0
-
92022A92022-3739 WASHER,15.5X24X1.5WASHER,15.5X24X1.5
-
92022B92022-3744 WASHER,8.4X23X2.5WASHER,8.4X23X2.5
-
9202892028-3748 BUSHING,STEERINGBUSHING,STEERING
-
92028A92028-3755 BUSHINGBUSHING
-
9203392033-3710 RING-SNAP,15MMRING-SNAP,15MM
-
9206692066-3761 PLUG, REVERSE LEVERPLUG, REVERSE LEVER
-
9215092150-3803 BOLT,FLANGED,8X30BOLT,FLANGED,8X30
-
9220092200-3718 WASHER,32.5X70X2WASHER,32.5X70X2
-
9221092210-3703 NUT,8MMNUT,8MM
